Запчасти Bobcat 900s HEATER KIT (Fresh Air) ACCESSORIES & OPTIONS

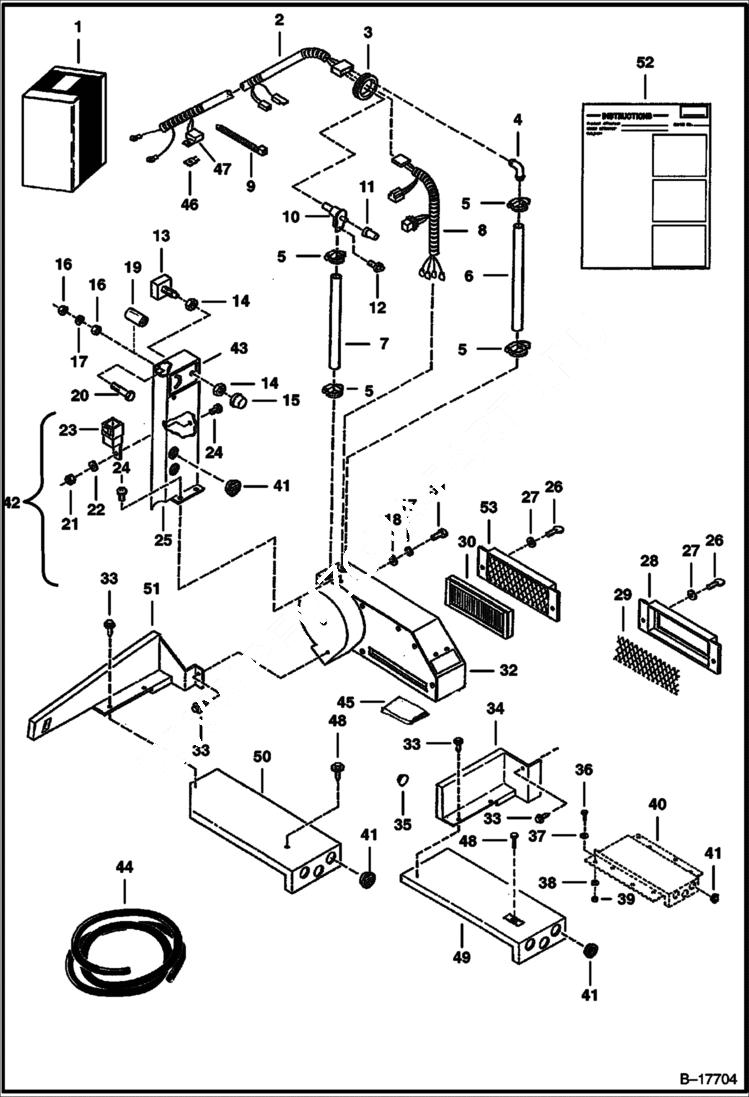

Схема запчастей Bobcat 900s - HEATER KIT (Fresh Air) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

KIT See Illustration HEATER PLUMBING KIT/ B14429 NLA - Ref. 2-50 & 52 - Was 6709836 - A

1

6713379

KIT Ref. 2-18, 20-33, 36-39, 42-48 & 50-52

2

6660894

HARNESS W/Ref. 46 & 47

3

6512067

GROMMET

4

6660879

ELBOW

5

42H10

HOSECLAM5

6

HOSE NLA - 17'' (431,8 mm) long - Order Ref. 44

7

HOSE NLA - 19'' (482,6 mm) long - Order Ref. 44

8

6660892

HARNESS

9

6660883

TIE

10

6654191

VALVE

11

6660881

KNOB water valve

12

6660884

SCREW

13

6660659

SWITCH fan

14

6624435

NUT

14

6624435

NUT for 6713379 heater kit - Was 6670143 - A

15

6660822

KNOB

16

61D4

NUT 5

16

6670142

NUT for 6713379 heater kit

17

4E4

WASHER

18

25E14

WSHR

19

6660893

SPACER for NLA 6709836 heater kit

20

17C424

BOLT Use W/Ref. 19

20

17C416

BOLT Use W/O Ref. 19

20

6670144

BOLT for 6713379 heater kit

21

6641065

NUT

22

6641072

WASHER

23

6651975

SWITCH relay

23

6670141

SWITCH relay - for 6713379 heater kit

24

6641066

SCREW

25

6660864

COVER

26

6660930

THUMBSCREW

27

25E10

WASHER

28

COVER NLA - Order Ref. 53 - Was 6660886 - A

29

SCREEN NLA - Order Ref. 53 - Was 6660891 - A

30

6660880

FILTER, AIR HEATER CAB

31

17C412

BOLT 5

32

HEATER See Illustration HEATER/ D2181

33

6705792

SCREW

34

6660888

VENT side - Use W/2.32'' (58,9 mm) wide heater blower housing - for NLA 6709836 heater kit

34

6708914

VENT side - Use W/1.95'' (49,5 mm) wide heater blower housing - for NLA 6709836 heater kit

35

6657719

PLUG 0.75'' dia hole

36

17C516

BOLT

37

25E16

WSHR

38

4E5

WASHER

39

61D5

NUT

40

VENT NLA - under seat - Order Ref. 49 for NLA 6709836 heater kit - Was 6708915 - A

41

6660885

LOUVER

42

6660890

COVER ASSY. Ref. 21-23, 25 & 43

43

6660865

DECAL fan & valve

44

889269

HOSE BULK/FT bulk - Sold Per Foot

45

MOULDING NLA

46

6702444

FUSE 25A 5

47

6657306

CAP, FUSE

48

84G3120

SCREW

49

6711732

DUCT under seat - for NLA 6709836 heater kit

50

6669652

DUCT under seat - for 6713379 heater kit

51

6669650

VENT side - for 6713379 heater kit

52

6724384

INSTRUCTIONS

53

6674151

COVER

Выбрано товаров: 60
