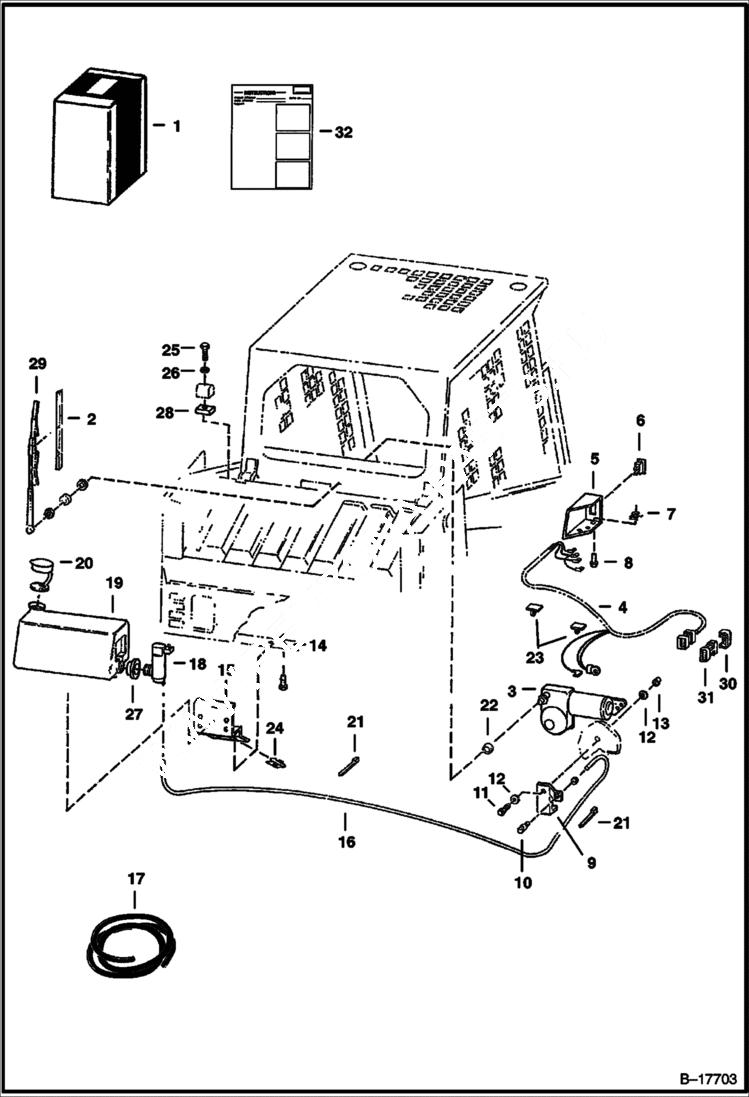

Запчасти Bobcat 900s EUROPEAN ACCESSORIES (Rear Wiper) ACCESSORIES & OPTIONS

1

6596179

KIT

2

6665688

BLADE

3

6665602

MOTOR

4

HARNESS NLA - W/2-pin connector - Order 6712260 harness, Ref. 30 & 31 - Was 6708285 - A

4

6712260

HARNESS W/10-pin connector - w/ (2) diodes

4

3675725

DIODE

5

6708280

MOUNT switch

6

6668817

SWITCH rocker - Was 6665706 - A

7

7160765

NUT Was 6660988 - A

8

35C412

BOLT

9

6708286

MOUNT nozzle

10

6666767

NOZZLE Was 6664555 - A

11

17C514

BOLT Was 35C000514B - B

12

25E15

WASHER

13

83D5

NUT 5

14

37C616

BOLT Was 84G003710B - B

15

6595829

MOUNT tank - Was 6708044 - B

16

HOSE NLA - 108'' (2743,2 mm) long - Order Ref. 17

17

6708310

HOSE, BULK/FT 100 clear - 0.154'' ID - sold per foot

18

6664554

PUMP, WIPER WASHER

19

6708035

TANK

20

6665605

CAP

21

6610510

TIE

22

6708069

BUSHING

23

6640704

CLAMP

24

55D6

NUT

25

73G428

BOLT

26

1EM60

WASHER

27

6666766

GROMMET

28

6597172

SPACER

29

6665687

ARM Was 1744552B - B

30

6641179

CONNECTOR 2-pin

31

6641180

LOCK Use W/ 2-pin connector

32

6724236

INSTRUCTIONS
