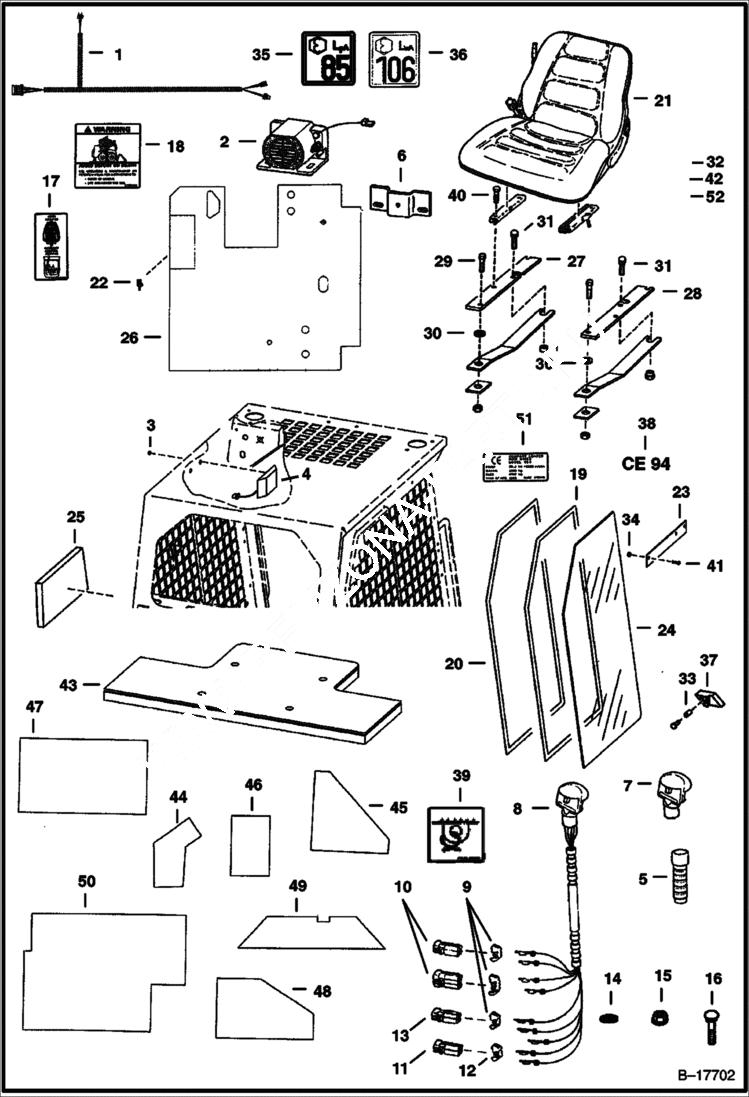

Запчасти Bobcat 900s EUROPEAN ACCESSORIES ACCESSORIES & OPTIONS

1

6596066

HARNESS

2

6660294

HORN

3

6660294

HORN Was 6664221 - B

4

6680326

LIGHT Dome - Was 6664368 - A

5

6702621

GRIP

6

6704641

MOUNT Horn

7

6680415

HANDLE Was 6705920 - A

8

6680412

HANDLE ASSY L.H. multi switch handle - Also Order Ref. 9-13 - Was 6707976 - A

8

6640690

PIN

8

6640691

PIN

8

6641176

SEAL

8

6662257

PIN

9

6641180

LOCK Use W/ 2-pin connector

9

6640700

LOCK 3-pin

10

6641179

CONNECTOR 2-pin

10

6640699

CONNECTOR 3-pin

11

6664599

CONNECTOR 3-pin triangle

12

6664800

LOCK 3-pin triangle

13

6641178

CONNECTOR 2-pin

14

25E13

WASHER 5

15

59D4

NUT 5

16

84G2516

BOLT

17

6703727

DECAL horn/aux

18

6702255

DECAL warning

19

6631548

LOOP Scotchmate

20

6631549

HOOK Scotchmate

21

6632388

SEAT Suspension

22

6664310

CLIP

23

6700875

RETAINER Window

24

6702731

WINDOW, CAB cab

25

6703451

INSULATION side

26

6706903

INSULATION cab back

27

6712183

MOUNT seat - Was 6708503 - A

28

6712186

MOUNT seat - Was 6708504 - A

29

17C508

BOLT

30

25E16

WSHR

31

37C516

BOLT

32

84G3112

BOLT 5

33

6563612

BUSHING

34

83D4

NUT 10

35

6579385

DECAL noise

36

6579406

DECAL noise

37

6579652

DOOR STOP

38

6707814

DECAL CE

39

6595014

DECAL tow hook - Was 6707867 - A

40

17C512

BOLT 5

41

35C410

BOLT 5

42

84G3724

BOLT

43

6715095

INSULATION seat pan - Was 6706983 - A

44

6596774

INSULATION crossmember - 85 DBA

45

6596775

INSULATION crossmember - 85 DBA

46

6596776

INSULATION hood - 85 DBA

47

6596777

INSULATION upright - 85 DBA

48

6596778

INSULATION upright - 85 DBA

49

6596779

INSULATION hood - 85 DBA

50

6596780

INSULATION tailgate - 85 DBA - also order decals 6579511 , 6595547 & 6596296 if insulation covers up existing decals

51

6709802

DECAL data

52

6712146

WASHER
