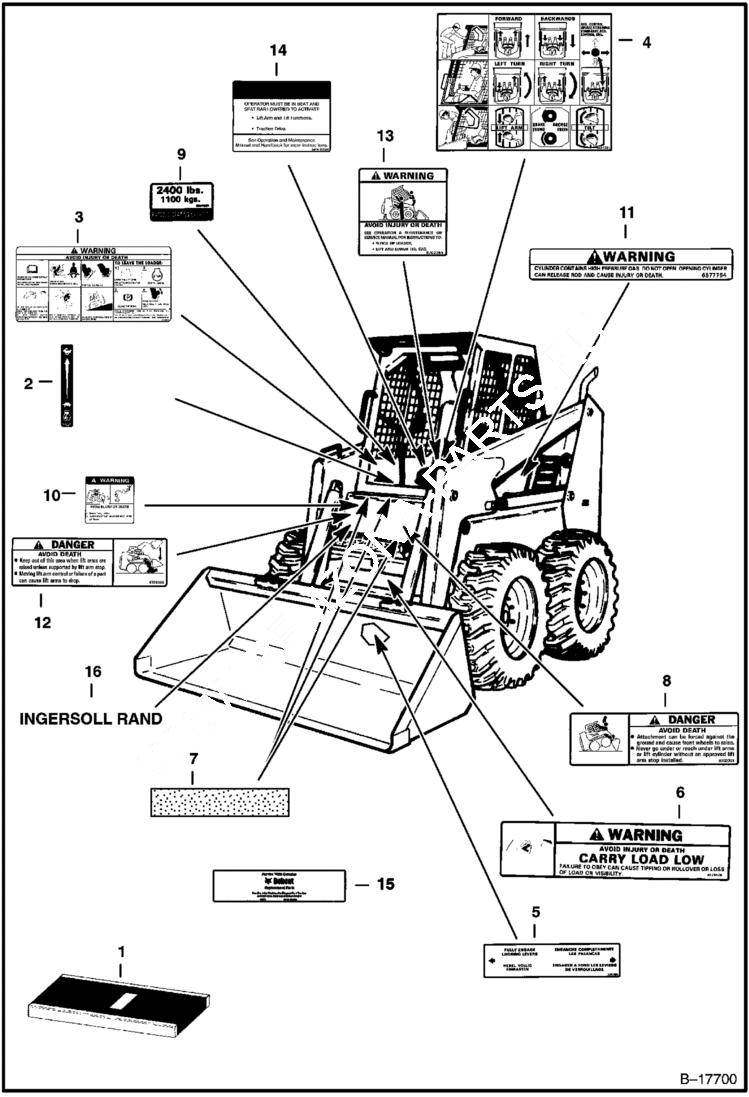

Запчасти Bobcat 900s DECALS ACCESSORIES & OPTIONS

1

6596223

KIT See Illustration DECALS/ B17701 Ref. 3-20 - Also Includes Ref. 2-16 on this Illustration

2

6735140

DECAL, THROTTLE Was 6557565 - A

3

6579510

DECAL warning

4

6708294

DECAL operations

5

6561383

DECAL, OPERATION 5 Bob-Tach locking levers

6

6579528

DECAL, WARNING carry load low

7

6567651

SAFETY TREAD 3.5'' (88,9mm) x 25'' (635mm) - Main Frame

7

6567652

SAFETY TREAD 5.5'' (139,7mm) x 25'' (635mm) - Pedal Mount

7

6567653

SAFETY TREAD 8.85'' (244,8mm) x 21.65 (549,9mm) - Lift Arm Stop

8

6702301

DECAL, DANGER

9

6531653

DECAL capacity

10

6710358

DECAL warning - no riders

11

6577754

DECAL, WARNING 5 gas spring

12

6702302

DECAL, DANGER

13

6706809

DECAL lift lock

14

6707255

DECAL operating instructions - seat bar

15

6565200

DECAL, FILTER

16

DECAL NLA - Ingersoll Rand - Was 6727310 - A
