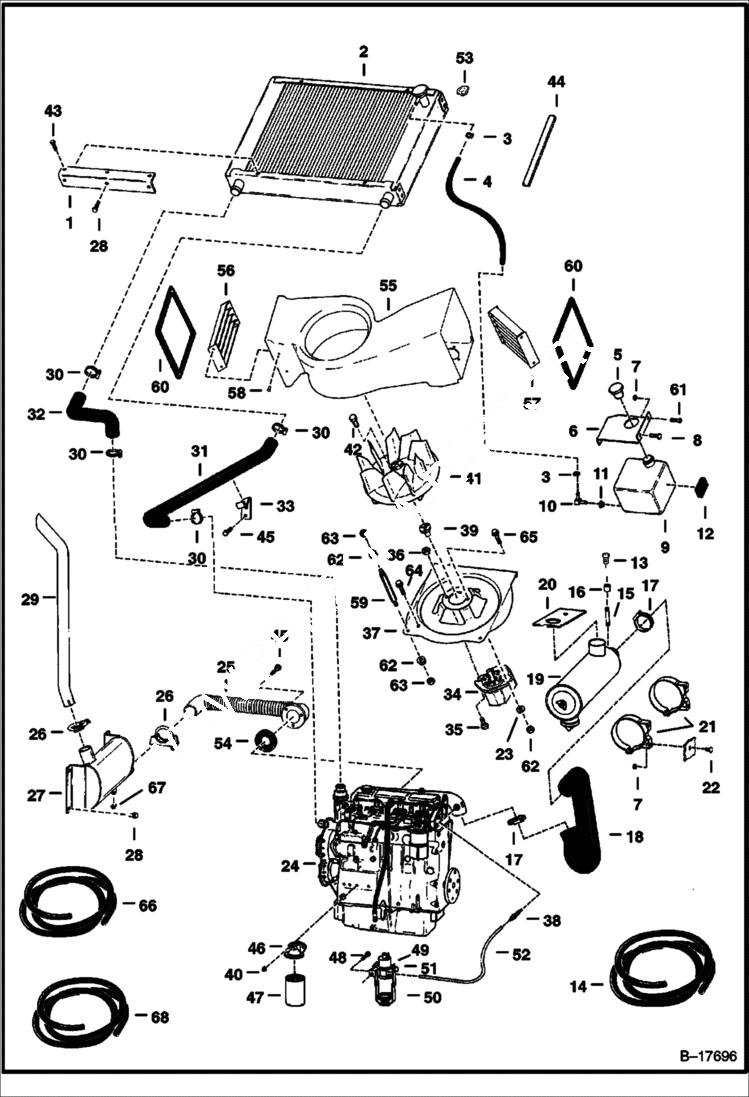

Запчасти Bobcat 900s ENGINE & ATTACHING PARTS POWER UNIT

1

6567805

ANGLE

2

6660004

RADIATOR

3

42HS04

CLAMP, HOSE Was 6515575 - A

4

6667189

HOSE bulk - Sold Per Foot - Was 6577822 - A

5

6702797

CAP

6

6567418

BRACKET

7

61D6

NUT 5

8

17C616

BOLT 5

9

6567170

TANK coolant

10

6553412

ELBOW

11

6553411

BUSHING

12

6559444

BLOCK rubber

13

6630366

INDICATOR

14

6513152

SEAL bulk - sold per foot

15

5K116

NIPPLE

16

75F1

COUPLING

17

42H40

HOSECLAM5 Was 942792B - A

18

6567287

HOSE

19

6630233

AIR CLEANER See Illustration AIR CLEANER/ B7509

20

6567736

SEAL

21

6516191

BAND Was 871610B - A

22

7C612

BOLT

23

27E6

WASHER 5

24

6630171

ENGINE See Illustration ENGINE & GASKET KIT/ B17698

25

6660318

PIPE exhaust

26

711215

CLAMP

27

6569982

MUFFLER, SPARK ARRESTOR spark arrestor

28

84G3712

BOLT 5

29

6567008

PIPE exhaust

30

42H32

HS CLAMP5 Was 42H000024B - B,D

31

6567203

HOSE

32

6567202

HOSE

33

6568178

SUPPORT

34

MOTOR See Illustration COOLING FAN MOTOR/ C3061

35

17C720

BOLT

36

83D7

NUT

37

MOUNT NLA - Order 6595149 & 2 each of Ref. 23, 62 & 65 - Was 6595149 - A

37

MOUNT NLA - Also Order 2 each of Ref. 23, 62 & 65 - Was 6595149 - A

38

6511139

ATOMIZER

38

6511139

ATOMIZER

39

6577233

BUSHING

40

3725329

NUT

41

6577322

FAN

42

17C528

BOLT

43

35C508

BOLT

44

SEAL NLA - 78'' (1981,2 mm) Long - Order Ref. 68

45

18C616

BOLT 5

46

6511767

HEAD filter

47

6511766

OIL FILTER See Illustration CYLINDER BLOCK/ B8096 OIL FILTER

48

17C508

BOLT

49

SOLENOID NLA - starter fluid - Was 6630588 - A

49

6632167

LINK exten. - To use 11 oz. ether can

50

CLAMP NLA - Was 6656124 - A

50

51

ELBOW NLA - Was 6656125 - A

51

52

HOSE NLA - nylon - 38'' (965,2mm) Long - Order Ref. 66

53

6665383

CAP

54

6505237

GASKET

55

6576975

HOUSING

56

6577137

LOUVER L.H.

57

6577140

LOUVER R.H

58

6630207

RIVET 5

59

6577605

SPACER

60

SEAL NLA - 4' (1219,2 mm) long - Order Ref. 14

61

9G616

SCREW

62

83D6

NUT 5

62

83D6

NUT 5

63

85D6

NUT, 5

64

35C616

BOLT 5

65

37C624

BOLT

66

6631921

HOSE bulk - Sold Per Foot - Was 6567965 - B

67

866104

PLUG Brass 3/8''

68

6511855

SEAL self adhesive - bulk - sold per foot
