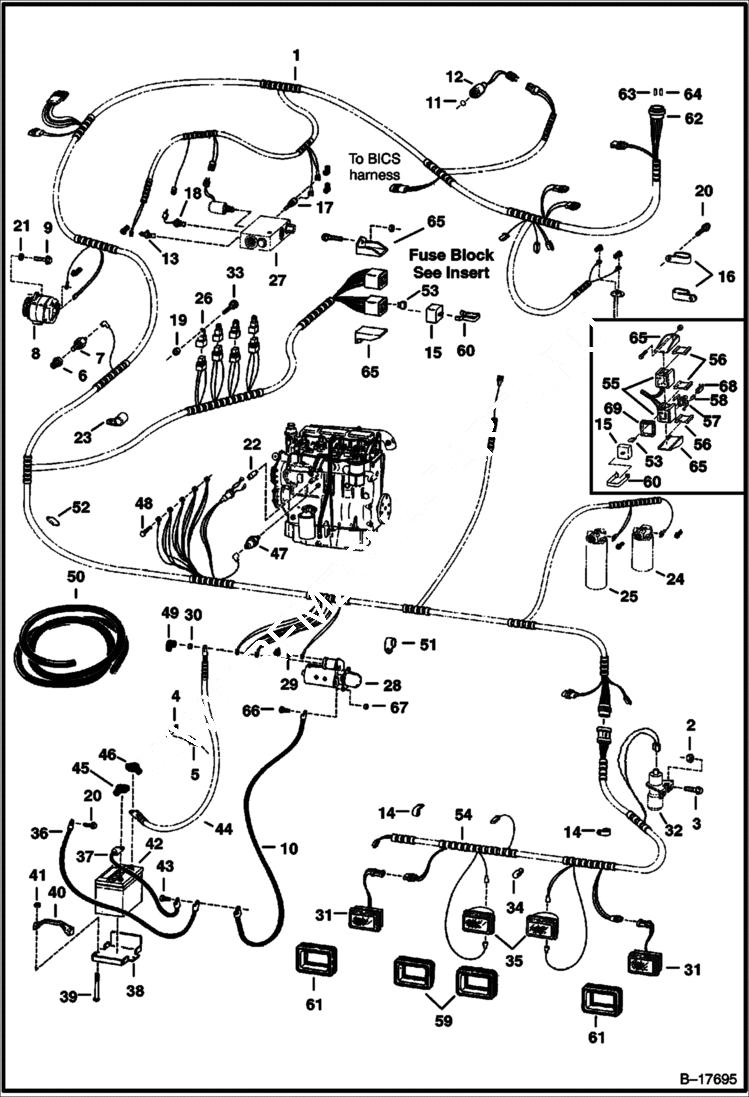

Запчасти Bobcat 900s ENGINE ELECTRICAL ELECTRICAL SYSTEM

1

6597224

HARNESS engine - Was 6594891 - A

2

57D5

NUT

3

35C516

BOLT 10

4

6567596

MOUNT

5

6630586

CLIP

6

19F4

BUSHING

7

6658818

SENDER eng temp - threaded connector

8

ALTERNATOR See Illustration ALTERNATOR/ C3312

9

35C512

BOLT

10

6572161

CABLE ground

11

79K6

O RING 10

12

6657267

SWITCH hydro. press.

13

6631047

SWITCH hydro. temp. & radiator temp. - 200 degrees

14

30H35

CLAMP 10

15

6665358

COVER , FUSE

16

31H46

CLAMP

17

6664440

SWITCH hydro. temp. - 100 degrees

18

6657082

SWITCH hydro. temp. - 230 degrees

19

61D4

NUT 5

20

84G3712

BOLT 5

21

27E5

WASHER

22

909477

VALVEFUEL See Illustration FUEL INJECTOR SYSTEM/ B7844 ELEC. SHUT-OFF

23

30H60

CLIP

24

FILTER ASSY See Illustration HYDROSTATIC OIL FILTER/ C2818A

25

FILTER ASSY See Illustration HYDROSTATIC OIL FILTER/ C2818

26

6670312

SWITCH, MAGNETIC starter relay - Was 6665005 - A

27

BLOCK See Illustration PORT BLOCK/ C2883

28

6651664

STARTER See Illustration STARTER/ D2119

28

STARTER See Illustration STARTER/ E2395

29

4DM5

NUT

30

4DM10

NUT

31

6707789

LIGHT

31

6666568

BULB 21W

31

6667887

BULB 21/5W

31

6668007

SCREW

31

6668010

LENS

32

SOLENOID See Illustration ENGINE & ATTACHING PARTS/ B17696 NLA - starter fluid - Was 6630588 - A

33

10C412

BOLT

34

898731

1156 BULB

35

6665922

LAMP Ref. 34 - Was 6661353 - A

35

6665431

SOCKET threaded bulb

36

6563025

CABLE negative

37

6576189

CABLE negative

38

6561733

MOUNT battery

39

6569623

BOLT

40

6569203

CLAMP

41

59D5

NUT 5

42

6665427

BATTERY, DRY 950 AMP

43

18C520

BOLT

44

6576188

CABLE less conduit

45

6599652

BOOT

46

2356058

BOOT

47

6631010

SWITCH, PRESS OIL ENG eng. oil press.

48

18C508

BOLT

49

6560172

COVER

50

6563505

CONDUIT bulk - Sold Per Foot

51

30H50

CLIP

52

6567537

DIODE

53

6707620

FUSE, 10A MINI 5

53

6707621

FUSE, 15A MINI 5

53

6707623

FUSE, 25A MINI 5

54

6594892

HARNESS light

55

6665356

BLOCK fuse - W/Ref. 69

55

SEAL NSS - green seal

56

6665411

WEDGE red

57

6665357

LOCK yellow

58

6650107

SEAL

59

6703796

MOUNT light

60

6708437

CLIP fuse cover

61

6705980

MOUNT Was 6705774 - D

62

6664585

CONNECTOR Also Order Ref. 63 & 64 - Was 6665682 - A

63

6664828

SOCKET

64

6664041

SOCKET

65

6665369

MOUNT fuse

66

17C644

BOLT

67

85D6

NUT, 5 Was 87D000006B - A

68

PIN NLA - female

68

6668719

PIN female - for 14 gauge wire

68

6668720

PIN female - Use W/ 14 ga wire

69

6671528

SEAL green square
