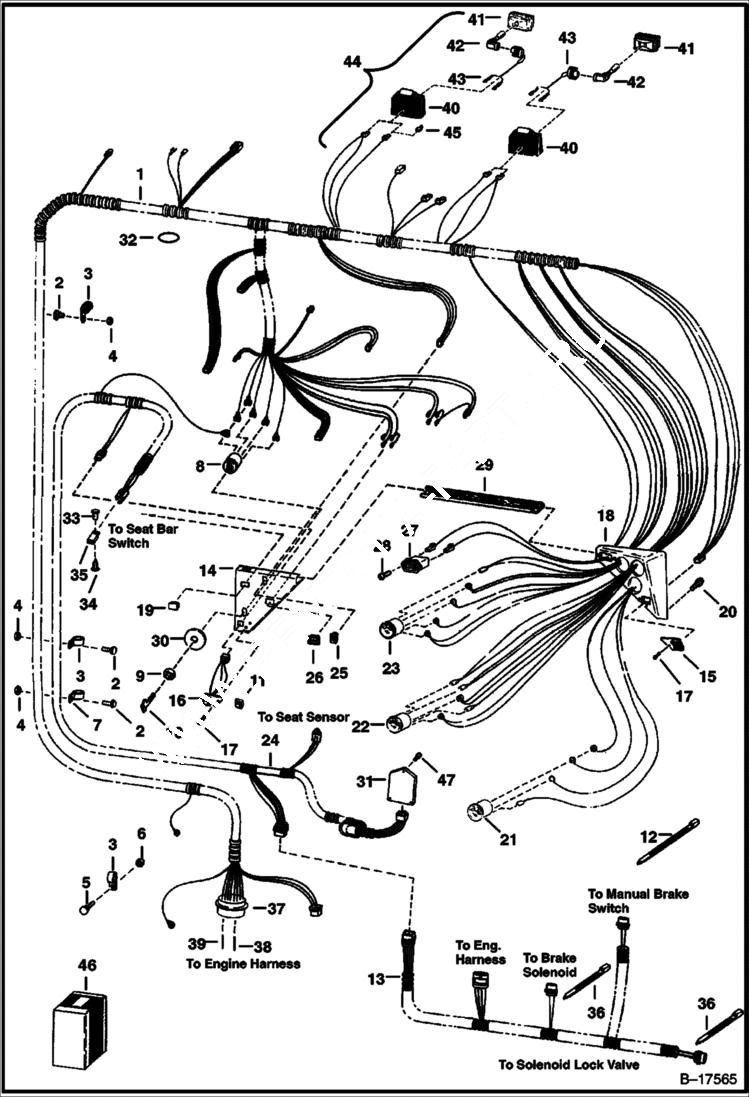

Запчасти Bobcat 900s CAB ELECTRICAL CIRCUITRY ELECTRICAL SYSTEM

1

6707665

HARNESS

2

35C410

BOLT 5

3

30H56

CLIP Was 30H000054B - B

4

83D4

NUT 10

5

10C412

BOLT

6

83D4

NUT 10 Was 896364B - A

7

30H29

CLAMP

8

SWITCH See BTI289 NLA - ignition - W/Ref. 9 & 6512809 - Order Ref. 46 - Was 6519592 - A

8

6665606

SWITCH ignition

9

6598721

NUT for NLA/6519592

9

6674202

NUT for 6665606

10

6512809

KEY for NLA/6519592

10

KEY NLA - for 6665606 switch - includes two keys W/ring - Order 6693241 - Was 6709527 - A

10

6693241

KEY 10 ignition - single key W/O ring

11

6660594

BUTTON on/off

12

6610510

TIE

13

6706876

HARNESS

13

6706876

HARNESS

13

6710313

HARNESS

13

6710313

HARNESS

14

6708425

PANEL L.H. - Was 6707658 - A

15

6665314

PLUG Was 6719038 - A

16

SWITCH NLA - traction override

16

6667905

SWITCH traction override

16

6673005

SWITCH traction/ seat sensor override

17

6669225

BOLT Use W/ 6706995 switch - Was 58G000408B - A

18

6708497

PANEL R.H.

19

6665315

SWITCH Headlight

20

6702642

SCREW

21

GAUGE NLA - eng temp - W/clamp - Order 6669663 gauge & 6679027 clamp - Was 6658817 - A

21

6669663

GAUGE eng temp - W/O clamp

22

VOLTMETER NLA - W/clamp - Order 6669664 voltmeter & 6679027 clamp - Was 6658819 - A

22

6669664

VOLTMETER W/O clamp

23

FUEL GUAGE NLA - W/clamp - Order 6669665 gauge & 6679027 clamp - Was 6658820 - A

23

6669665

FUEL GUAGE W/O clamp

24

6706828

HARNESS

24

6706828

HARNESS

24

6710312

HARNESS

24

6710312

HARNESS

25

6665698

SWITCH Ether Start

26

6636018

LIGHT indicator

27

6664886

HOURMETER

28

65G608

SCREW

29

6578780

CROSSMEMBER

30

6707664

PLATE brake start - for NLA/6519592

30

6709027

PLATE brake start - for 6665606

31

CONTROLLER NLA - Order Kit 6716457 - Was 6668767 - A

31

6673002

CONTROLLER Use in kit 6716457

32

6707674

PLUG round - plugs 1.20' (32,5 mm) dia. hole in cab - Was 6665500 - A

33

6665321

RIVET plastic male

34

6665322

RIVET plastic female

35

6665000

CLIP

36

6665527

TIE never modify

37

6664584

CONNECTOR Also Order Ref. 38 & 39 - Was 6665683 - A

38

6664827

PIN

39

6664040

PIN

40

6578824

HOUSING Rubber

41

6649478

BULB HOUSING

42

6667934

BULB Was 6650111 - A

43

6578528

HARNESS Light

44

6577801

LIGHT W/Ref. 40-43

45

6519548

CONNECTOR

46

6724282

SWITCH KIT Ref. 8,10 & 30

47

91G412

SCREW
