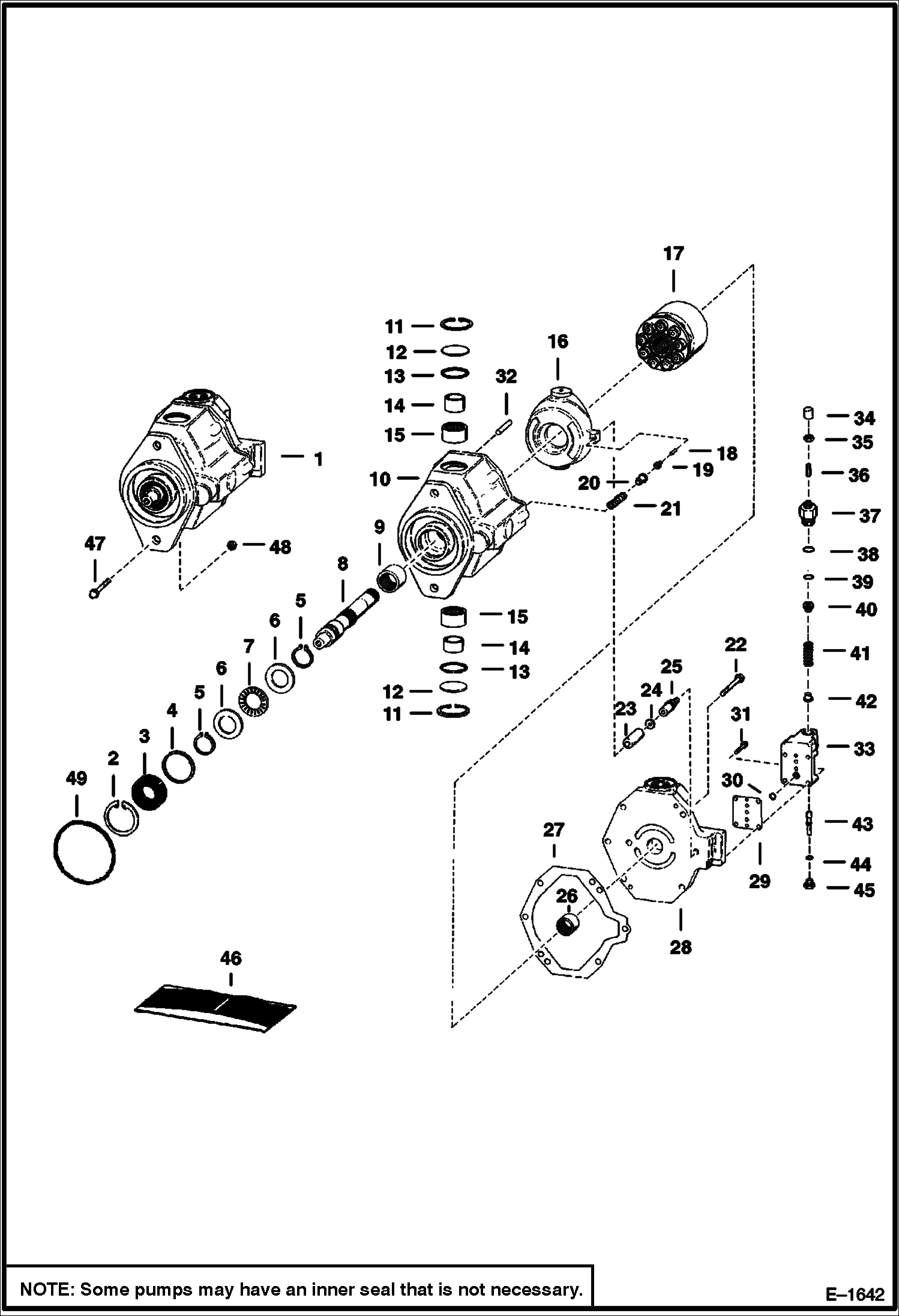

Запчасти Bobcat 900s HYDROSTATIC PUMP (Cessna - Implement) HYDROSTATIC SYSTEM

1

6646782

PUMP See Illustration GEAR PUMP/ D1704 W/gear pump

1

6631490

PUMP Less Gear Pump

2

661416

SNAP RING

3

6512136

SEAL

4

6510586

WASHER

5

710822

RING

6

5208601

WASHER thrust

7

5200262

BRG

8

6631487

SHAFT

9

6519737

BEARING

10

6510500

HOUSING W/Ref. 9

11

661415

SNAP RING

12

6519740

COVER

13

25K30114

O RING 10

14

6510590

RACE

15

896539

BRG

16

6631486

YOKE

17

6631485

ROTATING group

18

668312

PIN ROLL

19

5290309

BUTTON

20

5290308

COLLAR

21

5293737

SPRING

22

17C620

BOLT

23

6631483

CONTROL

24

6632448

SPACER

25

6631555

PIN guide

26

669053

BEARING U

27

6510070

GASKET

28

6631488

PLATE

29

5290318

GSKT

30

58K10

O RING 10

31

74G420

CAP SCREW Was 12G000420B - A

32

1319439

ROLL PIN

33

6631484

COMPENSATOR W/Ref. 34-45

34

CAP NLA - Was 6631559 - A

35

8D4

NUT Was 6631561 - A

36

6648293

SCREW

37

6631560

CAP adjustment

38

25K30028

O RING 10

39

25K30018

O RING 10

40

6631556

FOLLOWER

41

5290323

SPRING

42

6631557

CAP

43

SPOOL NSS

44

O-RING NSS

45

6631563

PLUG W/Ref. 44

46

6631567

SEAL KIT Ref. 2, 3, 5, 11,13, 27, 29, 30, 38, 39 & 44

46

6631568

KIT compensator repair - Ref. 34 - 42

47

93G840

BOLT

48

83D8

NUT 5

49

25K20400

O RING 10
