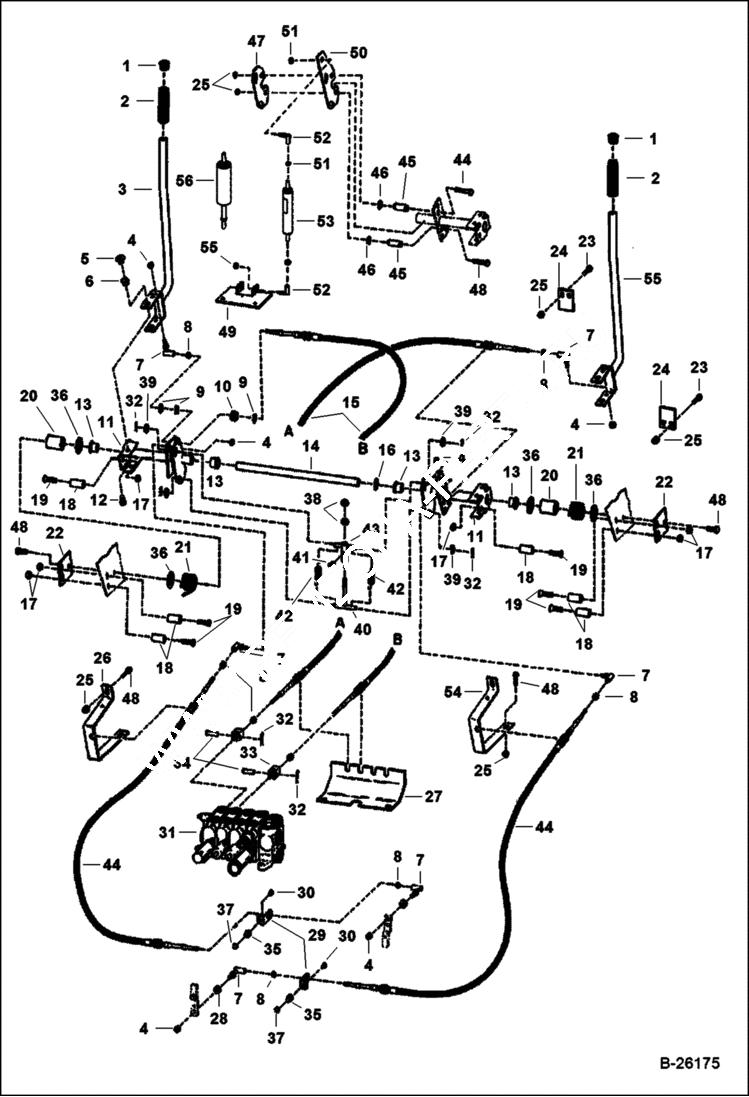

Запчасти Bobcat 900s HAND CONTROLS HYDROSTATIC SYSTEM

1

228744

PLUG

2

6513963

GRIP

3

6576167

LEVER L.H.

4

86D4

NUT

5

6559479

NUT

6

6632559

BUSHING

7

6631036

JOINT

8

8D4

NUT

9

9J34

SNAP RING

10

6599643

BEARING

11

6577529

BRACKET

12

17C612

BOLT 5

13

6512027

BUSHING

14

6567146

SHAFT

15

6631012

CABLE 43'' long - front & rear aux.

16

6599741

WASHER wave

17

85D6

NUT, 5

18

6567145

STOP

19

6587766

BOLT

20

6568834

BUSHING

21

6568817

SPRING

22

6567139

MOUNT

23

37C616

BOLT carriage

24

6571669

STOP

25

57D6

NUT 5

26

6596258

MOUNT Was 6595372 - A

27

6589707

MOUNT

28

25E13

WASHER 5

29

6703626

MOUNT L.H. - Was 6575653 - A

30

6703627

MOUNT R.H.

31

6631419

VALVE See Illustration CONTROL VALVE/ E1656

32

1306637

CLIP

33

6567709

CLEVIS

34

4F5062

PIN

35

6704616

LEVER

36

6558680

WASHER plastic

37

85D5

NUT 5

38

7D8

NUT 5

39

25E17

WASHER 5

40

6501755

ROD

41

11H25

FITTING10

42

6584584

SPRING

43

6501756

SLIDE

44

6665705

CABLE 37.5'' long

45

6589730

SPACER

46

6592766

U-BOLT

47

35C610

BOLT 5

48

17C616

BOLT 5

49

6577539

BRACKET

50

6577526

BRACKET

51

62D6

NUT 5

52

6599744

BALL JOINT

53

GAS SPRING NLA - Japan Option - Order Ref. 56 - Was 6649551 - A

54

6596259

MOUNT Was 6595373 - A

55

6589735

LEVER R.H.

56

7188108

GAS SPRING
