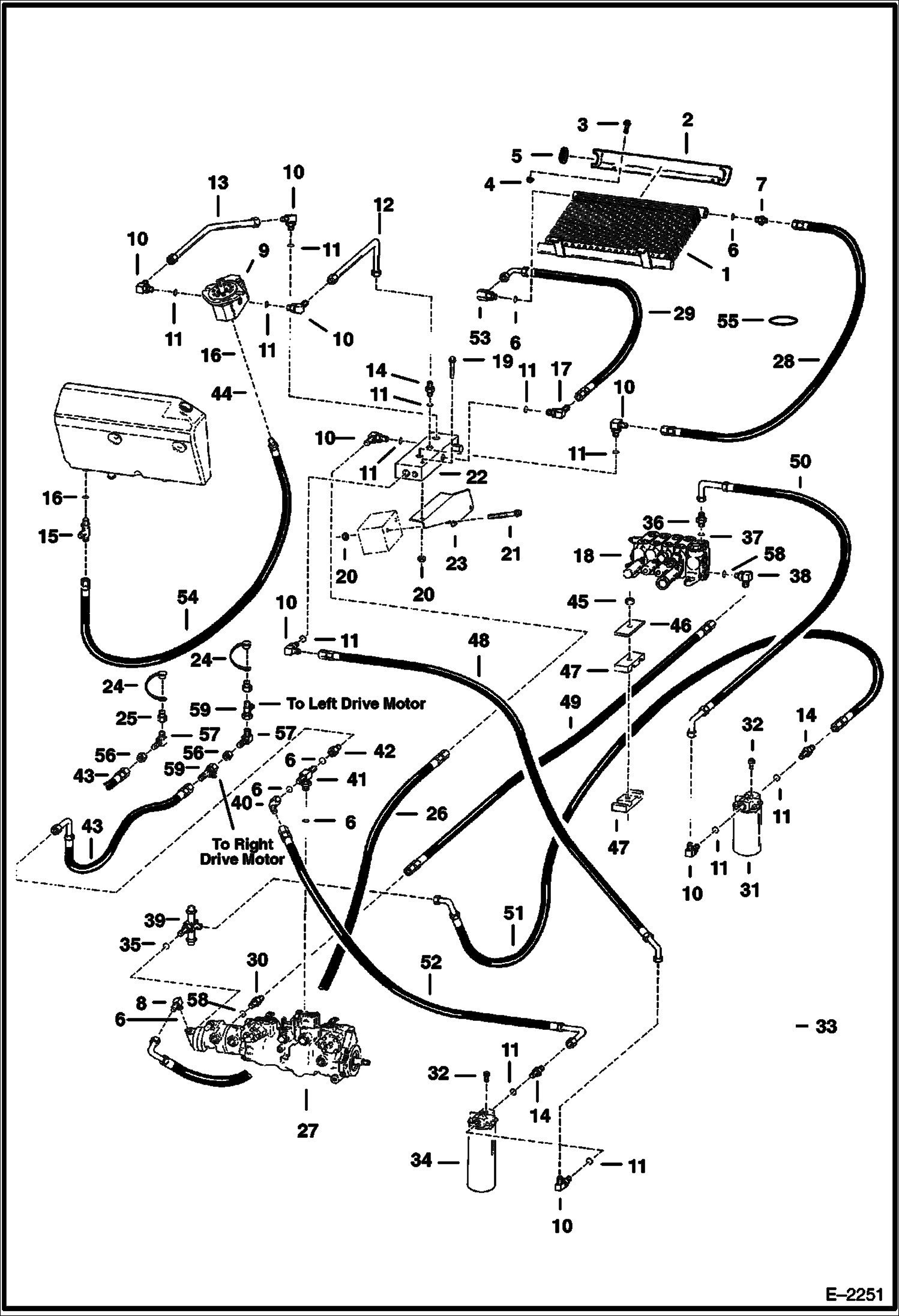

Запчасти Bobcat 900s HYDROSTATIC CIRCUITRY HYDROSTATIC SYSTEM

1

6631476

OIL COOLER

2

MOUNT NLA - Was 6568680 - A

3

35C616

BOLT 5

4

57D6

NUT 5

5

6511983

GROMMET

6

79K10

O RING 10

7

6800567

ADAPTER Was 730963B - B

8

17KB1210

FITTING, HYD ELBOW Was 6714901 - A

9

MOTOR See Illustration COOLING FAN MOTOR/ C3061

10

85K8

ELBOW W/Ref. 11 - Was 17K000008B - B

11

75K12

O'RING 10 Was 79K000012B - B

12

6596196

TUBE

13

6595334

TUBE Was 6596195 - A

14

83K8

ADAPTER Was 15K000008B - B

15

88K5

TEE Was 21K000005B - B

16

75K6

O-RING Was 79K000006B - B

17

86K8

ELBOW 45 degrees - Was 18K000008B - B

18

VALVE See Illustration CONTROL VALVE/ E1656

19

35C640

BOLT 10

20

55D6

NUT

21

31C656

BOLT

22

6577268

BLOCK See Illustration PORT BLOCK/ C2883

23

6595230

BRACKET

24

6630367

CAP

25

6646635

COUPLER Diagnostic

26

6595312

HOSE

27

PUMP See Illustration HYDROSTATIC PUMP/ C3376

28

6595317

HOSE

29

6595316

HOSE

30

6800566

ADAPTER W/Ref. 58

31

FILTER ASSY See Illustration HYDROSTATIC OIL FILTER/ C2818A HYDROSTATIC

31

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long - Was 6630977 - B

32

17C610

BOLT

33

58K21

O RING 10

34

FILTER ASSY See Illustration HYDROSTATIC OIL FILTER/ C2818 HYDROSTATIC

35

79K16

O RING 10

36

6800576

ADAPTER Was 6569138 - B

37

79K14

O RING 10

38

6628594

ADAPTER Was 712555B - B

39

6595164

FITTING

40

12K7

UNION 45 degrees

41

87K7

TEE Was 19K000007B - B

42

784244

ADAPTOR

43

6595305

HOSE

44

83K5

ADAPTER W/Ref. 16 - Was 15K000005B - B

45

61D6

NUT 5

46

6595356

PLATE

47

6595353

CLAMP

48

6595311

HOSE

49

6850034

HOSE Also Order Ref. 38 - Was 6595313 - A

50

6595314

HOSE

51

6595315

HOSE

52

6595310

HOSE

53

6669277

ELBOW Was 6647875 - B

53

6632048

SEAL KIT For 6669277 Elbow

53

6632047

SNAP RING For 6669277 Elbow

54

6587975

HOSE

55

6577545

GROMMET

56

86F7

LOCK NUT Was 86F000006B - B

57

6588893

ELBOW

58

75K16

O RING 10

59

13K8

TEE See Illustration HYDROSTATIC CIRCUITRY/ E2250
