LIFT LOCK VALVE

Запчасти Bobcat 900s LIFT LOCK VALVE HYDRAULIC SYSTEM

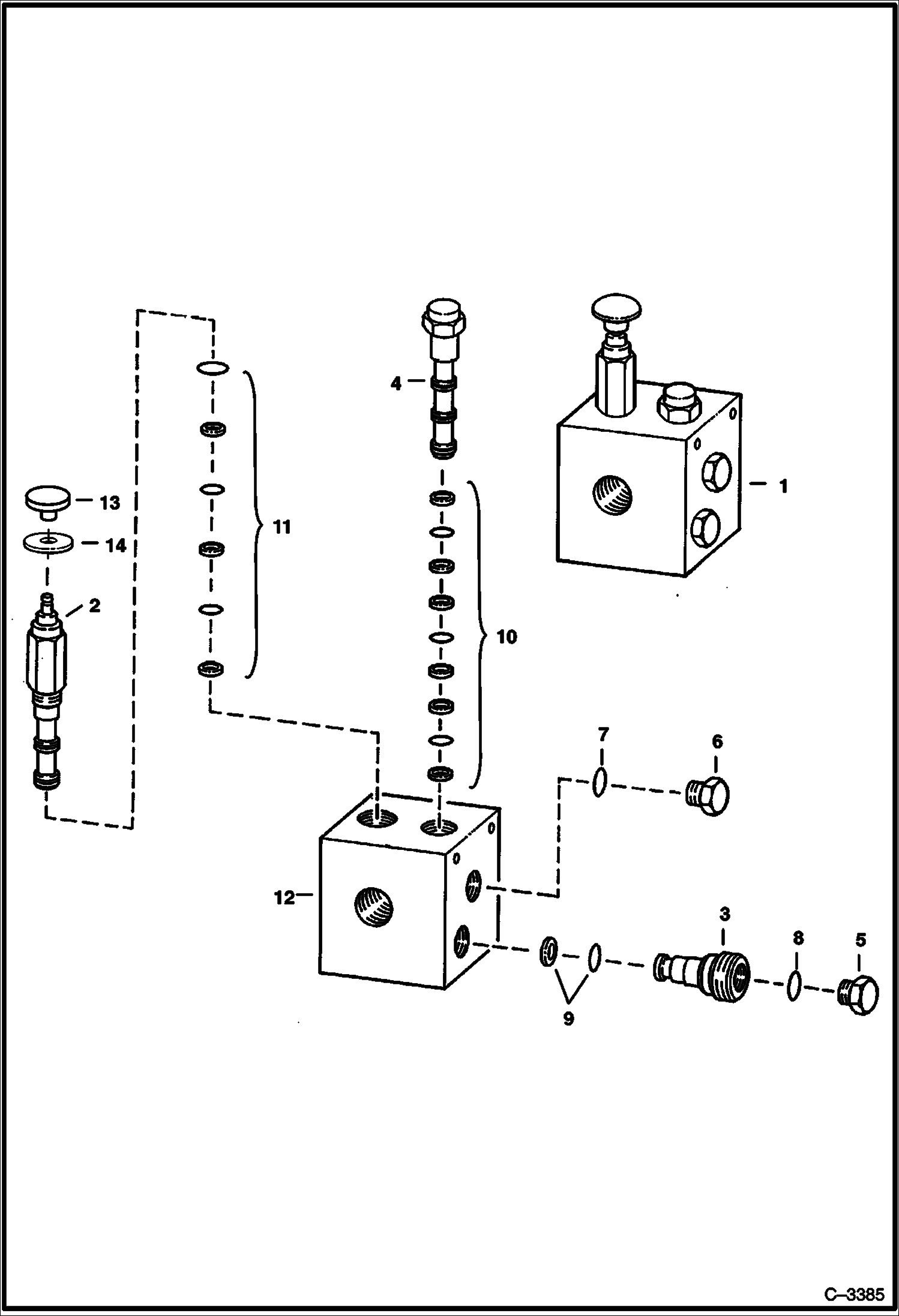

Схема запчастей Bobcat 900s - LIFT LOCK VALVE HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6665109

VALVE Ref. 2-12

2

6665490

VALVE

3

6665609

CHECK VALVE

4

6667128

VALVE filter

5

6667127

PLUG

6

6667129

PLUG

7

6667132

O-RING

8

6667131

O-RING

9

6665611

SEAL KIT

10

6667130

SEAL KIT

11

6666828

SEAL KIT

12

BLOCK NSS

13

6737524

KNOB red square - Was 6668913 - A

14

6707101

SEAL neoprene
