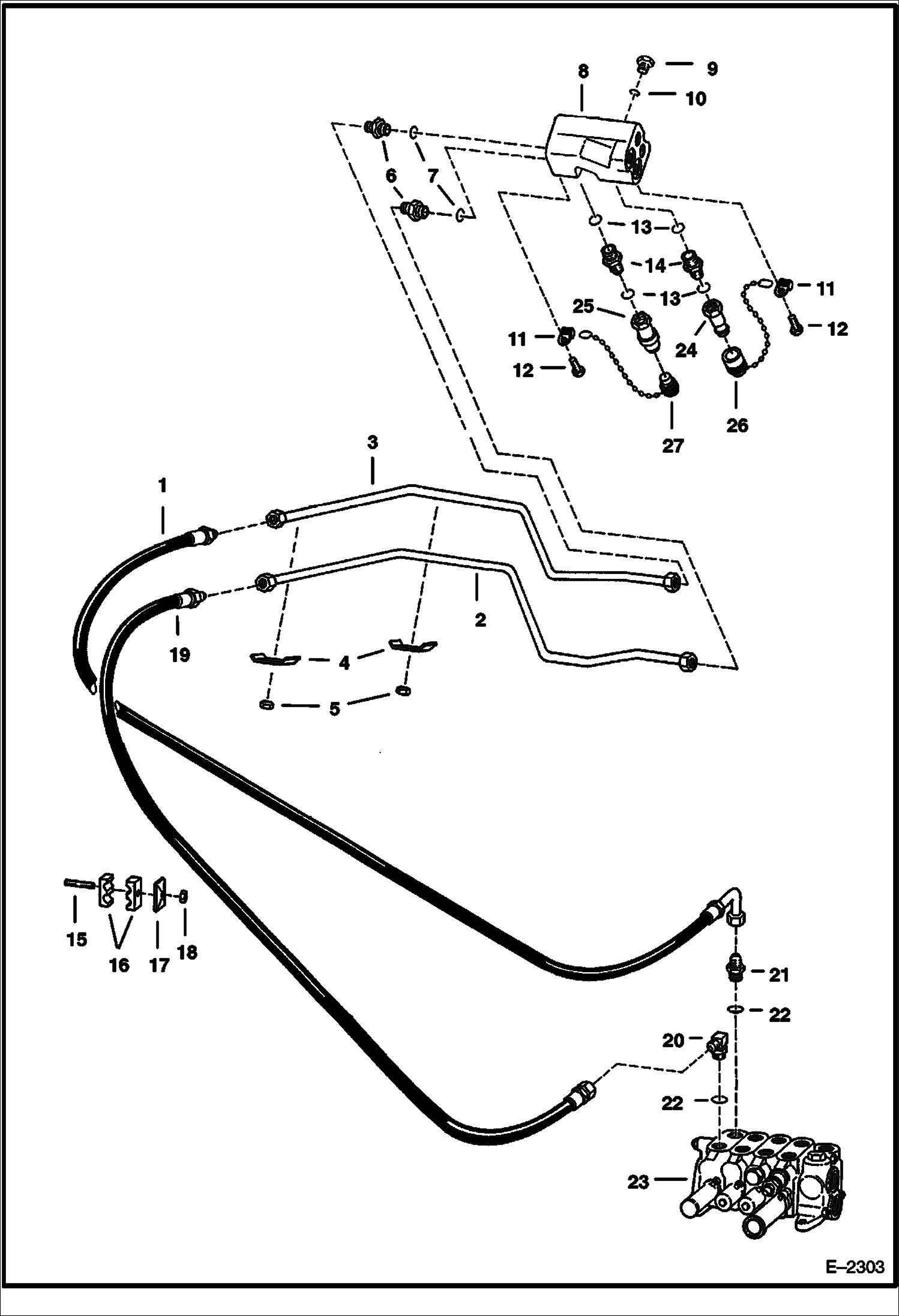

Запчасти Bobcat 900s AUXILIARY HYDRAULIC CIRCUITRY HYDRAULIC SYSTEM

1

6850032

HOSE Was 6595319 - A

2

6568938

TUBE

3

6568939

TUBE

4

6568476

CLAMP

5

85D6

NUT, 5

6

83K10

ADAPTER W/Ref. 7 - Was 15K000010B - B

7

75K16

O RING 10 Was 79K000016B - B

8

6567045

BLOCK Was 6576017 - A

9

89K7

PLUG W/Ref. 10 - Was 24K000007B - B

10

75K10

O RING 10 Was 79K000010B - B

11

30H27

CLAMP

12

35C612

BOLT

13

75K12

O'RING 10 Was 79K000012B - B

14

83K8

ADAPTER W/Ref. 13

15

6595354

STUD

16

6595353

CLAMP

17

6595356

PLATE

18

61D6

NUT 5

19

6850033

HOSE Was 6595318 - A

20

6800577

ELBOW Was 6595043 - D

21

6800575

ADAPTER Was 6568995 - D

22

79K14

O RING 10

23

6631419

VALVE See Illustration CONTROL VALVE/ E1656

24

6648970

QUICK COUPLER male - Bruning S-804 or SM-752-12FO

25

6648968

QUICK COUPLER female - Bruning SM-803 or SM -751-12FO

25

6655796

SEAL KIT

26

6515599

CAP Use W/Ref. 24

27

6515598

PLUG Use W/Ref. 25
