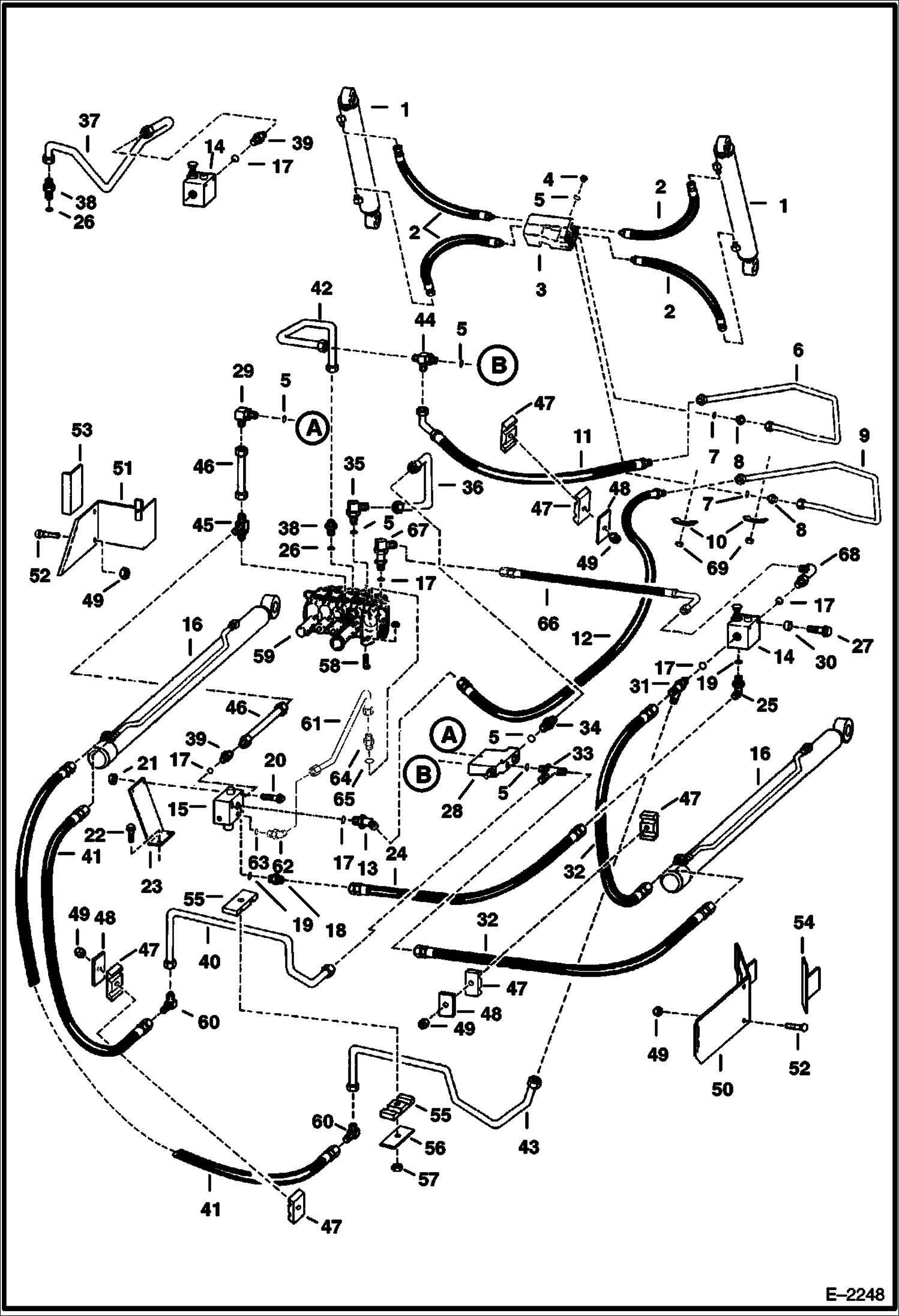

Запчасти Bobcat 900s HYDRAULIC CIRCUITRY HYDRAULIC SYSTEM

1

6588974

CYLINDER, TILT See Illustration TILT CYLINDER/ B13926 TILT

2

6800789

HOSE W/Cover - Was 6595808 - A

3

6567045

BLOCK Was 6576017 - A

4

89K7

PLUG W/Ref. 5 - Was 24K000007B - B

5

75K10

O RING 10 Was 79K000010B - B

6

6595954

TUBE

7

79K16

O RING 10

8

6800566

ADAPTER Was 712555B - B

9

6595953

TUBE

10

6568476

CLAMP

11

6850030

HOSE Was 6596127 - A

12

6850031

HOSE Was 6595320 - A

13

86K8

ELBOW Was 18K000008B - B

14

6665109

VALVE See Illustration LIFT LOCK VALVE/ C3385 LIFT-LOCK

15

6665108

VALVE See Illustration TILT LOCK VALVE/ C3384 TILT-LOCK

15

6665489

ADAPTER W/Ref. 19

16

CYLINDER See Illustration LIFT CYLINDER/ B17693 LIFT

17

75K12

O'RING 10 Was 79K000012B - B

18

83K5

ADAPTER W/Ref. 19 - Was 15K000005B - B

19

75K6

O-RING Was 79K000006B - B

20

17C656

BOLT Was 35C000656B - B

21

55D6

NUT

22

84G3712

BOLT 5

23

6595229

BRACKET Tilt Lock Valve

24

6539859

HOSE

25

85K5

ELBOW Was 17K000005B - B

26

79K14

O RING 10

27

35C624

BOLT

28

6651167

VALVE See Illustration BUCKET POSITION VALVE/ B17707

29

6800574

ELBOW Was 1300294B - B

30

6589730

SPACER

31

6800579

TEE Was 6595150 - B

32

6595322

HOSE

33

88K7

TEE Was 21K000007B - B

34

6800567

ADAPTER Was 730963B - B

35

6800577

ELBOW Was 6595043 - B

36

6595327

TUBE

37

6595330

TUBE can be Use W/ 6670644 hose, 6802284 tube, 6802285 tube, 6802286 elbow & 6519187 elbow

38

6800576

ADAPTER Was 6569138 - B

39

83K8

ADAPTER W/Ref. 17 - Was 15K000008B - B

40

6802284

TUBE Was 6595331 - A

41

6595323

HOSE

42

6595329

TUBE

43

6802285

TUBE Was 6595332 - A

44

6800583

TEE Was 6702514 - B

45

6800578

TEE Was 6595044 - B

46

6595328

TUBE

47

6595353

CLAMP

48

6595356

PLATE

49

61D6

NUT 5

50

6595227

BRACKET

51

6595225

BRACKET

52

37C616

BOLT

53

6595358

RUBBER STRIP

54

6595359

RUBBER STRIP

55

6701893

CLAMP Was 6577699 - B,D

56

6652521

PLATE

57

17C520

BOLT 5

58

37C828

BOLT

59

VALVE See Illustration CONTROL VALVE/ E1656

60

77F7

ELBOW

61

6595326

TUBE

62

86K5

ELBOW W/Ref. 63

63

75K6

O-RING

64

6665489

ADAPTER W/Ref. 65

65

78K6

O'RING

66

6670644

HOSE

67

6802286

ELBOW W/Ref. 17

68

6519187

ELBOW W/Ref. 17

69

85D6

NUT, 5
