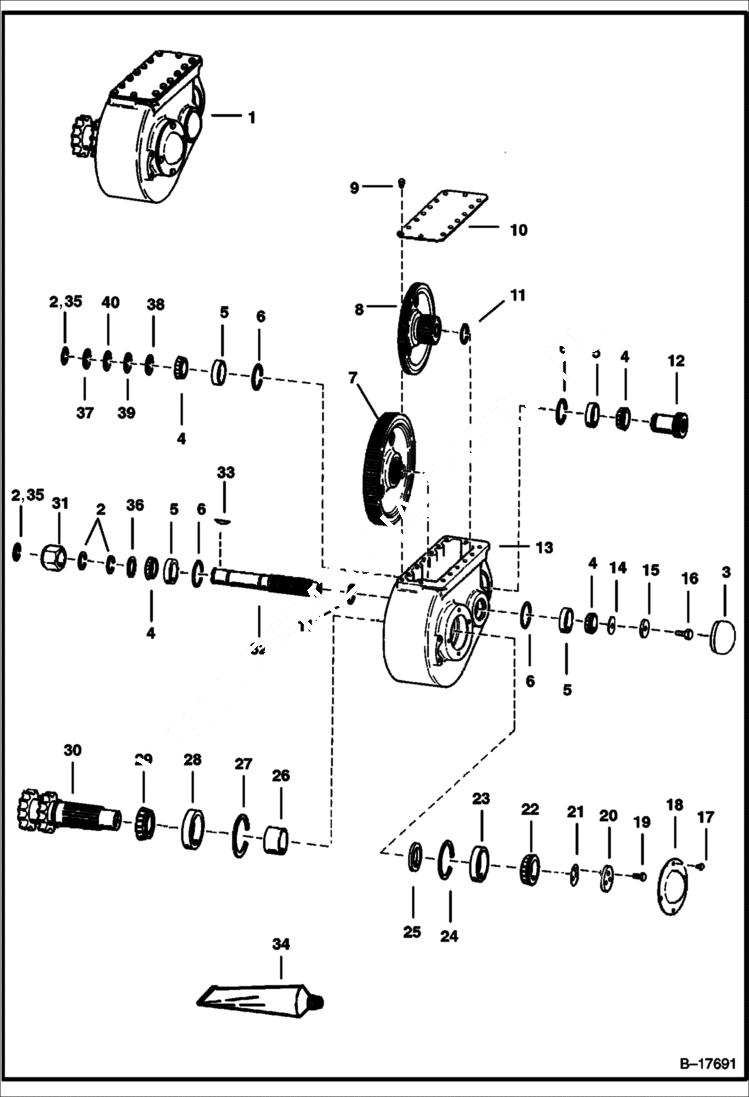

Запчасти Bobcat 900s GEARBOX DRIVE TRAIN

1

GEARBOX ASSY. NLA - Ref. 2 - 33 & 35 - 40 - Order components - Was 6596220 - A

2

663834

SNAP RING .059 - .065 Thick

3

6565289

CAP

4

6648774

BEARING

5

6648776

RACE

6

6565839

SNAP RING

7

6565834

GEAR

8

GEAR NLA - helical - Order 6596222 & 6596221 gear - Was 6567961 - A

8

6596222

GEAR straight

9

17C612

BOLT 5

10

6565826

COVER

11

6568731

SNAP RING

12

GEAR NLA - helical - Order 6596221 & 6596222 gear - Was 6595204 - A

12

6596221

GEAR straight

13

GEARBOX NLA - Was 6595633 - A

14

6589886

SHIM .003 (0,08mm) Thick

15

6558234

WASHER

16

17C1220

BOLT

17

17C508

BOLT

18

6565825

CAP

19

17C820

BOLT

20

6565830

CAP

21

6701378

SHIM

22

6648784

BEARING

23

6648785

RACE

24

223879

RING

25

6565829

COLLAR

26

6565828

COLLAR

27

6565831

SNAP RING

28

6648779

RACE

29

6648778

BEARING

30

6565832

SHAFT

31

HUB NLA - brake disc - Order 6597293 & 6597508 disc - Was 6595811 - A

31

31

6597293

HUB ''S'' stamped on end

31

6597293

HUB

32

6597294

SHAFT Was 6569753 - A

33

6J1210

KEY

34

6650388

SEALANT

35

663834

SNAP RING

36

6569754

WASHER .300 Thick

37

6589887

SHIM .060 Thick

38

6589888

SHIM .003 Thick

39

6589889

SHIM .010 Thick

40

6596496

SHIM .020 Thick - Was 6589890 - A
