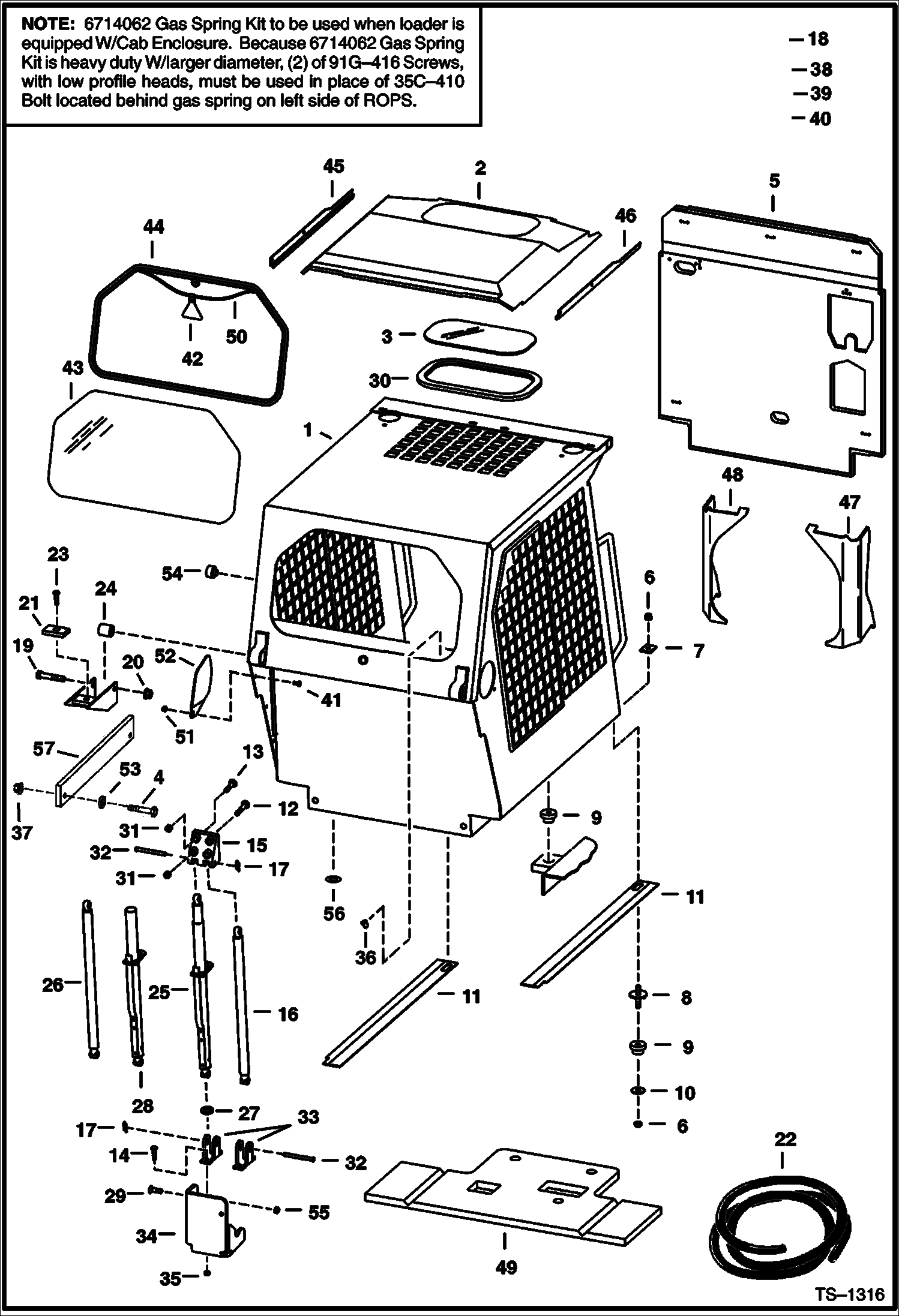

Запчасти Bobcat 900s OPERATOR CAB MAIN FRAME

1

6701957

OPERATOR CAB W/O Decals - Also Order 1 of each decal: 6531653 , 6557565 , 6565990 , 6708294 , 6577754 , 6579510 , 6593388 , 6707255 - Was 6596000 - D

2

6706155

INSULATION Was 6706553 - B

3

6705735

WINDOW

4

35C410

BOLT 5

5

6708682

INSULATION Was 6567571 - B

6

85D8

NUT, 5

7

6553709

WASHER

8

6702971

BOLT

9

6560633

DAMPENER rubber

10

6515817

WASHER

11

SEAL NLA - L.H. - Was 6569948 - A

11

SEAL NLA - R.H. - Was 6569949 - A

12

10C636

BOLT Was 37C000636B - B

13

10C624

BOLT Was 37C000624B - B

14

17C520

BOLT 5

15

6589814

BRACKET

16

6700171

GAS SPRING w/o lock - also order 6675257, clevis

16

6714062

KIT heavy duty gas spring - for Use W/ cab enclosure kit - Was 6670730 - D

16

91G416

SCREW

16

6900531

INSTRUCTIONS For Kit 6714062

17

6631418

RING, RETAINING

18

85D5

NUT 5

19

17C1056

BOLT

20

83D10

NUT 5

21

6568475

STOP

22

6665568

EXTRUSION bulk - sold per foot - Was 6658352 - B

23

84G2516

BOLT

24

6562602

BUSHING rubber

25

GAS SPRING NLA - Order Ref. 26-28

26

6664205

GAS SPRING also order 6675257, clevis

26

6675257

CLEVIS

27

6701174

WASHER

28

6708189

TUBE Stop

29

9G620

BOLT 5

30

6664351

SEAL Was 6589315 - A

31

95D6

NUT Was 91D000006B - A

32

6586772

PIN

33

6706349

MOUNT

34

6586766

BRACKET

35

87D5

NUT

36

6664310

CLIP

37

83D4

NUT 10

38

25E15

WASHER

39

763906

BUSHING

40

25E20

WASHER

41

17C512

BOLT 5

42

6731478

EXIT TAG Was 6559515 - A

43

WIND.REAR NLA - Order 6729730 window - Also Order 2134mm (84'') of 6675387 seal and 6554149 cord - Was 6701651 - A

44

MOULDING NLA - 83.25'' (2114,55 mm) long - Order Ref. 22

45

6703160

TRACK LH

46

6703159

TRACK RH

47

6715098

INSULATION back - R.H. - Was 6706156 - A

48

6715097

INSULATION back - L.H. - Was 6706157 - A

49

6715095

INSULATION seat pan - Was 6706982 - A

50

SAFETY CORD NLA - Order 81.5'' (2070,1 mm) of 6554149 bulk material - Also Order Ref. 42 (6731478 exit tag) - Was 6554223 - A

51

83D5

NUT 5

52

6707879

COVER

53

25E13

WASHER 5

54

6664374

PLUG

55

61D6

NUT 5

56

6571991

GUIDE

57

6736126

COVER
