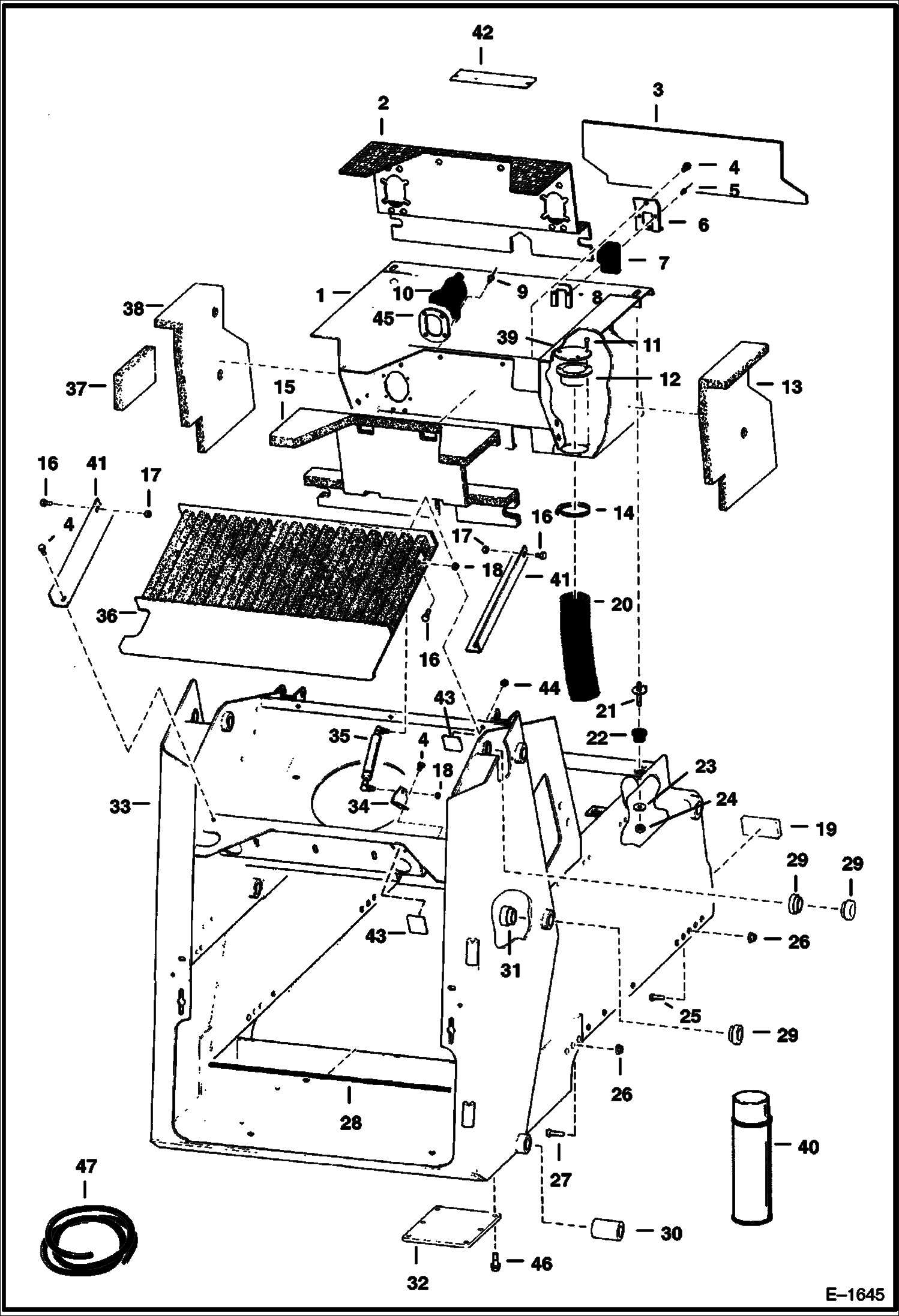

Запчасти Bobcat 900s MAIN FRAME & ATTACHING PARTS MAIN FRAME

1

6589728

MOUNT

2

6571670

INSULATION

3

6568790

INSULATION

4

84G3712

BOLT 5

5

6630207

RIVET 5

6

6569520

BRACKET

7

BOOT NLA - Was 6565013 - A

8

6568318

CLAMP

9

6658691

RIVET

10

6532127

BOOT W/Ref. 45

11

58G1008

SCREW

12

6568057

FLANGE

13

6568792

INSULATION

14

42H64

CLAMP

15

6571671

INSULATION

16

9G616

SCREW

17

61D6

NUT 5

18

61D5

NUT

19

6567459

BOOM STOP

20

HOSE NLA - 15.5'' (393,7 mm) long - Order Ref. 47

21

6702971

BOLT

22

6560633

DAMPENER rubber

23

6515817

WASHER

24

85D8

NUT, 5

25

31C1228

BOLT

26

83D12

NUT

27

31C1232

SCREW

28

6511855

SEAL self adhesive - bulk - sold per foot

29

6565862

BUSHING weld on

30

6567442

BUSHING weld on

31

6575922

BUSHING weld on

32

6587528

PLATE

33

6589880

MAIN FRAME

34

6568766

BRACKET

35

6630797

GAS SPRING

36

SHIELD NLA - Was 6569328 - A

37

6568794

INSULATION

38

6568791

INSULATION

39

6569263

PLUG

40

6632469

ADHESIVE insulation - Spray Can

41

6567348

ANGLE

42

6576284

COVER

43

6577461

COVER

44

57D6

NUT 5

45

PLATE NSS - Order Ref. 10

46

35C616

BOLT 5

47

6674744

HOSE bulk - Sold Per Foot
