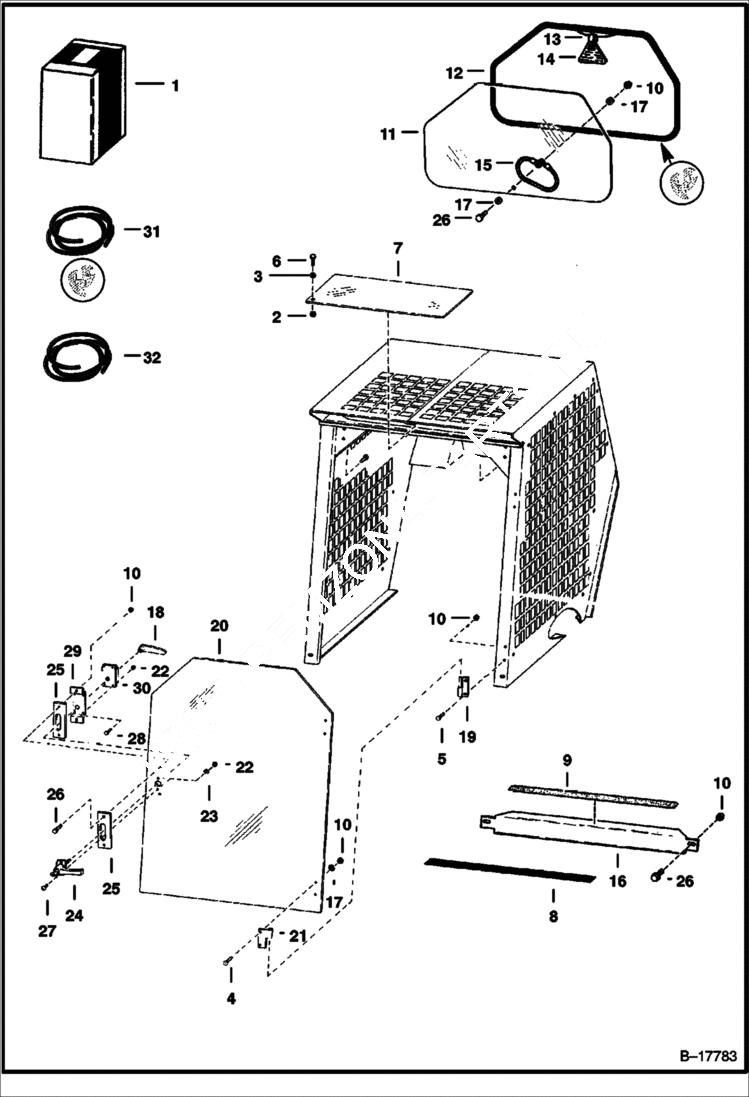

Запчасти Bobcat 900s CAB ENCLOSURE (Special) ACCESSORIES & OPTIONS

1

KIT SALES - cab enclosure - Ref. 2 - 30

2

85D6

NUT, 5

3

25E18

WASHER

4

7C520

BOLT

5

10C512

BOLT Was 6553808 - A

6

17C616

BOLT 5

7

6564829

WINDOW top

8

SEAL NLA - 28'' (711,2mm) long - Order Ref. 32

9

6564833

SAFETY TREAD

10

83D5

NUT 5

11

6564830

WINDOW rear

12

MOULDING NLA - 81.5'' (2070,1mm) long - Order Ref. 31

13

6554149

CORD, BULK/FT bulk - sold per foot - Also Order Ref. 14 (6731478 exit tag) - Was 6554223 - A

14

6731478

EXIT TAG Was 6559515 - A

15

6555331

WIRE ROPE

16

6568973

SHIELD

17

25E15

WASHER

18

6515600

HANDLE

19

6564831

HINGE Was 6554831 - D

20

6564069

DOOR

21

6564832

HINGE

22

12D10

NUT

23

25E10

WASHER

24

1550695

HANDLE outside - W/Key

25

6555054

PLATE

26

35C516

BOLT 10

27

75G1020

SCREW

28

45G1008

BOLT

29

6555059

BRACKET

30

6598475

DOOR LATCH door

31

6658352

MOULDING bulk - sold per foot

32

6511855

SEAL self adhesive - bulk - sold per foot
