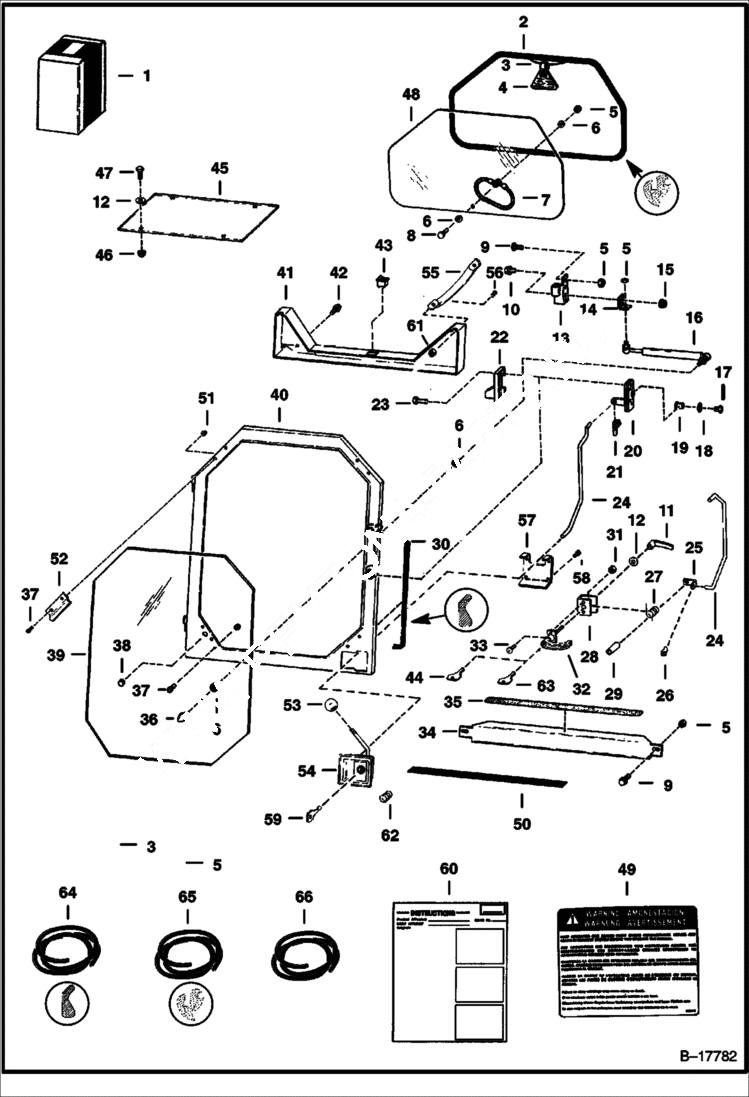

Запчасти Bobcat 900s CAB ENCLOSURE (Special Purpose) ACCESSORIES & OPTIONS

1

KIT, ENCLOSURE CAB NLA - Ref. 2-60 - Order components - Was 6572094 - A

2

MOULDING NLA - 81.5'' (2070,1mm) long - Order Ref. 65

3

6554149

CORD, BULK/FT bulk - sold per foot - Also Order Ref. 4 (6731478 exit tag) - Was 6554223 - A

4

6731478

EXIT TAG Was 6559515 - A

5

83D5

NUT 5

6

25E16

WSHR

7

6555331

WIRE ROPE

8

35C516

BOLT 10

9

10C512

BOLT Was 6553808 - A

10

35C412

BOLT

11

6515600

HANDLE Use with old style latch

12

25E18

WASHER Use with old style latch

13

6571715

HINGE

14

6568055

BRACKET

15

83D4

NUT 10

16

6630797

GAS SPRING

17

17C714

BOLT

18

25E19

WASHER

19

6568047

NUT bushing

20

6660932

LATCH old style - Was 6647789 - A

21

6519480

CLIP Was 6512274 - D

22

6568728

SHIELD

23

35C416

BOLT

24

6568727

ROD

24

6704425

ROD Was 6576470 - A

25

6568528

BRACKET

26

6519480

CLIP

27

6568725

SPRING

28

6568527

BRACKET

29

6568526

SPACER

30

SEAL NLA - 100'' (2540 mm) long - Order Ref. 64

31

50D10

LOCKNUT

32

6568726

HANDLE

33

75G1016

BOLT

34

6568973

SHIELD

35

6564833

SAFETY TREAD

36

46D5

NUT

37

25G510

BOLT

38

6632454

PLUG

39

6569033

WINDOW

40

DOOR NLA - W/Ref. 39 - Order Ref. 1 - Was 6571754 - A

40

DOOR NLA - Use with new style latch - Order Ref. 1 - Was 6704434 - A

41

6568724

SHIELD Use with old style latch

41

6704428

SHIELD Use with new style latch - Was 6576471 - A

42

84G3112

BOLT 5

43

6631009

SWITCH

44

6632560

KEY Use with old style latch

45

6564829

WINDOW top

46

85D6

NUT, 5

47

17C616

BOLT 5

48

6564830

WINDOW rear

49

6563410

DECAL

50

SEAL NLA - 28'' (711,2mm) long - Order Ref. 66

51

57D5

NUT

52

6576238

CLIP window

53

6647635

KNOB

54

6641274

LATCH new style

55

6631935

HANDLE

56

7G416

BOLT Was 7G000412B - B

57

6704426

RETAINER Was 6578398 - A

58

45G1008

BOLT

59

6647636

KEY

60

6570279

INSTRUCTIONS

61

7160765

NUT Was 6660988 - A

62

6662834

SPRING

63

6665409

KEY Use with old style latch

64

6568704

MOULDING bulk - Sold Per Foot

65

6658352

MOULDING bulk - sold per foot

66

6511855

SEAL self adhesive - bulk - sold per foot
