Запчасти Bobcat 900s WATER PUMP POWER UNIT

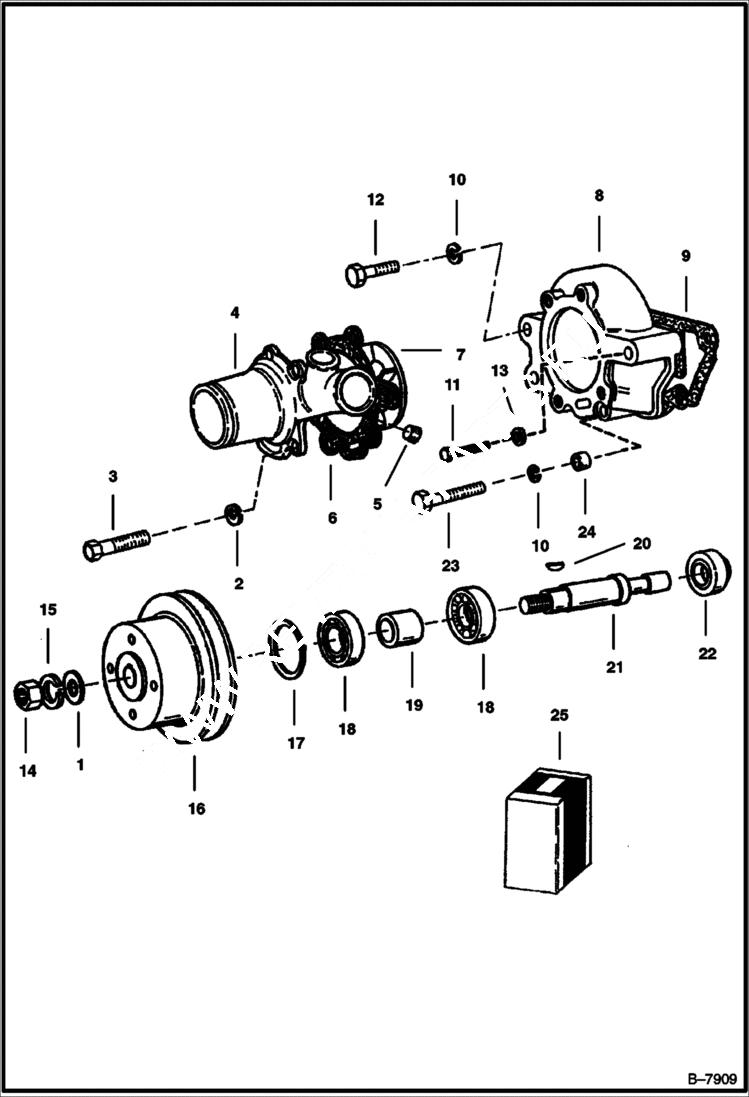

Схема запчастей Bobcat 900s - WATER PUMP POWER UNIT

Артикул

Название

Примечание

Количество

1

25E19

WASHER Was 4E000010B - B

2

4E5

WASHER

3

6649432

BOLT Was 3734229B - B

4

BODY NLA

5

16F8

PLUG

6

6668023

GASKET Was 3679408B - A

7

IMPELLER NSS

8

BODY NLA - Order 6669305 body & (4) 6667516 screws - Was 906101B - A

9

3575083

GASKET

10

4E6

WASHER

11

18C656

BOLT

12

18C640

BOLT

13

25E19

WASHER

14

62D10

NUT

15

4E10

WASHER

16

6631517

PULLEY

17

SNAP RING NSS

18

BEARING NSS

19

SPACER NSS

20

6J505

KEY

21

SHAFT NSS

22

SEAL NSS

23

BOLT NLA - Was 18C000644B - A

24

552914

SPACER

25

6631516

KIT water pump - W/Ref. 6, 7, 9 & 17-22

25

6631515

WATER PUMP W/Ref. 4, 7 & 17 - 19, 21 & 22 - Also Order 6 & 20

Выбрано товаров: 26
