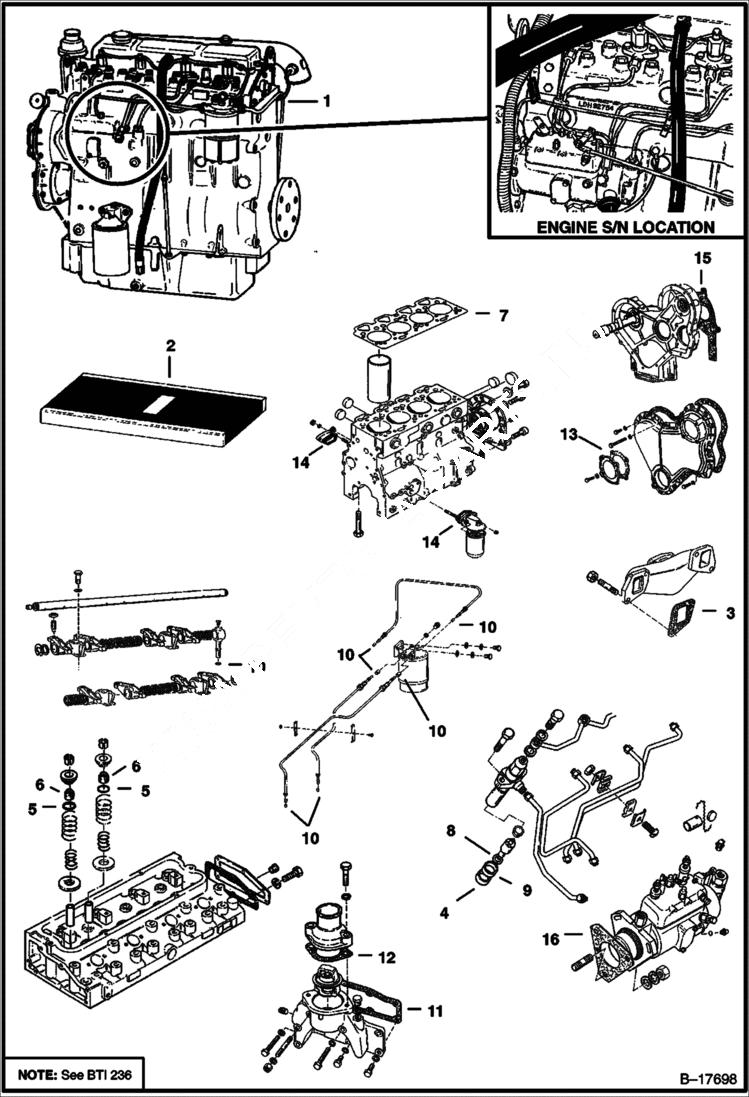

Запчасти Bobcat 900s ENGINE & GASKET KIT POWER UNIT

1

6630171

ENGINE See BTI236 W/Injection pump & filters - less starter, alternator & flywheel

1

6630171REM

ENGINE, PERKINS 4.236 B943

1

ENGINE NLA - W/Injection pump & filters - less starter, alternator & flywheel - Was 6641260 - A

1

ENGINE NLA - W/Injection pump & filters - less starter, alternator & flywheel - Order 6661655REM - Was 6661655 - A

1

6661655REM

ENGINE, PERKINS 4.236 reman

1

6641320

SHORT BLOCK W/Liners, pistons, rings, rod, rod bearings, main bearings, crankshaft, rear oil seal & housing

1

BLOCK, REMAN SHORT ENG PERKINS LD39339 NLA - Was 6641320REM - A

2

6668015

GASKET KIT Upper-Spec. No. LD70177-2200 - W/Ref. 3-12 - Was 908230B - A

2

6662043

GASKET KIT Upper-Spec. No. LD70269-2200 - W/Ref. 3-12

2

6662044

GASKET KIT Lower-Spec. No. LD70177-2200 Less Front & Rear Seal - W/Ref. 13-16 - Was 6630423 - A

2

6662044

GASKET KIT Lower-Spec. No. LD70269-2200 Less Front & Rear Seal - W/Ref. 13-16

3

6662041

GASKET See Illustration MANIFOLDS/ B7928

4

6631512

SEAL See Illustration FUEL INJECTOR SYSTEM/ B7844

5

907934

RING See Illustration CYLINDER HEAD/ B8097

6

6519507

SEAL See Illustration CYLINDER HEAD/ B8097

7

6649423

GASKET See Illustration CYLINDER BLOCK/ B8096

7

6662040

GASKET See Illustration CYLINDER BLOCK/ B8096

8

3725682

WASHER See Illustration FUEL INJECTOR SYSTEM/ B7844

9

909605

SPACER See Illustration FUEL INJECTOR SYSTEM/ B7844

10

3727375

FERRULE See Illustration FUEL FILTER/ D1712

11

6668030

GASKET See Illustration WATER OULET BODY/ B13393

12

6668014

GASKET See Illustration WATER OULET BODY/ B13393

13

6660651

GASKET See Illustration TIMING GEARS/ B7927

14

6668022

GASKET See Illustration CYLINDER BLOCK/ B8096

15

6668034

GASKET See Illustration TIMING GEARS/ B7927

15

6649431

GASKET See Illustration TIMING GEARS/ B7927

16

6668020

GASKET See Illustration FUEL INJECTOR SYSTEM/ B7844
