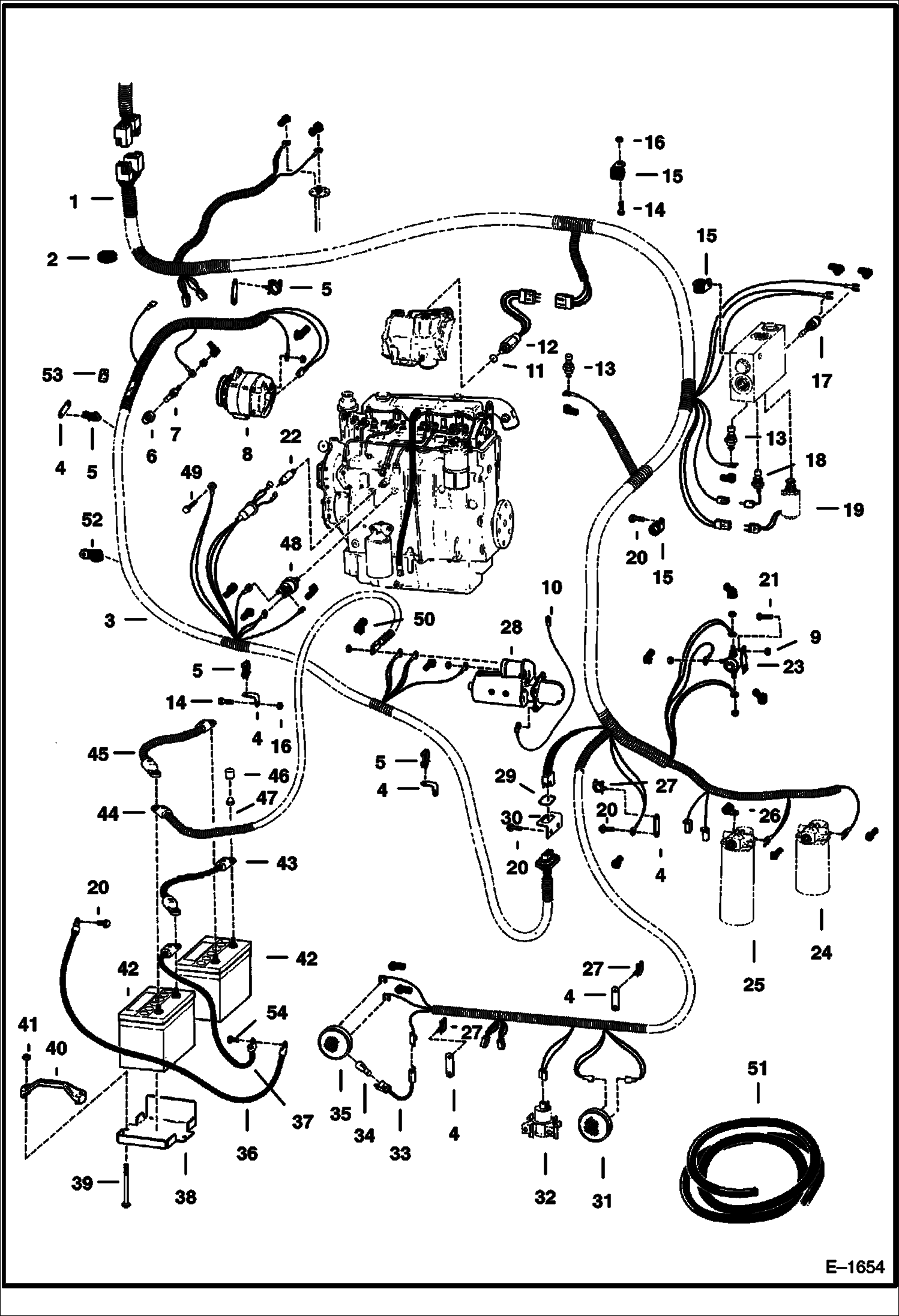

Запчасти Bobcat 900s ENGINE ELECTRICAL (S/N 11999 & Below) ELECTRICAL SYSTEM

1

6568858

HARNESS chassis

2

6515603

GROMMET

3

6568857

HARNESS engine - Use W/Delco alternator

3

6571907

HARNESS engine - Use W/Bobcat alternator

4

6567596

MOUNT

5

6630586

CLIP

6

19F4

BUSHING

7

SENDER See BTI259 NLA - eng. temp. Was 6599492 - A

7

6658818

SENDER See BTI259 eng temp - threaded connector

8

ALTERNATOR See Illustration ALTERNATOR/ D1760 See Illustration ALTERNATOR/ C1802

9

85D4

NUT 5

10

6572161

CABLE ground

11

79K6

O RING 10

12

6657267

SWITCH hydro. pressure - Was 6568962 - A

13

6631047

SWITCH hydro. temp. - 200 degrees

14

17C616

BOLT 5

15

6631626

CLAMP

16

61D6

NUT 5

17

6664440

SWITCH hydro. temp. - 100 degrees Was 6657724 - A

18

6657082

SWITCH hydro. temp. - 230 degrees Was 6568930 - A

19

6656265

SOLENOID Was 6630257 - A

20

84G3712

BOLT 5

21

17C410

BOLT 10

22

909477

VALVEFUEL See Illustration FUEL INJECTOR SYSTEM/ B7844 - electric shut-off

23

6659319

SOLENOID Was 6632186 - A

24

FILTER ASSY. See Illustration HYDROSTATIC OIL FILTER/ B7818

25

FILTER ASSY. See Illustration HYDROSTATIC OIL FILTER/ C2818

26

6631624

CLAMP

27

6630585

CLIP

28

STARTER See Illustration STARTER/ D2119 See Illustration STARTER/ B17808

29

25K40100

O RING 10

30

6571590

MOUNT

31

6557486

LAMP

32

SOLENOID See Illustration ENGINE & ATTACHING PARTS/ E1649 NLA - Was 6630588 - A

33

6564907

SOCKET ASSY

34

898731

1156 BULB

35

6563740

LAMP See Illustration REAR DOOR/ D1700

36

6563025

CABLE

37

6567932

CABLE

38

6558826

MOUNT

39

6569623

BOLT

40

7024123

CLAMP Was 6563462 - A

41

59D5

NUT 5

42

6631638

BATTERY

43

6567931

CABLE

44

6567933

CABLE Less Conduit

45

6567934

CABLE Less Conduit

46

228744

PLUG

47

2512577

NUT

48

6515472

SWITCH eng. oil press.

49

18C508

BOLT

50

6560172

COVER

51

6563505

CONDUIT bulk - Sold Per Foot

52

30H50

CLIP

53

6567537

DIODE

54

18C520

BOLT
