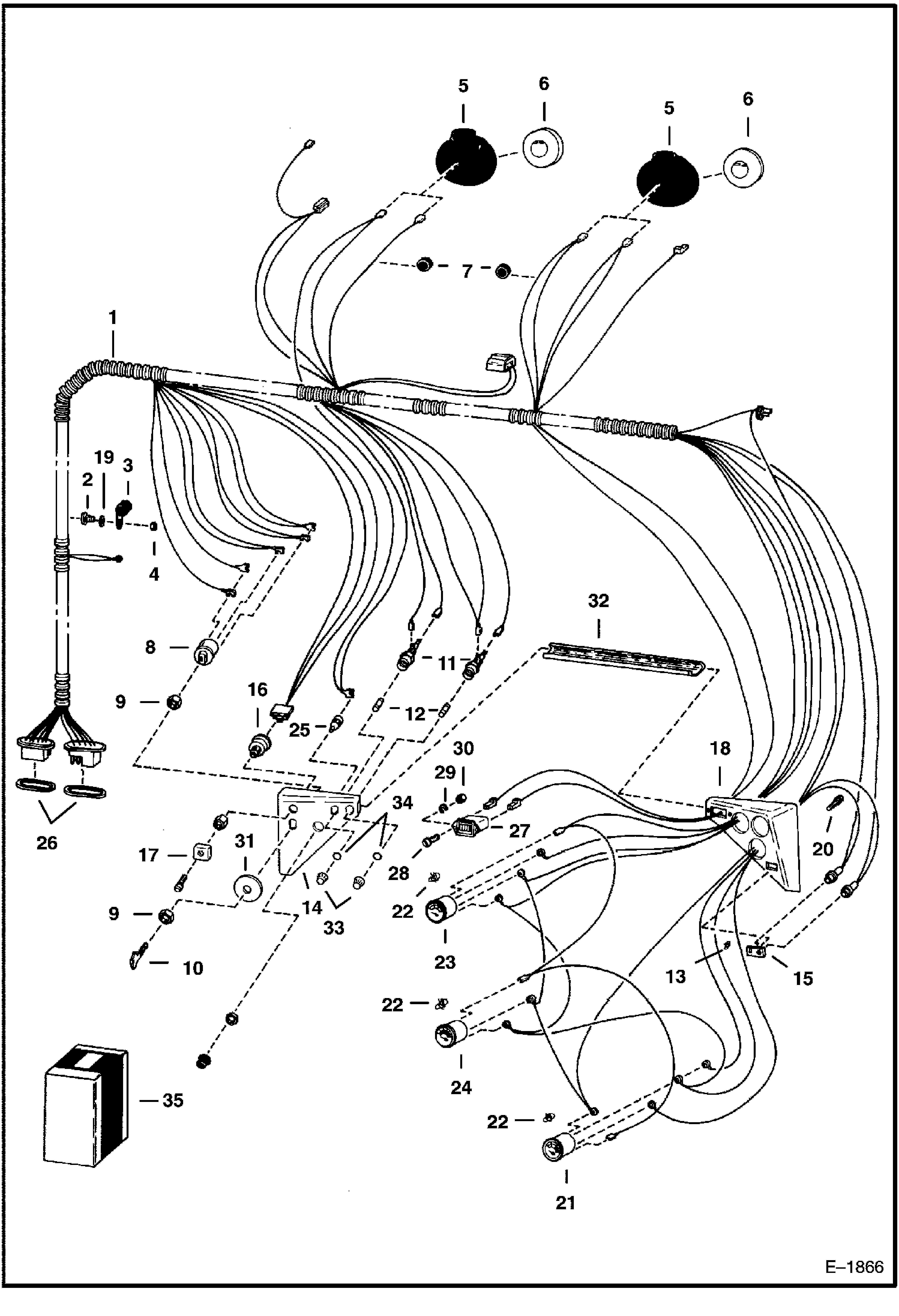

Запчасти Bobcat 900s CAB ELECTRICAL (S/N 12177 & Above) ELECTRICAL SYSTEM

1

6572058

HARNESS

2

25G514

BOLT

3

30H45

CLIP

4

61D5

NUT

5

6558142

HOUSING

6

6557486

LAMP

7

6557493

GROMMET

8

SWITCH See BTI289 NLA - W/Ref. 9 & 10 - Order Ref. 35 - Was 6519592 - A

8

6665606

SWITCH

9

6598721

NUT for NLA/6519592 switch

9

6674202

NUT for 6665606 switch

10

6512809

KEY for NLA/6519592 switch

10

KEY NLA - for 6665606 switch - includes two keys W/ring - Order 6693241 - Was 6709527 - A

10

6693241

KEY 10 ignition - single key W/O ring

11

6513469

HOLDER fuse

12

1319451

FUSE 5

13

6572065

BULB

14

6572136

PANEL LH

15

6572056

LENS

16

6512808

SWITCH W/Ref. 17

17

6599781

KNOB light switch

18

6572053

PANEL RH

19

6E6

WASHER

20

6702642

SCREW Was 84G003112B - B

21

6631649

GAUGE See BTI259 eng. temp.

21

GAUGE See BTI259 NLA - eng temp - Order 6669663 gauge & 6679027 clamp - Was 6658817 - A

21

6669663

GAUGE eng temp - W/O clamp

22

6599696

SOCKET & BULB W/bulb assy.

22

895771

#161 BULB

23

FUEL GUAGE NLA - W/clamp - Order 6669665 gauge & 6679027 clamp - Was 6658820 - A

23

6669665

FUEL GUAGE W/O clamp

24

VOLTMETER NLA - W/clamp - Order 6669664 voltmeter & 6679027 clamp - Was 6658819 - A

24

6669664

VOLTMETER W/O clamp

25

6632973

SWITCH

26

25K40100

O RING 10

27

6664886

HOURMETER Was 6631657 - A

28

65G608

SCREW

29

12E6

WASHER

30

12D6

NUT 10

31

6563431

PLATE brake start - for NLA/6519592

31

6709028

PLATE brake start - for 6665606 - Was 6708701 - A

32

6578780

CROSSMEMBER Was 6572066 - A

33

6514642

CAP fuse holder

34

6514643

GASKET

35

6724282

SWITCH KIT Ref. 8, 10 & 31
