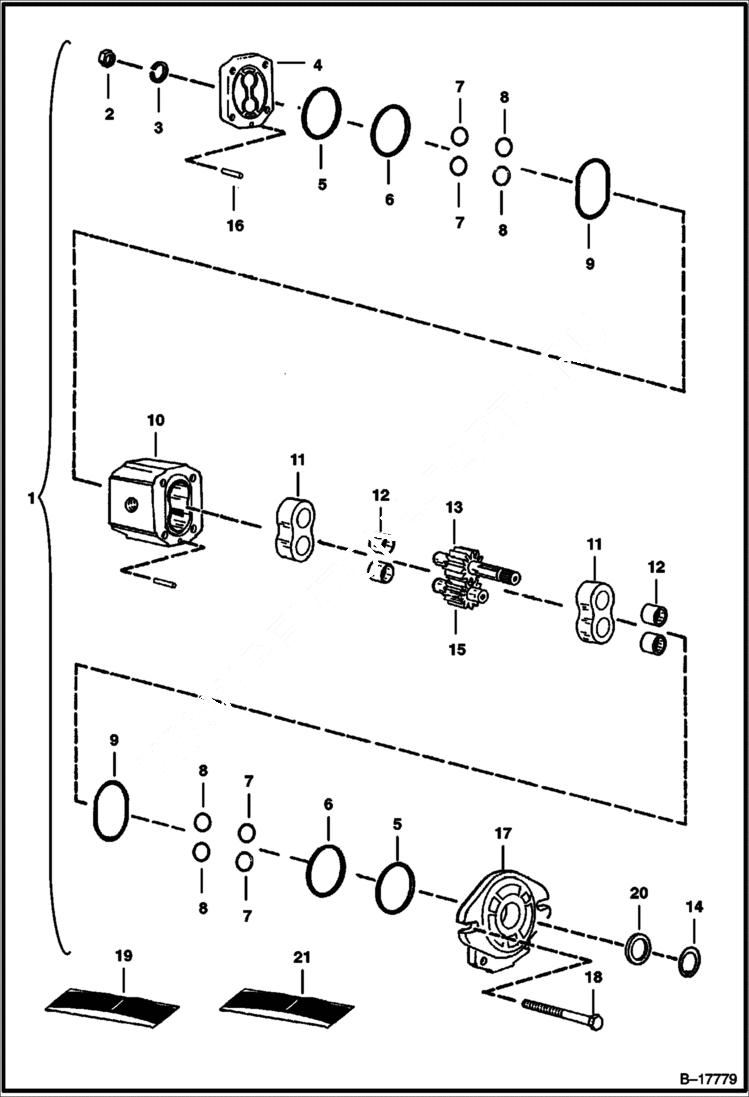

Запчасти Bobcat 900s COOLING FAN MOTOR (Sundstrand TKM200) (S/N 12001 thru 12800) HYDROSTATIC SYSTEM

1

MOTOR See Illustration COOLING FAN MOTOR/ C3061 - NLA - Order 6655317 - When installing this motor on S/N 12001 thru 12673 also Order (1) 6537287

2

NUT NSS

3

WASHER NSS

4

COVER NSS

5

BACK-UP RING NSS

6

SEAL NSS

7

SEAL NSS

8

BACK-UP RING NSS

9

O-RING NSS

10

BODY NSS

11

BEARING ASSY. NSS - W/Ref. 12

12

BEARING NSS

13

GEAR NSS

14

6660366

SNAP RING Was NSS - D

15

GEAR NSS

16

DOWEL NSS

17

COVER NSS

18

BOLT NSS

19

6647754

SEAL shaft seal

20

6686650

WASHER back-up - Was 6681896 - A

21

SEAL KIT NLA - Ref. 5 - 9 & 20 - Was 6647753 - A
