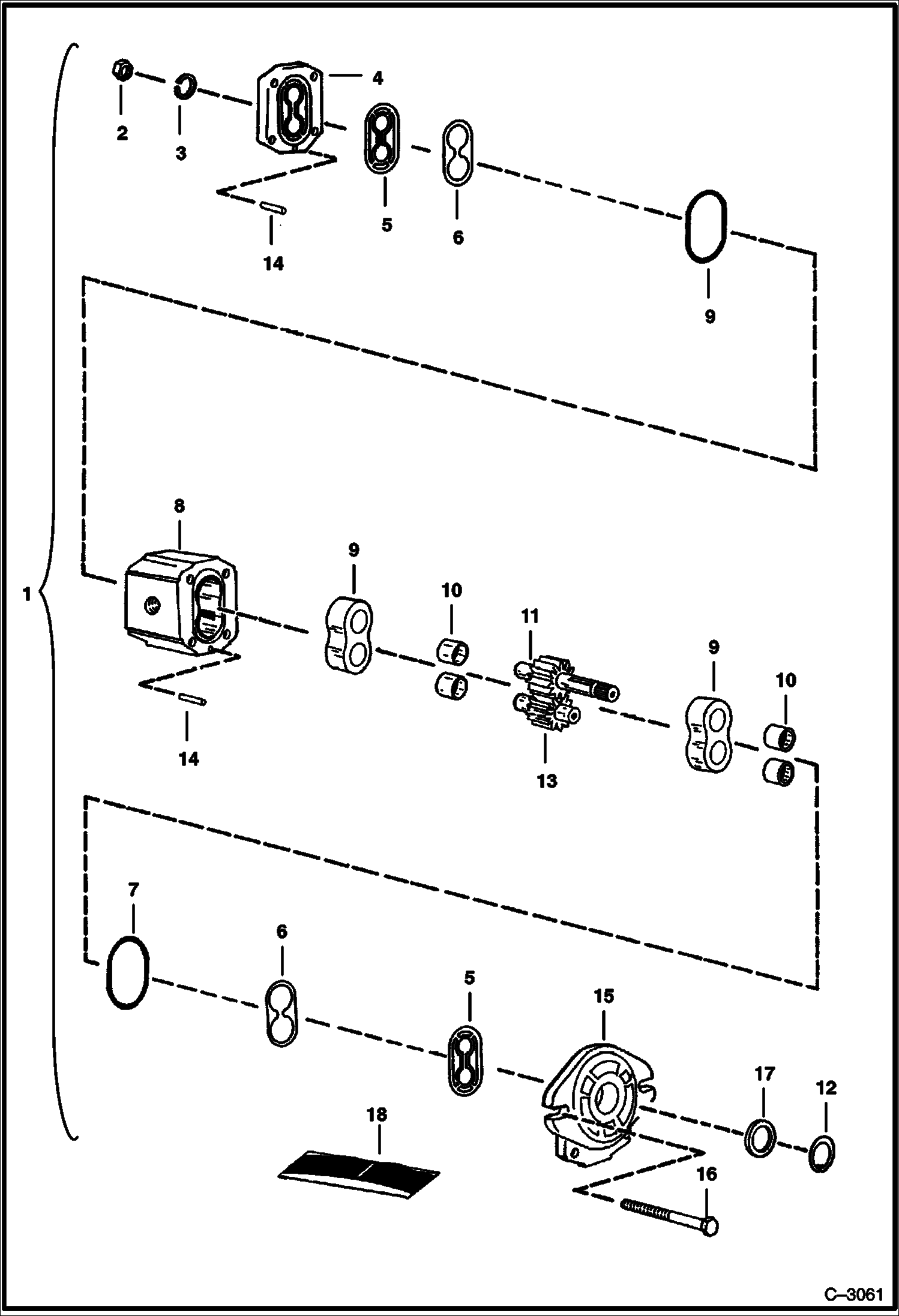

Запчасти Bobcat 900s COOLING FAN MOTOR (Sundstrand SNM2) (S/N 12801 & Above) HYDROSTATIC SYSTEM

1

6655317

MOTOR When installing this motor on S/N 12001 thru 12673 also Order (1) 6537287 - Was 6646893 - A

2

NUT NSS

3

WASHER NSS

4

COVER NSS

5

BACK-UP RING NSS

6

SEAL NSS

7

O-RING NSS

8

BODY NSS

9

BEARING ASSY. NSS - W/Ref. 10

10

BEARING NSS

11

GEAR NSS

12

6660366

SNAP RING Was NSS - D

13

GEAR NSS

14

DOWEL NSS

15

COVER NSS

16

BOLT NSS

17

6647754

SEAL

18

6656379

SEAL KIT Ref. 5 - 7 & 12
