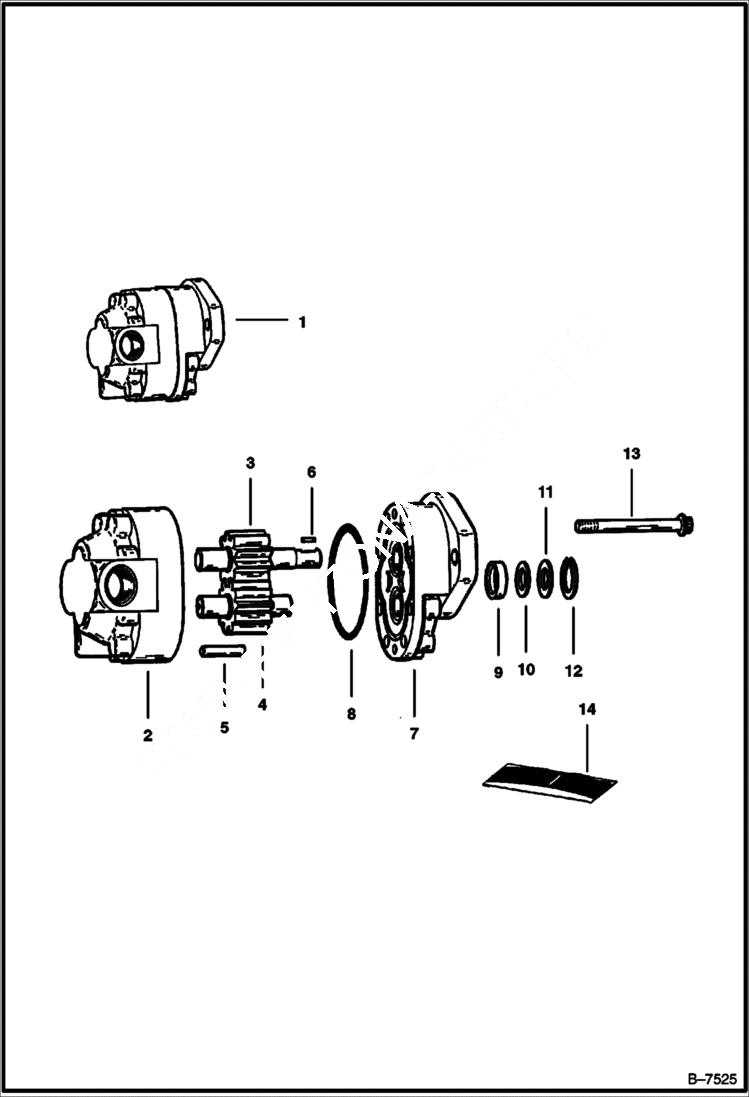

Запчасти Bobcat 900s COOLING FAN MOTOR (Cessna) HYDROSTATIC SYSTEM

1

6630212

MOTOR Ref. 2 - 13

2

6630842

HOUSING

3

6630845

GEAR W/shaft

4

6630844

GEAR W/shaft

5

6630843

DOWEL PIN

6

6630846

KEY

7

6630847

PLATE

8

O-RING NSS

9

SEAL NSS

10

WASHER NSS - back-up

11

WASHER NSS

12

SNAP RING NSS

13

6531997

BOLT

14

6630848

SEAL KIT Ref. 8 - 14
