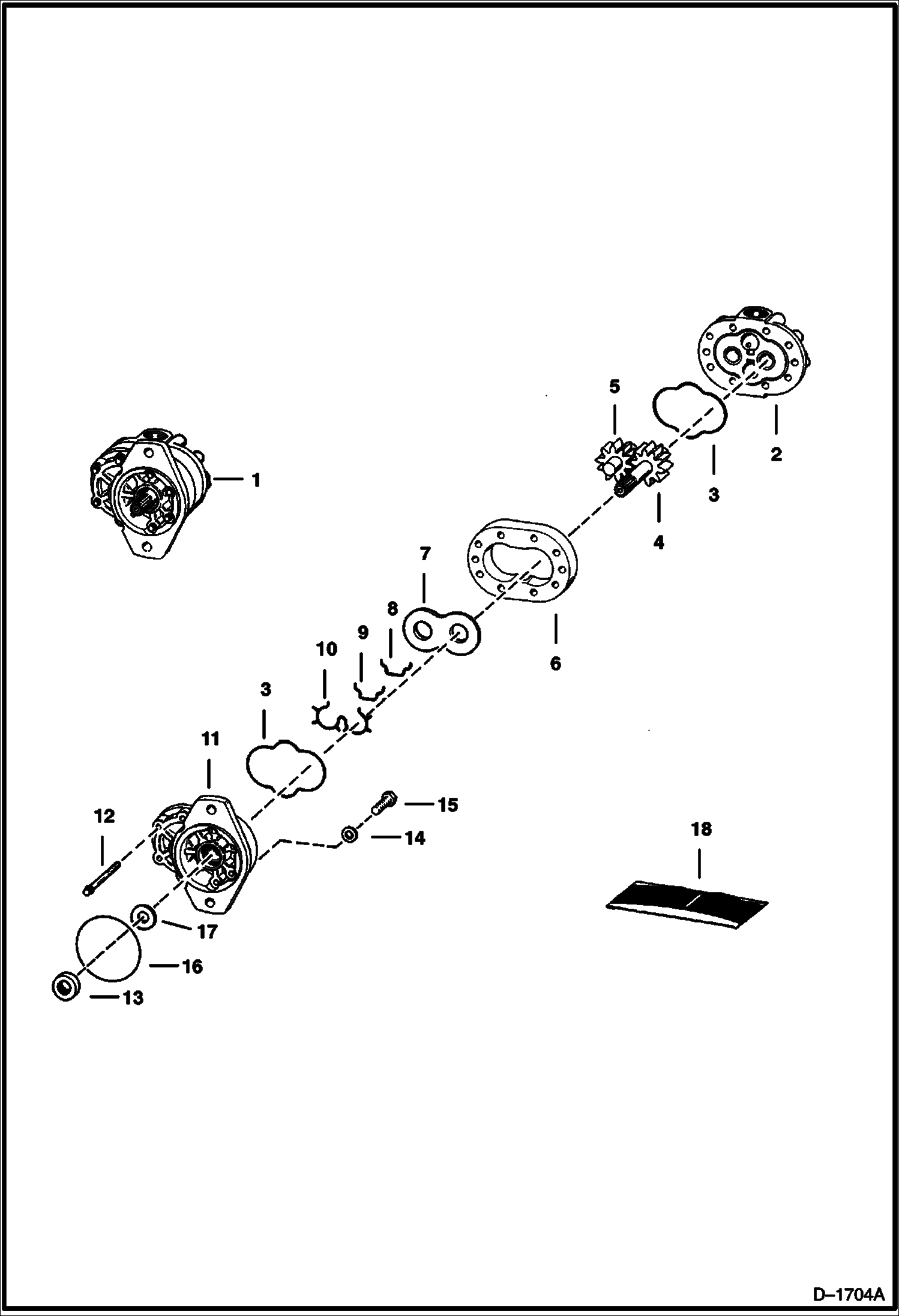

Запчасти Bobcat 900s GEAR PUMP (S/N 12001 & Above) HYDROSTATIC SYSTEM

1

6698246

PUMP, GEAR Ref. 2-13 - Was 6647721 - A

2

6631025

PLATE

3

O-RING NSS

4

6635733

GEAR drive

5

NLA - Idler - Was 6630358 - A

6

6630357

BODY

7

WEAR PLATE NSS

8

O-RING NSS - molded

9

SEAL NSS

10

GASKET NSS

11

6631026

PLATE

12

6632000

SCREW

13

SEAL NSS

14

6510585

WASHER

15

17C616

BOLT 5

16

25K20308

O RING 10 Was 6510656 - A

17

WASHER NSS

18

6631598

SEAL KIT Ref. 3, 7 - 10, 13 & 17
