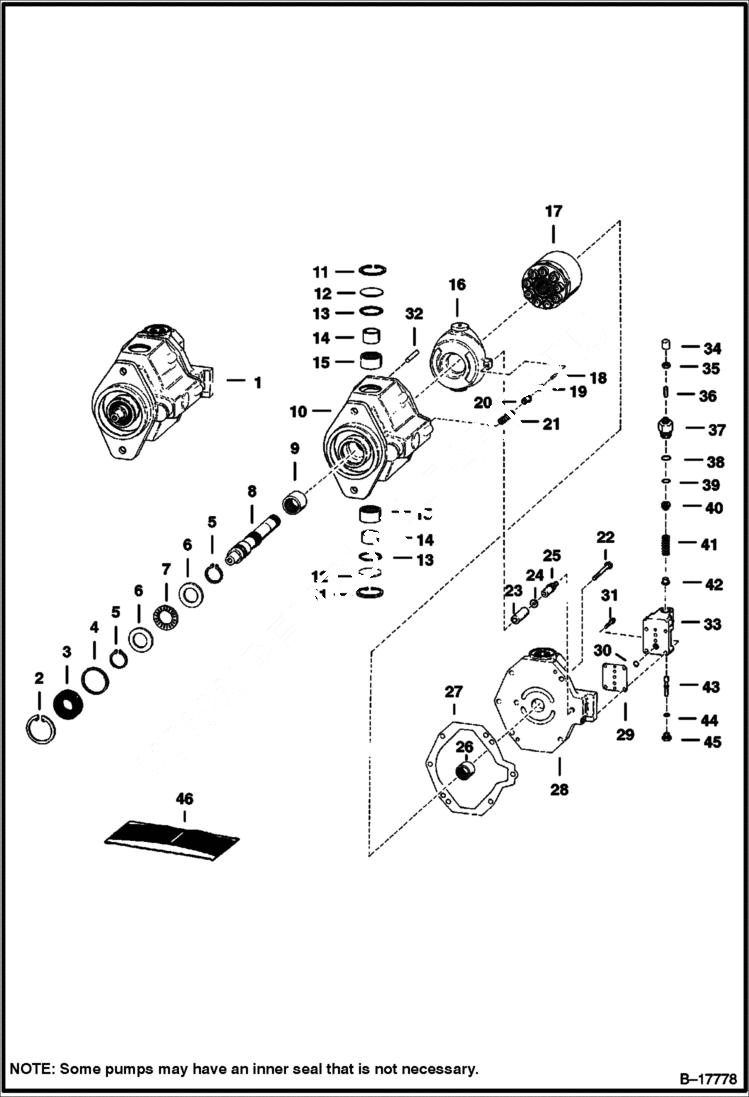

Запчасти Bobcat 900s HYDROSTATIC PUMP (Cessna - Implement) HYDROSTATIC SYSTEM

1

PUMP See Illustration GEAR PUMP/ D1704 - NLA - W/gear pump - Was 6631417 - A

1

6646782

PUMP See Illustration GEAR PUMP/ D1704A - W/gear pump

1

6631490

PUMP Less Gear Pump

2

661416

SNAP RING

3

6512136

SEAL

4

6510586

WASHER

5

710822

RING

6

5208601

WASHER thrust

7

5200262

BRG

8

6631487

SHAFT

9

6519737

BEARING

10

6510500

HOUSING W/Ref. 9

11

661415

SNAP RING

12

6519740

COVER

13

25K30114

O RING 10

14

6510590

RACE

15

896539

BRG

16

6631486

YOKE

17

6631485

ROTATING group

18

668312

PIN ROLL Was 666365 - A

19

5290309

BUTTON

20

5290308

COLLAR

21

5293737

SPRING

22

17C620

BOLT

23

6631483

CONTROL

24

6632448

SPACER

25

6631555

PIN guide

26

669053

BEARING U

27

6510070

GASKET

28

6631488

PLATE Was 6631448 - B

29

5290318

GSKT

30

58K10

O RING 10

31

74G420

CAP SCREW Was 12G000420B - A

32

1319439

ROLL PIN

33

6631484

COMPENSATOR W/Ref. 34-45

34

CAP NLA - Was 6631559 - A

35

8D4

NUT Was 6631561 - A

36

6648293

SCREW Was 6631562 - A

37

6631560

CAP adjustment

38

25K30028

O RING 10

39

25K30018

O RING 10

40

6631556

FOLLOWER

41

5290323

SPRING

42

6631557

CAP

43

SPOOL NSS

44

O-RING NSS

45

6631563

PLUG W/Ref. 44

46

6631567

SEAL KIT Ref. 2, 3, 5, 11,13, 27, 29, 30, 38, 39 & 44

46

6631568

KIT compensator repair - Ref. 34 - 42
