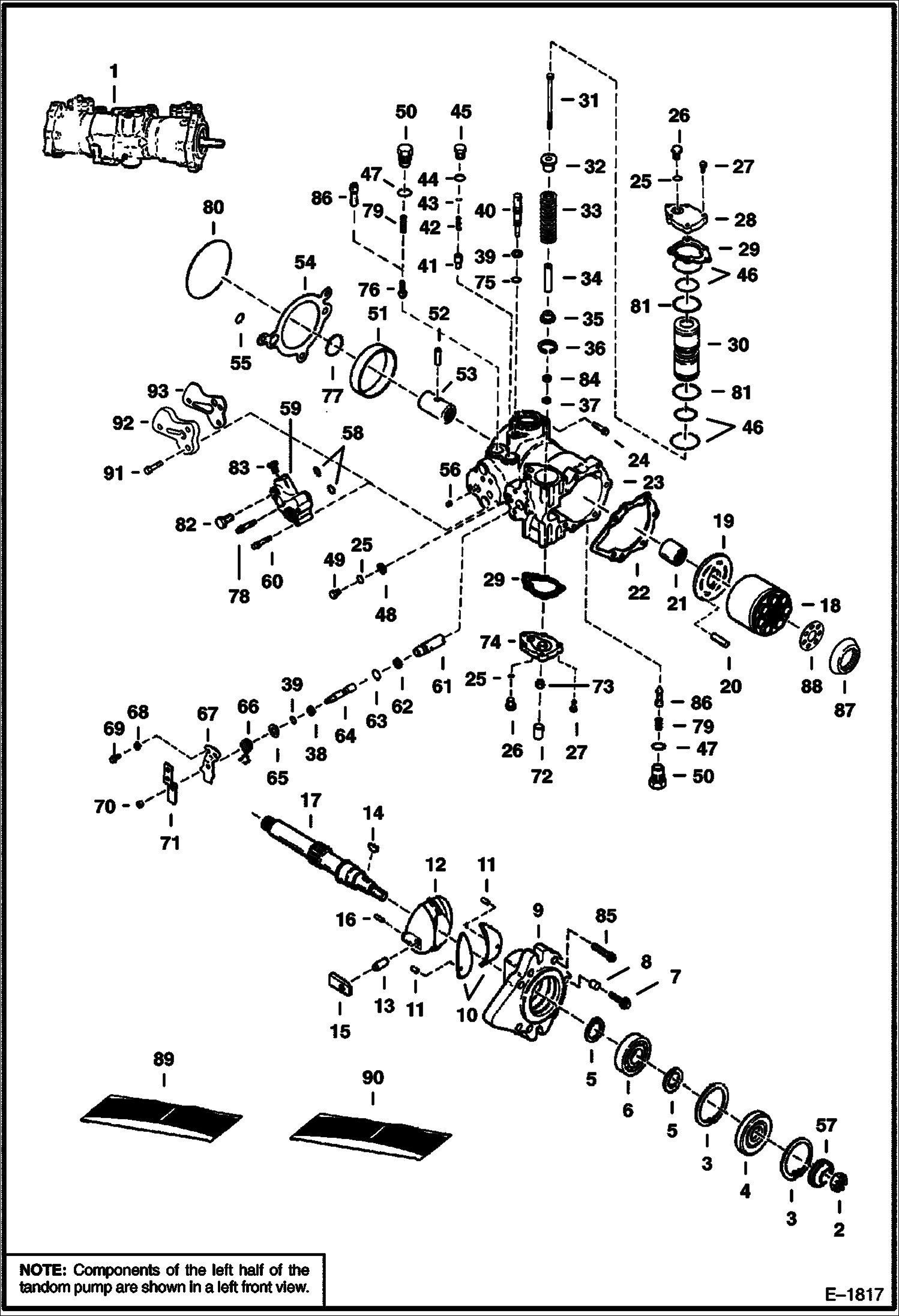

Запчасти Bobcat 900s HYDROSTATIC PUMP (Sundstrand) HYDROSTATIC SYSTEM

1

PUMP NLA - M91-46100 - Less Implement & Gear Pump - Was 6632972 - A

1

PUMP NLA - M91-46106R - Less Implement & Gear Pump - Was 6633581 - A

1

PUMP NLA - M91-46371 - Less Implement & Gear Pump - Was 6656255 - A

1

PUMP NLA - M91-46385 - Less Implement & Gear Pump - Order (1) 6538847 & (1) 6669082REM - Was 6659317 - A

1

PUMP NLA - M91-46385R - Remanufactured - Less Implement & Gear Pump - Was 6657732 - A

1

PUMP NLA - M91-46446 - Less Implement & Gear Pump - Was 6660456 - A

1

6669082REM

PUMP, HYD, W/O GEAR PUMP M91-46446R - Remanufactured - Less Implement & Gear Pump - Was 6669082 - A

2

92D12

NUT Was 86D000012B - B

3

669863

RING, SNAP

4

6687191

SEAL, OIL Was 6645090 - A

5

658128

RING, SNAP

6

654299

BEARING

7

93G616

SCREW .375'' (9,5) mm

8

6634592

PIN

9

COVER NLA - front - W/.375'' (9,5 mm) bolt holes - Order (1) 6656074 housing, (1) 6656076, (6) 6666220 screw & (1) 6640612 gasket

9

6656076

COVER front - W/.4375'' (11,1 mm) bolt holes

10

6634613

BEARING journal

11

791355

ROLL PIN

12

6634382

SWASHPLATE

13

6632464

PIN

14

6J807

KEY, WOODRUFF

14

6682261

KEY hex

15

6631428

SLEEVE

16

6673049

PIN Was 6670273 - A

17

SHAFT NLA - half moon - Was 6666221 - A

17

6666221

SHAFT hex

18

6670274

BLOCK group - Was 6634311 - A

18

6631478

ROTATING PIECE group - only for M91-46106R - .704'' long kidney

19

PLATE NLA - valve - Order 6665122 & 6666596 Plate - Was 6634474 - A

19

6665122

PLATE valve

19

PLATE NLA - valve - only for M91-46106R - Was 6640610 - A

20

6634533

PIN

21

6631022

BEARING

22

6640612

GASKET Was 6631437 - A

23

HOUSING NLA - Order 6656076 cover, (1) 6640612 gasket, (6) 6666220 screws & Relief Valves

23

HOUSING NLA - Order (1) 6656074, (1) 6656076 cover, (1) 6640612 gasket & (6) 6666220 screws

23

6656074

HOUSING

24

93G832

BOLT

25

79K4

O RING 10

26

24K3

PLUG

27

6634603

BOLT

27

6653736

BOLT

28

6645072

COVER servo - Was 6631443 - A

29

6634425

GASKET

30

6634429

PISTON servo

31

6677160

SCREW Was 6631470 - A

32

6631444

GUIDE

33

6631430

SPRING

34

6631446

STOP

35

6631445

GUIDE

36

6631469

SNAP RING

37

6648256

NUT Was 6631457 - B

38

25K20012

O RING 10

39

6631467

BACK-UP RING

40

6632462

VALVE bypass

41

6518656

VALVE charge relief - Was 6618656 - D

42

6518657

SPRING

43

6598058

SHIM KIT .005, .010, .020, .050, .100

44

79K10

O RING 10

45

6631465

PLUG

46

6634488

KIT

47

79K12

O RING 10

48

6634478

ORIFICE .036''(0,914mm) - For M91-46100 & M91-46371

48

6640619

ORIFICE .036''(0,914mm) - For M91-46106

48

6657320

ORIFICE .156''(3,962mm) - For M91-46385

49

6518510

PLUG

50

PLUG NSS - Order Ref. 79

51

6631450

RING

52

668312

PIN ROLL

53

6631438

COUPLING

54

6631435

GASKET In Pumps Before April 1986

55

55K19

O-RING Was 58K19 - A

55

6653738

O-RING

56

6631463

PLUG

57

6576033

WASHER Was 6558465 - A

58

6634552

O-RING

59

6660778

ADAPTER Was 6634313 - A

60

93G524

SCREW

61

6634427

SLEEVE M91-46100

61

SLEEVE NLA - M91-46106R - Was 6640617 - A

61

6657315

SLEEVE, WEAR M91-46385

62

25K20020

O RING 10

63

6631468

WASHER

64

SPOOL NLA - Order (2) of 6666211 spool - one for each half of tandem pump - Was 6634428 - A

64

SPOOL NLA - Only for M91-46106R - Was 6640618 - A

65

6631471

WASHER

66

6631449

SPRING

67

6631453

BRACKET

68

6653735

WASHER Was 8E000004B - B

69

6653733

SCREW Was 17C000410B - B

70

6653734

NUT Was 6631456 - A

71

6634481

HANDLE

72

COVER NLA - Was 6631451 - A

73

6631458

NUT

74

6645071

COVER Was 6631442 - A

75

58K012

O-RING 10

76

6640607

POPPET

76

6650669

POPPET

77

25K20026

O RING 10

78

6634604

SCREW

79

SPRING NLA - Was 6632299 - A

79

6650656

SPRING

80

6655042

O-RING In Pumps After April 1986 - Was 6634533 - A

81

6659256

BEARING Was 6653740 - A

82

24K7

PLUG

83

6645086

PLUG

84

6653728

NUT locking

85

6666220

SCREW .4375'' (11,1 mm) - Was 6656077 - A

86

VALVE NLA - high pressure relief - W/Ref. 17 - (4) on M91-46106R, (2) on rest of Pumps - Order 6656074, 6656076, 6640612, 6666220 (6) & 6653731 (2) - Was 6646641 - A

86

VALVE NLA - 5025 psi - Order 6656076, 6656073, 6640612, 6666220 (6) & Rel Valve - Was 6653745 - A

86

6653731

VALVE

87

6660079

GUIDE

88

6660080

RETAINER

89

6661037

SEAL KIT See Illustration HYDROSTATIC PUMP/ E1816 See Illustration Hydrostatic pump/E1816 - Ref. 4, 22, 25, 29, 38, 39, 43, 46, 47, 57 58, & 65 - Also includes Ref. 4, 22, 25, 29, 38, 39, 44, 47, 54,

90

6661040

SERVO KIT Ref. 22, 29, 38, 39, 46, 57, 62, 63, 73 & 83 - Was 6720759 - A

91

6660780

SCREW

92

6660778

ADAPTER

93

6660779

SEAL
