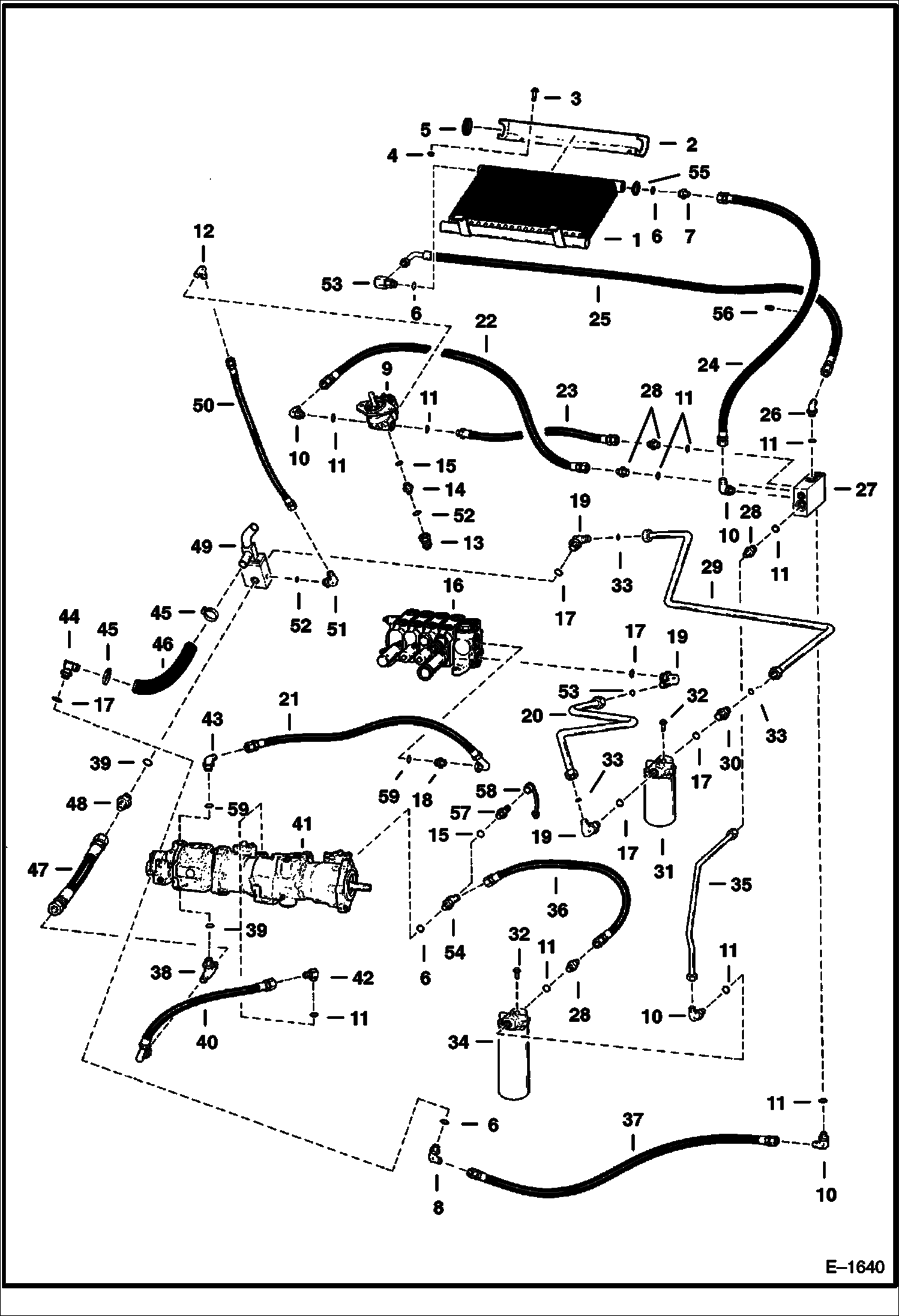

Запчасти Bobcat 900s HYDROSTATIC CIRCUITRY (S/N 11999 & Below) HYDROSTATIC SYSTEM

1

6631476

OIL COOLER

2

MOUNT NLA - Was 6568680 - A

3

35C616

BOLT 5

4

57D6

NUT 5

5

6511983

GROMMET

6

79K10

O RING 10

7

730963

CONNECTR

8

17KB1210

FITTING, HYD ELBOW Was 6714901 - A

9

6630212

MOTOR See Illustration HYDROSTATIC MOTOR/ B17709

10

17K8

FITTING

11

79K12

O RING 10

12

83F5

ELBOW Was 83F000008B - B

13

COUPLER NLA - Was 6630093 - A

14

6569271

ADAPTER W/Ref. 15

15

79K6

O RING 10

16

6631419

VALVE See Illustration CONTROL VALVE/ E1656

17

79K16

O RING 10

18

15K10

ADAPTOR W/Ref. 59

19

42E1616

ELBOW W/Ref. 17 & 33 - Was 55E000016B - A

20

6568329

TUBE

21

6587984

HOSE Was 6568927 - A

22

6567207

HOSE

23

6567206

HOSE

24

6569070

HOSE

25

6569069

HOSE

26

18K8

FTG W/Ref. 11

27

6567343

BLOCK See Illustration PORT BLOCK/ C2883

28

15K8

FITTING W/Ref. 11

29

6568328

TUBE

30

6571885

VALVE check

31

FILTER See Illustration HYDROSTATIC OIL FILTER/ B7818

31

6630977

ELEMENT filter

32

17C610

BOLT

33

58K21

O RING 10

34

FILTER See Illustration HYDROSTATIC OIL FILTER/ C2818

34

6661248

FILTER, OIL HYD 12 6'' (152,4 mm) long - Was 6598903 - B

35

6567359

TUBE

36

6587983

HOSE Was 6571789 - A

37

6567366

HOSE

38

19K11

TEE W/Ref. 39

39

79K20

O RING 10

40

6587979

HOSE Was 6568842 - A

41

PUMP See Illustration HYDROSTATIC PUMP/ E1817 See Illustration HYDROSTATIC PUMP/ B17778 See Illustration HYDROSTATIC PUMP/ E1816

42

ELBOW NLA - W/Ref. 11 - tapered boss face - Was 1300309B - A

42

17KB1612

FITTING, HYD ELBOW W/Ref. 11 - flat boss face

43

17K10

FITTING W/Ref. 59

44

1312337

ELBOW W/Ref. 17

45

42H32

HS CLAMP5

46

6568360

HOSE

47

6587980

HOSE Was 6568844 - A

48

15K11

FTG

49

BLOCK See Illustration HYDROSTATIC CIRCUITRY/ E1639

50

1319364

HOSE

51

17K6

ELBOW W/Ref. 52

52

79K16

O RING 10 Was 79K000008B - B

53

6647875

ELBOW Was 6003173 - A

53

6632048

SEAL KIT For 6647875 Elbow

53

6632047

SNAP RING For 6647875 Elbow

54

6538847

ELBOW For Charge Pressure Sender - Was 6538003 - A

55

6538285

LOCK RING Was 1305943B - A

56

6567416

GROMMET

57

6630168

COUPLER

58

6630367

CAP

59

75K16

O RING 10
