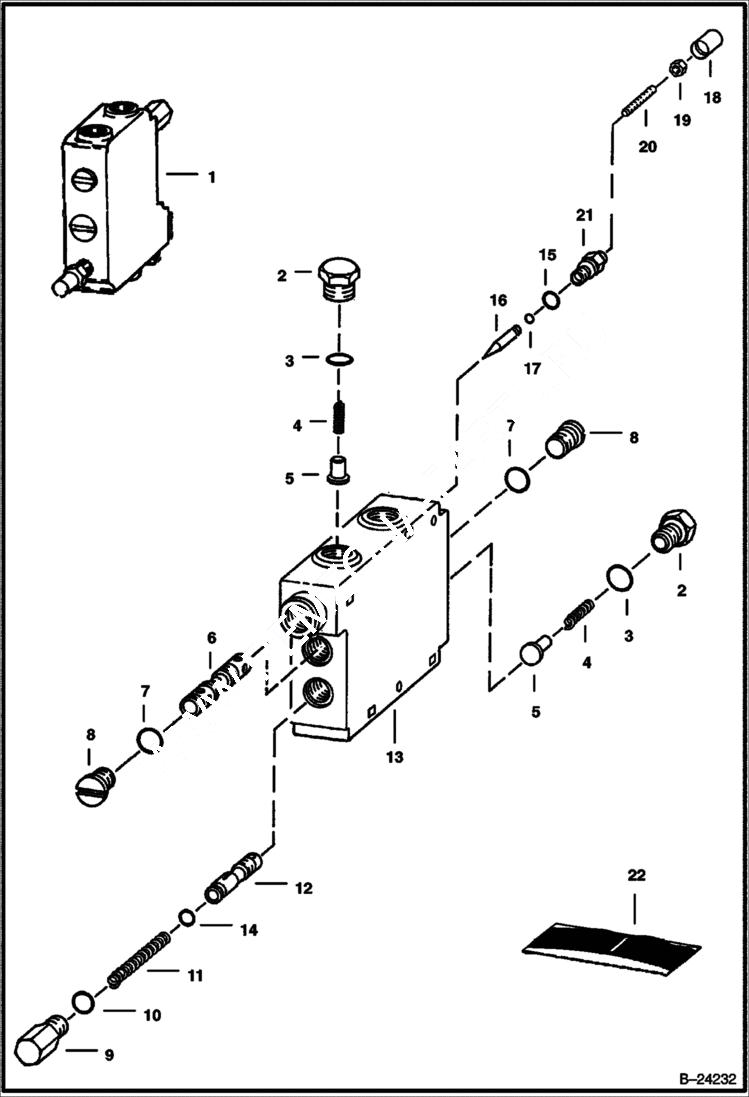

Запчасти Bobcat 900s BUCKET POSITION VALVE HYDRAULIC SYSTEM

1

6673958

VALVE Was 6666342 - A

2

6647784

PLUG W/Ref. 3

3

O-RING NSS

4

6647785

SPRING

5

6647783

LOAD CHECK

6

SPOOL NSS

7

O-RING NSS

8

6676543

PLUG Was 6647780 - A

8

79K10

O RING 10

9

6667176

PLUG W/Ref. 10

10

79K10

O RING 10

11

6648294

SPRING

12

SPOOL NSS

13

BODY NSS

14

RETAINING RING NSS

15

O-RING NSS

16

6647777

PIN

17

O-RING NSS

18

COVER NSS

19

8D4

NUT Was 6631561 - A

20

6648293

SCREW

21

6647778

CAP

22

6667185

KIT, SEAL Ref. 3, 7, 10, 15, 17 & 18
