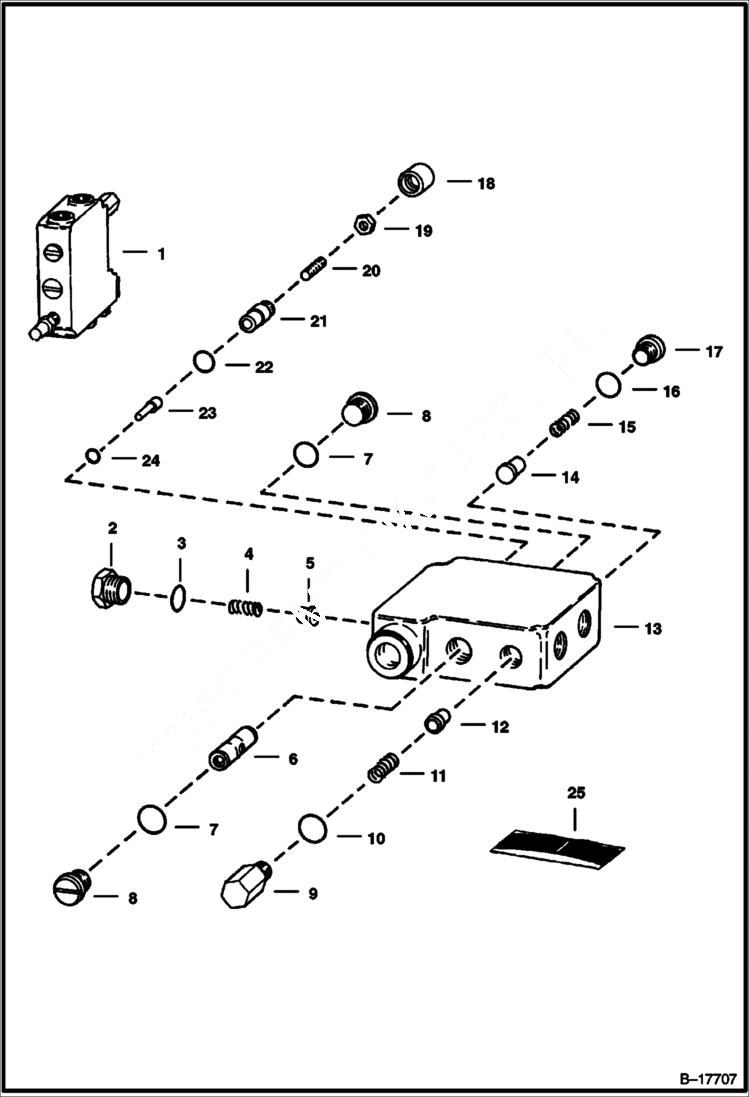

Запчасти Bobcat 900s BUCKET POSITION VALVE (S/N 12305 & Above) HYDRAULIC SYSTEM

1

VALVE NLA - Order 6673958 - Was 6651167 - A

2

6647784

PLUG W/Ref. 3

3

79K10

O RING 10

4

6647785

SPRING

5

6647783

LOAD CHECK

6

SPOOL NSS

7

O-RING NSS

8

6676543

PLUG Was 6647780 - A

8

79K10

O RING 10

9

6647779

PLUG W/Ref. 10

10

O-RING NSS

11

6648294

SPRING Was 6647782 - A

12

SPOOL NSS

13

BODY NSS

14

6647776

PLUNGER

15

1550482

SPRING

16

O-RING NSS

17

6647781

PLUG W/Ref. 16

18

COVER NSS

19

8D4

NUT Was 6631561 - A

20

6648293

SCREW Was 6631562 - A

21

6647778

CAP

22

O-RING NSS

23

6647777

PIN

24

O-RING NSS

25

6647786

SEAL KIT Ref. 3, 7, 10, 16, 18, 22 & 24
