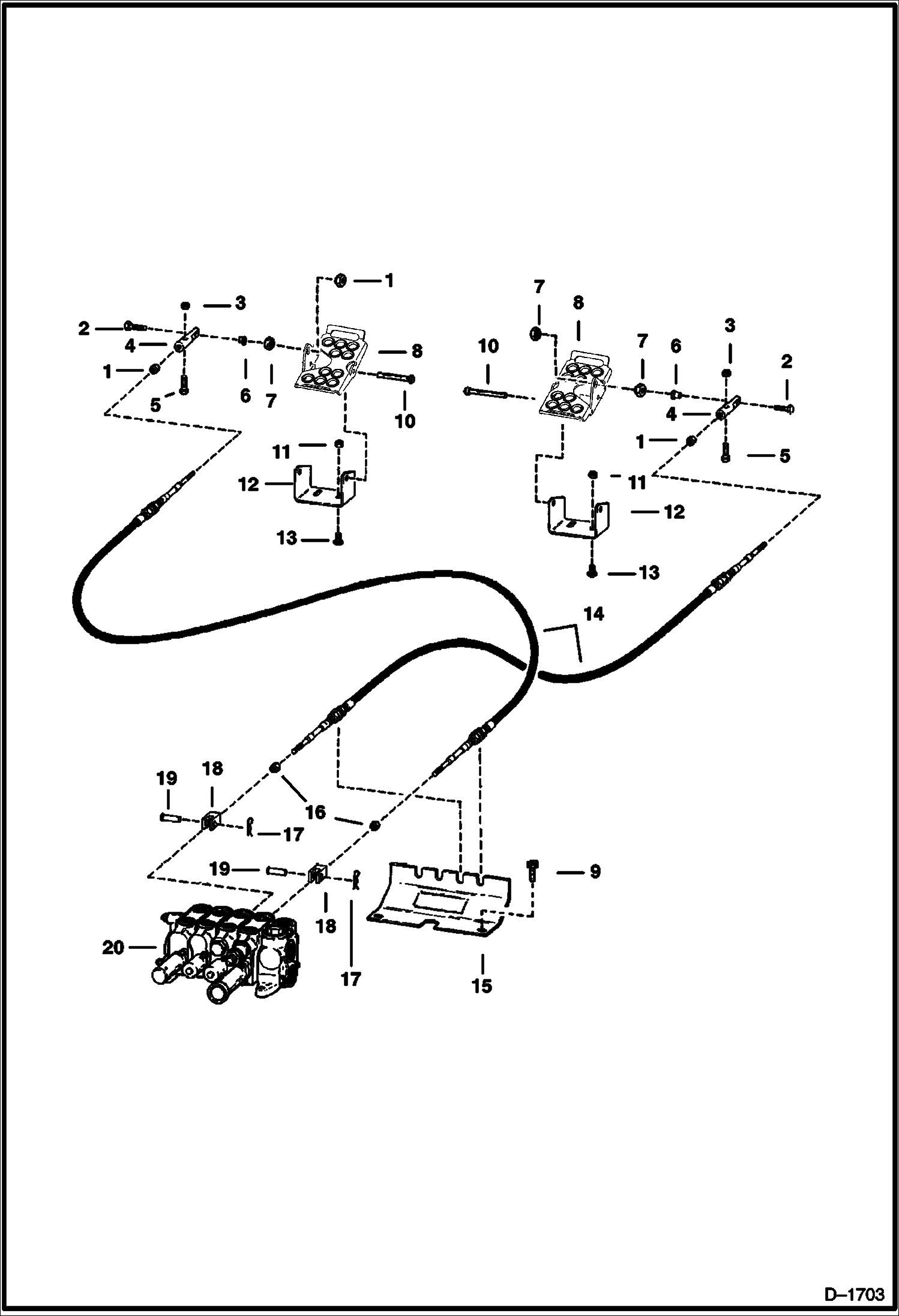

Запчасти Bobcat 900s CONTROL PEDALS HYDRAULIC SYSTEM

1

85D5

NUT 5

2

17C624

BOLT 5

3

85D6

NUT, 5

4

6567138

CONNECTOR

5

73G620

SCREW

6

6579990

WASHER Was 6558429 - A

7

6567710

NUT

8

7115219

PEDAL Was 6726680 - A

9

35C616

BOLT 5

10

6564657

PIN

11

57D6

NUT 5

12

6567147

MOUNT

13

6704349

BOLT Was 37C000616B - B

14

CABLE NLA - .25'' thread ends - Order 6631013 cable & Ref. 18 (6568316 clevis)

14

6631013

CABLE .3125'' thread ends

15

6569674

MOUNT

16

8D5

NUT

17

1306637

CLIP

18

6567709

CLEVIS .25'' thread hole

18

6568316

CLEVIS .3125'' thread hole - Was 6567709 - B

19

4F5062

PIN

20

6631419

VALVE See Illustration CONTROL VALVE/ E1656
