Запчасти Bobcat 900s LIFT CYLINDER HYDRAULIC SYSTEM

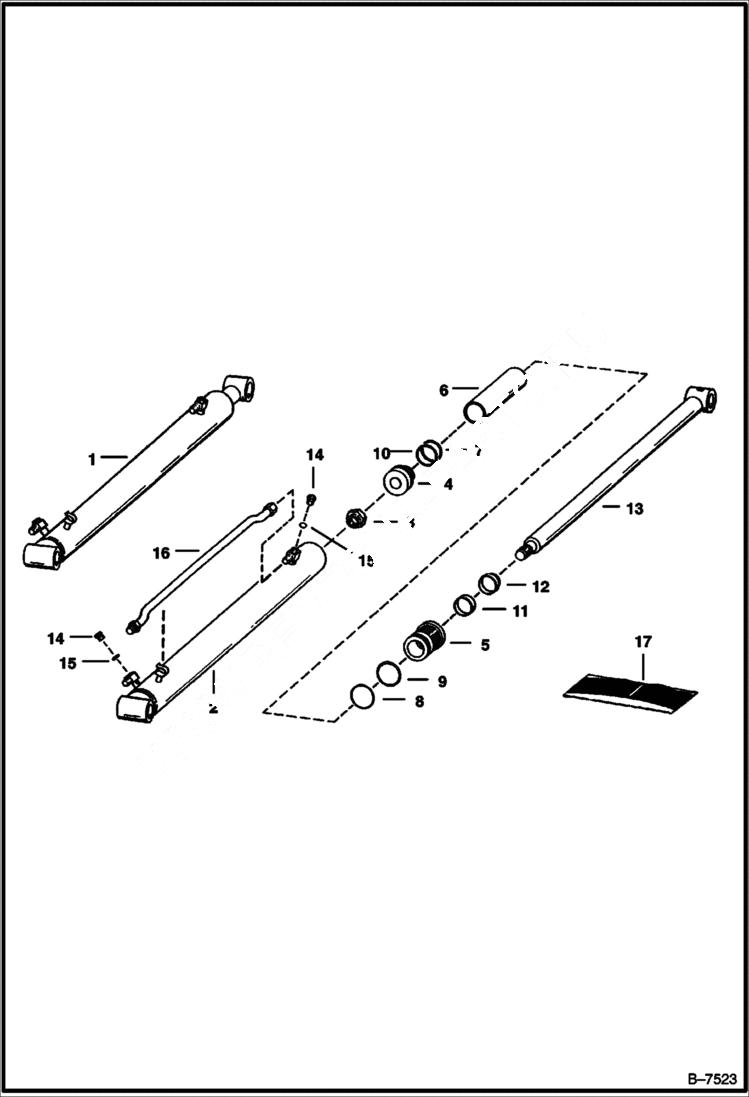

Схема запчастей Bobcat 900s - LIFT CYLINDER HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

CYLINDER NLA - Ref. 2 - 16 - Order 6595512 - Was 6593477 - A

2

CASE NLA - Was 6586880 - A

2

6595958

CASE Also Order 6595957 Tube

3

92D14

NUT Was 86D000014B - A

4

6592573

PISTON

5

6529419

HEAD Was 6592771 - A

6

6592776

SPACER

7

25K30218

O RING 10 Was 54K30218 - B

8

25K40224

O RING 10 Was 54K40224 - B

9

73K232

RING, BACK-UP back-up - Was 80K232 - A

10

947088

RING, BACK-UP

11

6667327

SEAL Was 6538140 - B

12

6686999

WIPER, ROD CYL Was 6666544 - A

13

6592772

ROD

14

47K5

PLUG

15

79K6

O RING 10

16

6592777

TUBE

17

6804603

SEAL KIT Ref. 7 - 12 - Was 6803269 - A

Выбрано товаров: 18
