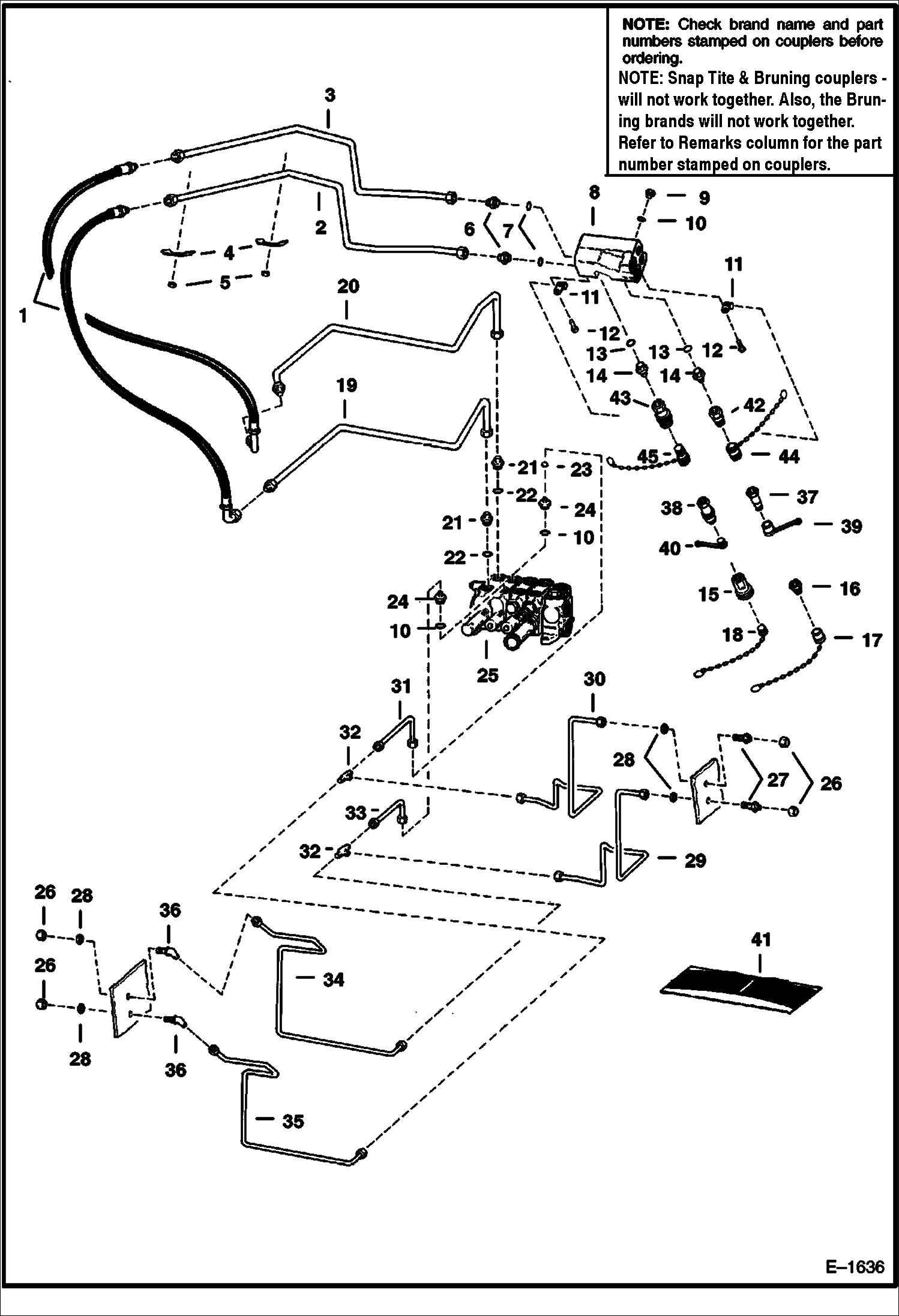

Запчасти Bobcat 900s AUXILIARY HYDRAULIC CIRCUITRY (S/N 11999 & Below) HYDRAULIC SYSTEM

1

6587982

HOSE Was 6569338 - A

2

6568938

TUBE

3

6568939

TUBE

4

6568476

CLAMP

5

85D6

NUT, 5

6

15K10

ADAPTOR W/Ref. 7

7

79K10

O RING 10

8

6567045

BLOCK Was 6576017 - A

9

24K7

PLUG W/Ref. 10

10

79K10

O RING 10

11

30H27

CLAMP

12

35C612

BOLT

13

79K12

O RING 10

14

15K8

FITTING W/Ref. 13

15

COUPLER NLA - snap-tite, female - Order Ref. 37-40 - See Note - Was 2518027B - A

15

VALVE ASSY. NLA - Valve, O-ring & Spring - Was 6632281 - A

15

U-PACKING NLA - inside Coupler - Was 6632280 - A

15

SEAL NLA - Between Halves - Was 6632284 - A

16

COUPLER NLA - snap-tite, male - Order Ref. 37-40 - See Note - Was 2518027B - A

16

VALVE ASSY. NLA - Valve, O-ring & Spring - Was 6632282 - A

16

U-PACKING NLA - inside Coupler - Was 6632280 - A

16

SEAL NLA - Between Halves - Was 6632284 - A

17

CAP NLA - snap-tite - Was 2518020 - A

18

PLUG NLA - snap-tite - Was 2518021 - A

19

6568942

TUBE

20

6568943

TUBE

21

6568995

ADAPTER

22

79K14

O RING 10

23

6569312

ORIFICE .104 - .111 (2,65 - 2,81 mm)

24

731795

CONNECTR

25

6631419

VALVE See Illustration CONTROL VALVE/ E1656

26

36K5

CAP

27

45K5

FITTING

28

86F5

NUT

29

6567502

TUBE

30

6567501

TUBE

31

6567497

TUBE

32

10K5

TEE

33

6567498

TUBE

34

6567504

TUBE

35

6567499

TUBE

36

88F5

ELBOW

37

6641358

COUPLER male - Bruning 8609-037 - Use W/Ref. 38 - See Note

38

6641359

COUPLER female - Bruning 8609-036 - Use W/Ref. 37 - See Note

39

6645231

DUST COVER Use W/Ref. 37

40

6645232

DUST COVER Use W/Ref. 38

41

6648561

SEAL KIT For Ref. 37 & 38 Bruning 8609-036 & 8609-037 Couplers

42

6648970

QUICK COUPLER male - Bruning S-804 - Use W/Ref. 43 - See Note

43

6648968

QUICK COUPLER female - Bruning SM-803 - Use W/Ref. 42 - See Note

43

6655796

SEAL KIT

44

6515599

CAP Use W/Ref. 42

45

6515598

PLUG Use W/Ref. 43
