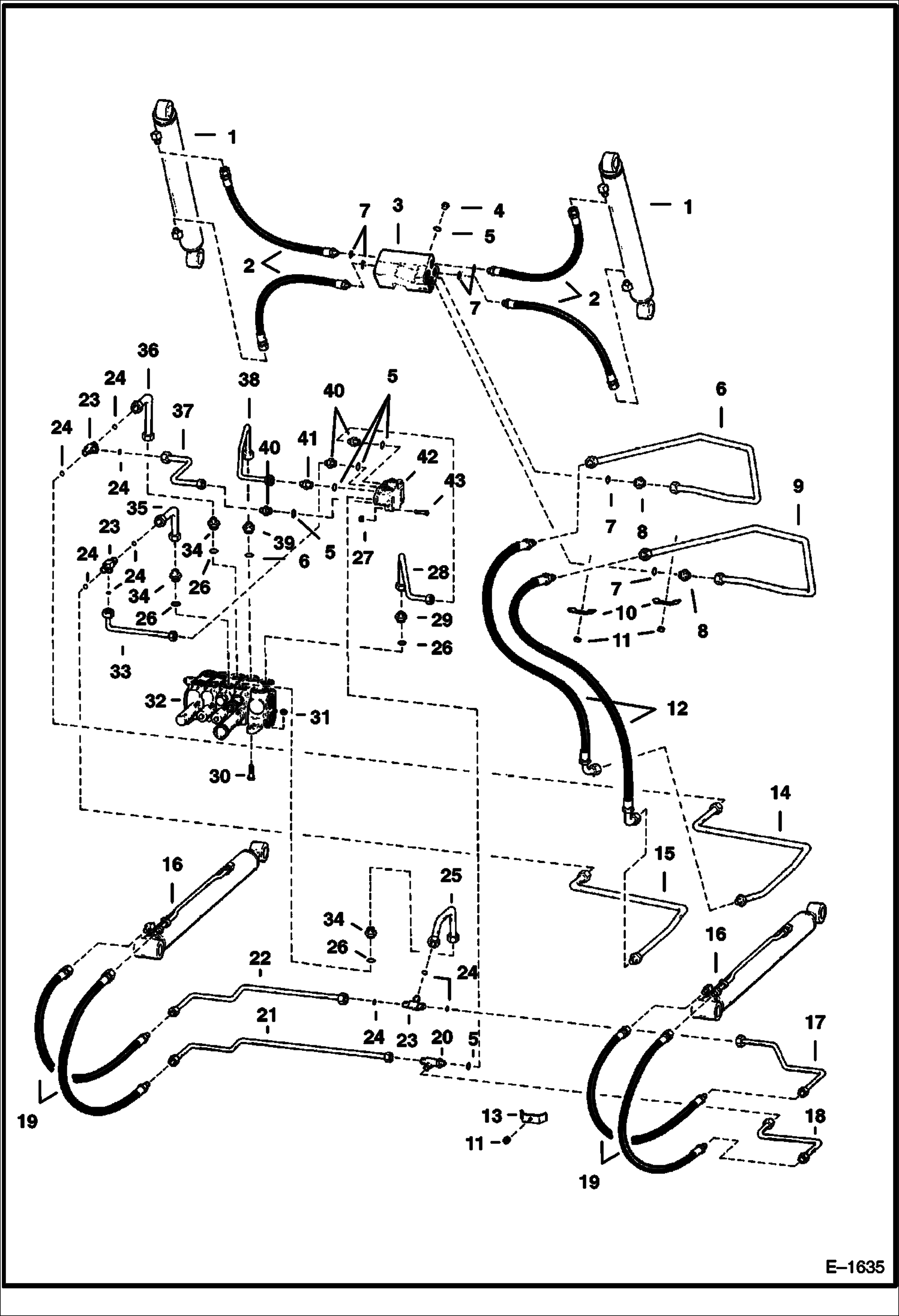

Запчасти Bobcat 900s HYDRAULIC CIRCUITRY (11999 & Below) HYDRAULIC SYSTEM

1

CYLINDER See Illustration TILT CYLINDER/ B13926A - tilt

2

6587981

HOSE Was 6569013 - A

3

6567045

BLOCK Was 6576017 - A

4

24K7

PLUG W/Ref. 5

5

79K10

O RING 10

6

6568940

TUBE

7

79K16

O RING 10

8

15K10

ADAPTOR

9

6568941

TUBE

10

6568476

CLAMP

11

85D6

NUT, 5

12

6587982

HOSE Was 6569338 - A

13

6502203

CLAMP

14

6568944

TUBE

15

6568945

TUBE

16

CYLINDER See Illustration LIFT CYLINDER/ B17693 - lift

17

6568336

TUBE

18

6567326

TUBE

19

6569014

HOSE

20

21K7

TEE W/Ref. 5

21

6569311

TUBE

22

6569310

TUBE

23

56E16

TEE

24

58K21

O RING 10

25

6568949

TUBE

26

79K14

O RING 10

27

85D5

NUT 5

28

6569309

TUBE

29

562912

ADAPT

30

37C828

BOLT Was 6516292 - A

31

85D8

NUT, 5

32

6631419

VALVE See Illustration CONTROL VALVE/ E1656

33

6568338

TUBE

34

6568995

ADAPTER

35

6568948

TUBE

36

6568947

TUBE

37

6568337

TUBE

38

6568946

TUBE

39

6569138

ADAPTER

40

15K7

FITTING W/Ref. 5

41

730963

CONNECTR W/Ref. 5

42

VALVE See Illustration BUCKET POSITION VALVE/ B17800 - NLA - Was 6630065 - A

43

17C532

BOLT 5
