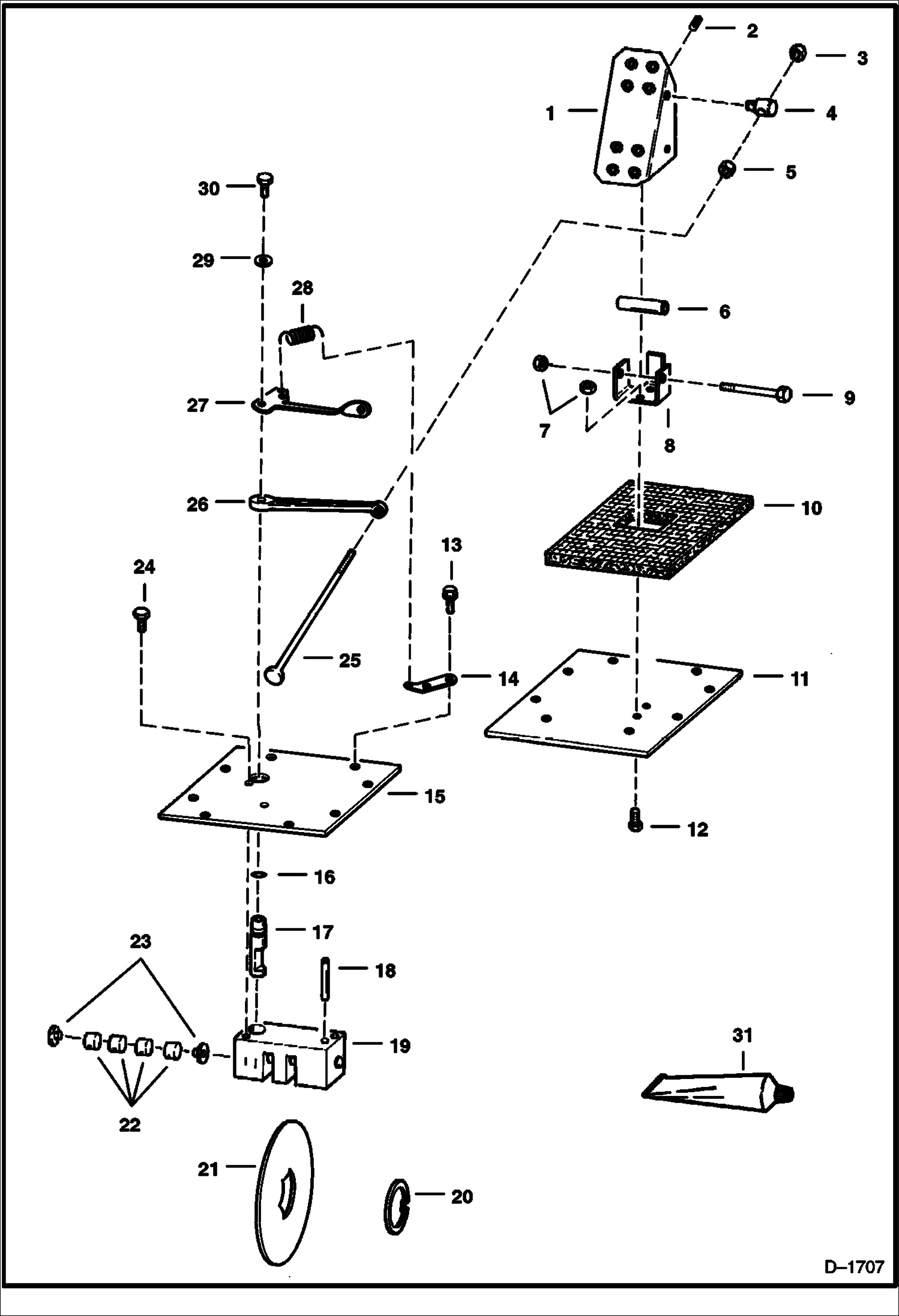

Запчасти Bobcat 900s DISC BRAKE DRIVE TRAIN

1

6567177

PEDAL

2

14J2516

PIN

3

85D8

NUT, 5

4

6563178

PIVOT

5

61D8

NUT 5

6

6564389

BUSHING

7

85D6

NUT, 5

8

6567178

MOUNT

9

17C664

BOLT

10

INSULATION NLA - Was 6567181 - A

11

6567174

COVER

12

17C616

BOLT 5

13

84G3712

BOLT 5

14

6559218

ANGLE

15

6567175

COVER

16

25K30100

O RING 10

17

6562755

PIN

18

784466

DOWEL PIN

19

6562757

BLOCK

20

742666

SNAP RING

21

6559237

DISC

22

6557747

PAD

23

6562756

WASHER wear

24

17C812

BOLT

25

6567179

ROD

26

6563823

LEVER

27

6577552

BRACKET Was 6563173 - A

28

6505076

SPRING

29

6506477

WASHER

30

17C820

BOLT

31

6650388

SEALANT gearcase cover - Was 1802303B - A
