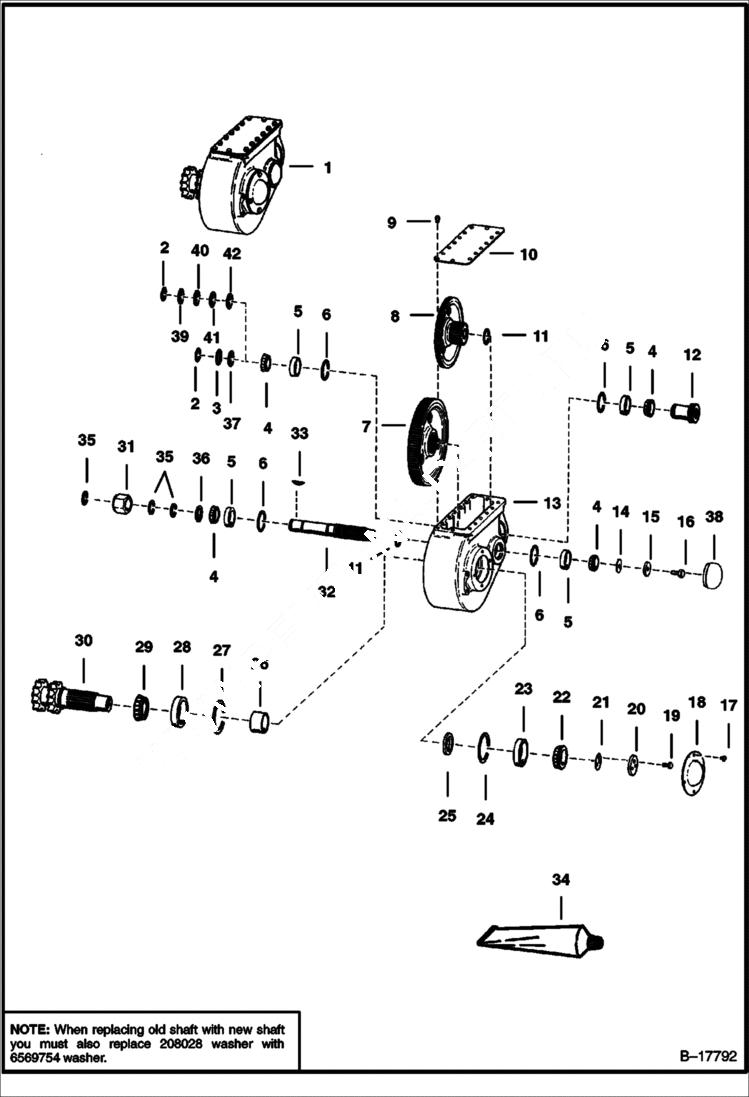

Запчасти Bobcat 900s GEARBOX DRIVE TRAIN

1

GEARBOX ASSY. NLA - Ref. 2 - 32 - Order components - 19 tooth - Was 6565821

1

GEARBOX ASSY. NLA - Ref. 2 - 32 - 18 tooth - Order components - Was 6569837 - A

2

6565844

SNAP RING .053 - .057 Thick

2

663834

SNAP RING .059 - .065 Thick - Was 663844 - D

3

208028

WASHER

4

6648774

BEARING Was 743778B - A

5

6648776

RACE Was 743777B - A

6

6565839

SNAP RING

7

6565834

GEAR

8

GEAR NLA - helical - Order 6596222 gear & 6596221 gear - Was 6567961 - A

8

6596222

GEAR straight

9

17C612

BOLT 5

10

6565826

COVER

11

6568731

SNAP RING

12

GEAR NLA - 19 Tooth Ext. - 15 Tooth Int. - helical - Order 6596221 gear & 6596222 gear - Was 6565843 - A

12

GEAR NLA - 18 Tooth Ext. - 15 Tooth Int. - helical - Order 6596221 gear & 6596222 gear - Was 6569687 - A

12

6596221

GEAR straight

13

GEARBOX NLA - Was 6595633 - A

14

6565838

SHIM .007 Thick

14

6589886

SHIM .003 Thick

15

6558234

WASHER

16

17C1220

BOLT

17

17C508

BOLT

18

6565825

CAP

19

17C820

BOLT

20

6565830

CAP

21

6701378

SHIM Was 6565827 - A

22

6648784

BEARING Was 5292915B - A

23

6648785

RACE Was 730503B - A

24

223879

RING

25

6565829

COLLAR

26

6565828

COLLAR

27

6565831

SNAP RING

28

6648779

RACE Was 731994B - A

29

6648778

BEARING Was 742273 - A

30

6565832

SHAFT

31

6565840

HUB brake disc

32

SHAFT NLA - Order 6597294 & 6569754 washer - See Note - Was 6565837 - A

32

6597294

SHAFT See note - Was 6569753 - A

33

6J1210

KEY

34

6650388

SEALANT Was 1802303B - A

35

663834

SNAP RING

36

208028

WASHER .08 Thick

36

6569754

WASHER .300 Thick

37

6532677

WASHER .075 Thick

38

6565289

CAP

39

6589887

SHIM .060 Thick

40

6596496

SHIM .020 Thick - Was 6589890 - A

41

6589889

SHIM .010 Thick

42

6589888

SHIM .003 Thick
