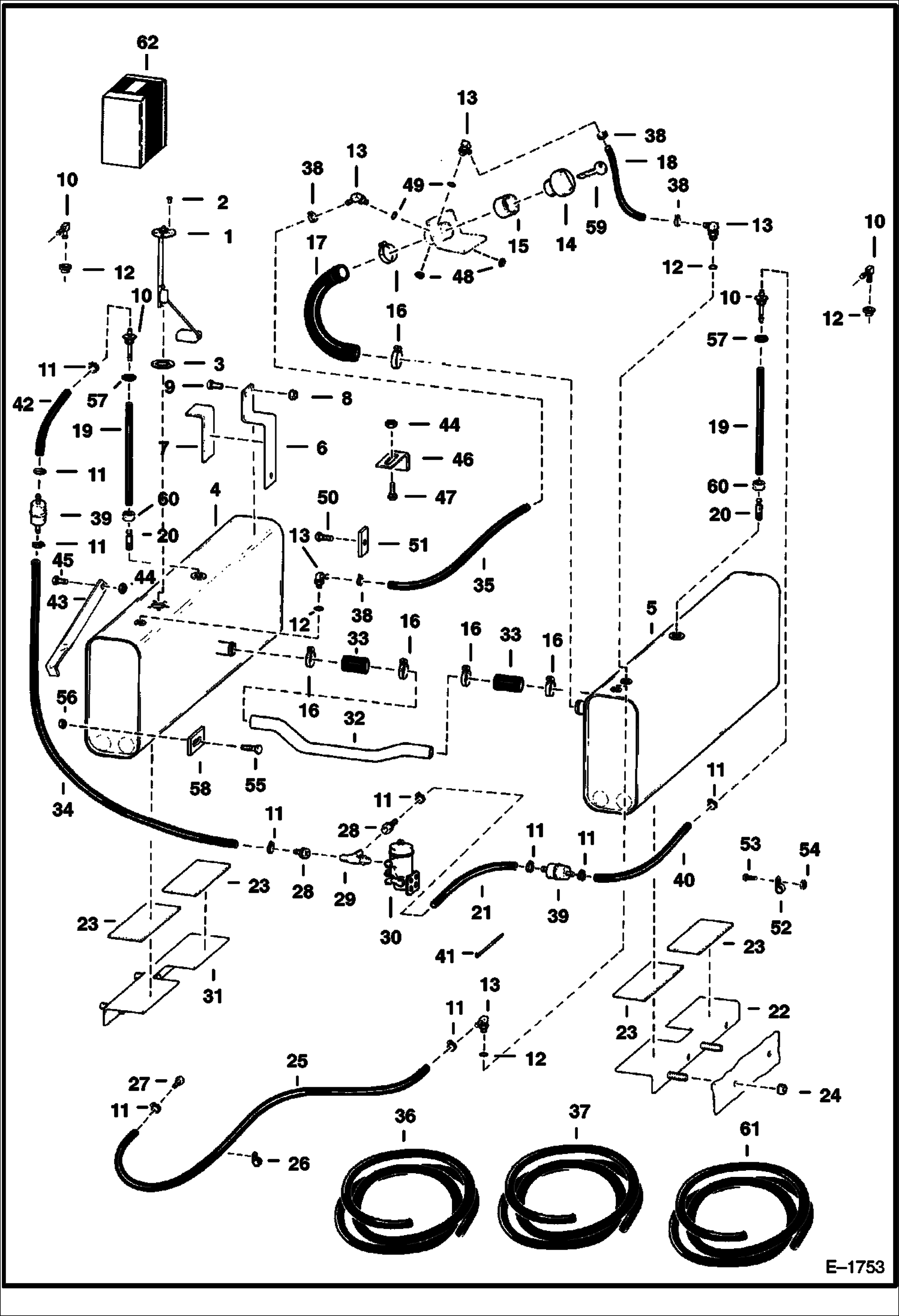

Запчасти Bobcat 900s FUEL SYSTEM (S/N 11999 & Below) MAIN FRAME

1

SENDER, FUEL See BTI398 - NLA - W/Ref. 3 - Was 6630248 - A

2

86G1008

SCREW

3

6630972

GASKET

4

6567211

TANK LH

4

6571816

TANK LH

5

6567210

TANK RH

5

TANK NLA - RH - Was 6569949 - A

6

6567271

BRACKET W/Ref. 7

7

6567283

STRIP rubber

8

57D6

NUT 5

9

17C616

BOLT 5

10

6598908

ELBOW 90 degree - Was 6681462 - A

10

6518596

ADAPTER straight fitting

11

6631494

CLAMP

12

6553411

BUSHING 0.38'' ID

12

79K5

O RING 10

13

ELBOW NLA - W/Ref. 49 - flat boss face - Was 6657083 - A

13

6715183

ELBOW W/Ref. 49 - check boss face to determine correct replacement o-ring

14

6661114

CAP. DIESEL fuel - green - Was 6632468 - B

14

CAP NLA - locking - W/Ref. 59 - Code GC020 - Was 6654373 - A

14

6661696

CAP, FUEL LOCKING locking - W/Ref. 59 - Code PK510

15

6567274

ADAPTER

16

42H32

HS CLAMP5 Was 42H000024B - B

17

HOSE NLA - Was 6567273 - A

18

HOSE NLA - 12'' (304,8mm) long - Order Ref. 36

19

HOSE NLA - 13'' (330,2mm) long - Order Ref. 61 - Was 6568362 - A

20

6650239

SCREEN, FUEL PICKUP Was 6598911 - A

21

HOSE NLA - 45'' (1143mm) long - Order Ref. 37

22

6568264

BRACKET W/Ref. 23

23

6568262

STRIP rubber

24

83D12

NUT

25

HOSE NLA - 45'' (1143mm) long - Order Ref. 37

26

30H31

CLAMP 10

27

6560160

TUBE excess fuel

28

6630794

ADAPTER

29

21K4

TEE

30

FUEL PUMP See Illustration FUEL PUMP/ A1967

31

6568656

BRACKET W/Ref. 23

32

6568259

TUBE

33

6568260

HOSE

34

HOSE NLA - 35'' (889mm) long - Order Ref. 37

35

HOSE NLA - Vent - 32'' (812,8mm) long - Order Ref. 36

37

6577821

HOSE bulk - sold per foot - Was 672221 - A

38

6631495

CLAMP

39

6511393

FILTER

40

HOSE NLA - 3'' (76,2mm) long - Order Ref. 37

41

6610510

TIE

42

HOSE NLA - 20'' (508mm) long - Order Ref. 37

43

6571968

STRAP Was 6571965 - A

44

83D6

NUT 5

45

17C620

BOLT

46

6571967

BRACKET

47

37C616

BOLT Was 6514537 - D

48

22K4

NUT

49

79K5

O RING 10 flat boss face

49

99K5

O-RING tapered boss face

50

17C616

BOLT 5

51

6571975

STOP threaded

52

30H29

CLAMP

53

17C412

BOLT 5

54

61D4

NUT 5

55

6557432

BOLT

56

61D6

NUT 5 Use W/Ref. 4 (6571816 tank)

57

6504426

GASKET

58

6571976

STOP slotted

59

6654374

KEY Code GC020

59

6587458

KEY Code PK510

60

6661213

RING, COMPRESSION

61

6569752

HOSE BULK/FT bulk - sold per foot
