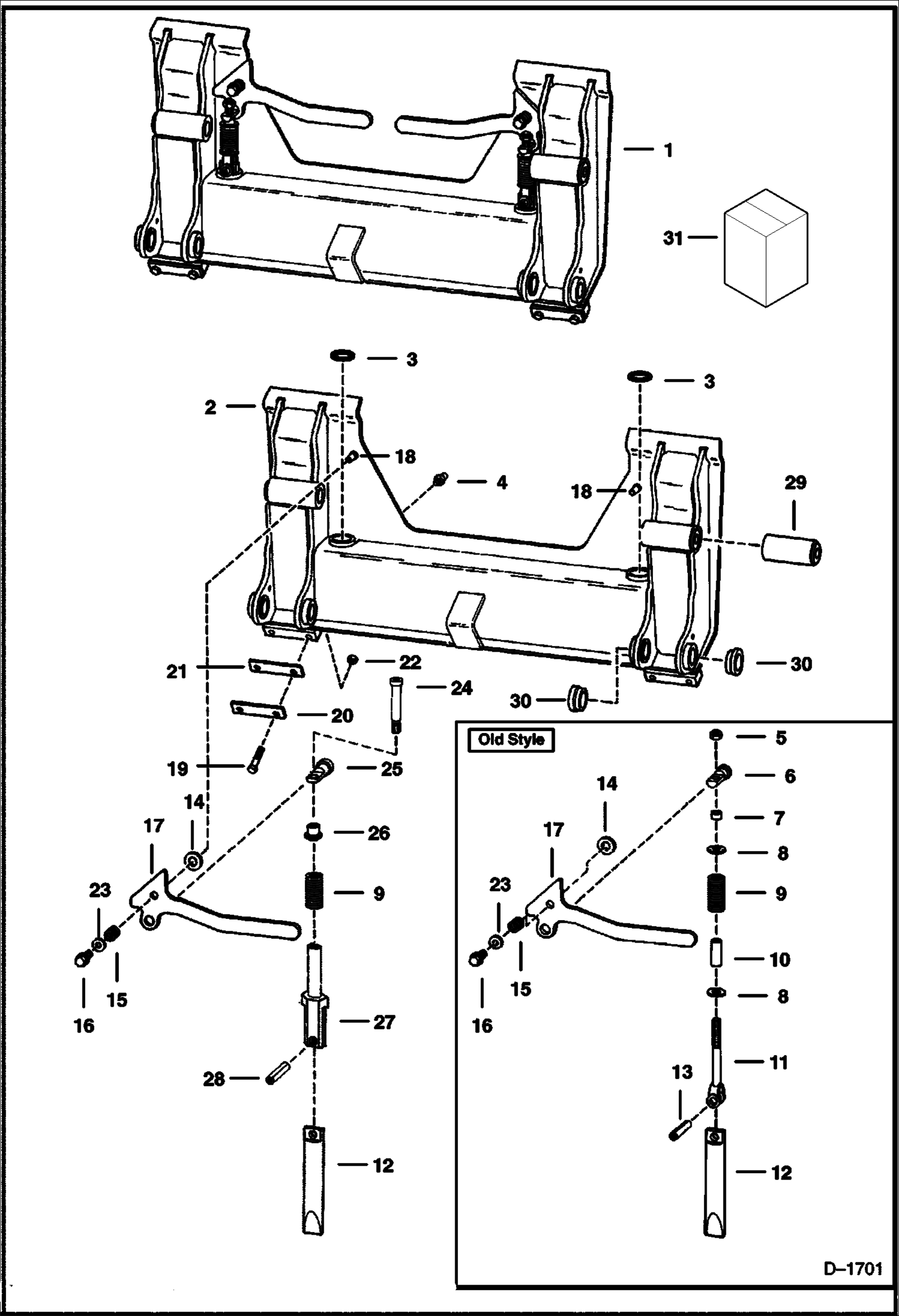

Запчасти Bobcat 900s BOB-TACH MAIN FRAME

1

6565871

BOB-TACH Ref. 2 - 23 - Also order 6561383 decal - Was SALES - A

2

FRAME NLA - Order Ref. 1 - Was 6565865 - A

2

FRAME NLA - Order Ref. 1 - Was 6538635 - A

3

6631067

SEAL, OIL

4

10H35

FITTING, GREASE 10

5

86D8

NUT

6

6565858

PIVOT

7

6565854

SPACER

8

1303141

SPACER

9

6578253

SPRING, COMPRESSION Was 6562018 - A

10

6569306

GUIDE

11

ROD NLA - Was 6571551 - A

12

6565853

WEDGE

13

14J5040

PIN

14

6568498

WASHER

15

6704453

SPRING Was 6578252 - A

16

35C610

BOLT 5

17

6569629

LEVER LH

17

LEVER NLA - RH - Order 6569630 - Was 6565856 - A

17

6569630

LEVER RH

18

6565859

STUD

19

17C628

BOLT

20

6568823

STOP

21

6568824

SHIM

22

85D6

NUT, 5

23

619021

WASHER, 5

24

6572050

BOLT

25

6572009

PIVOT

26

6572051

BUSHING

27

6704248

PIVOT, WEDGE Was 6576454 - A

28

14J5032

PIN, STRAIGHT Was 14J005044B - A

29

6568496

BUSHING Weld On

30

6568166

BUSHING Weld On
