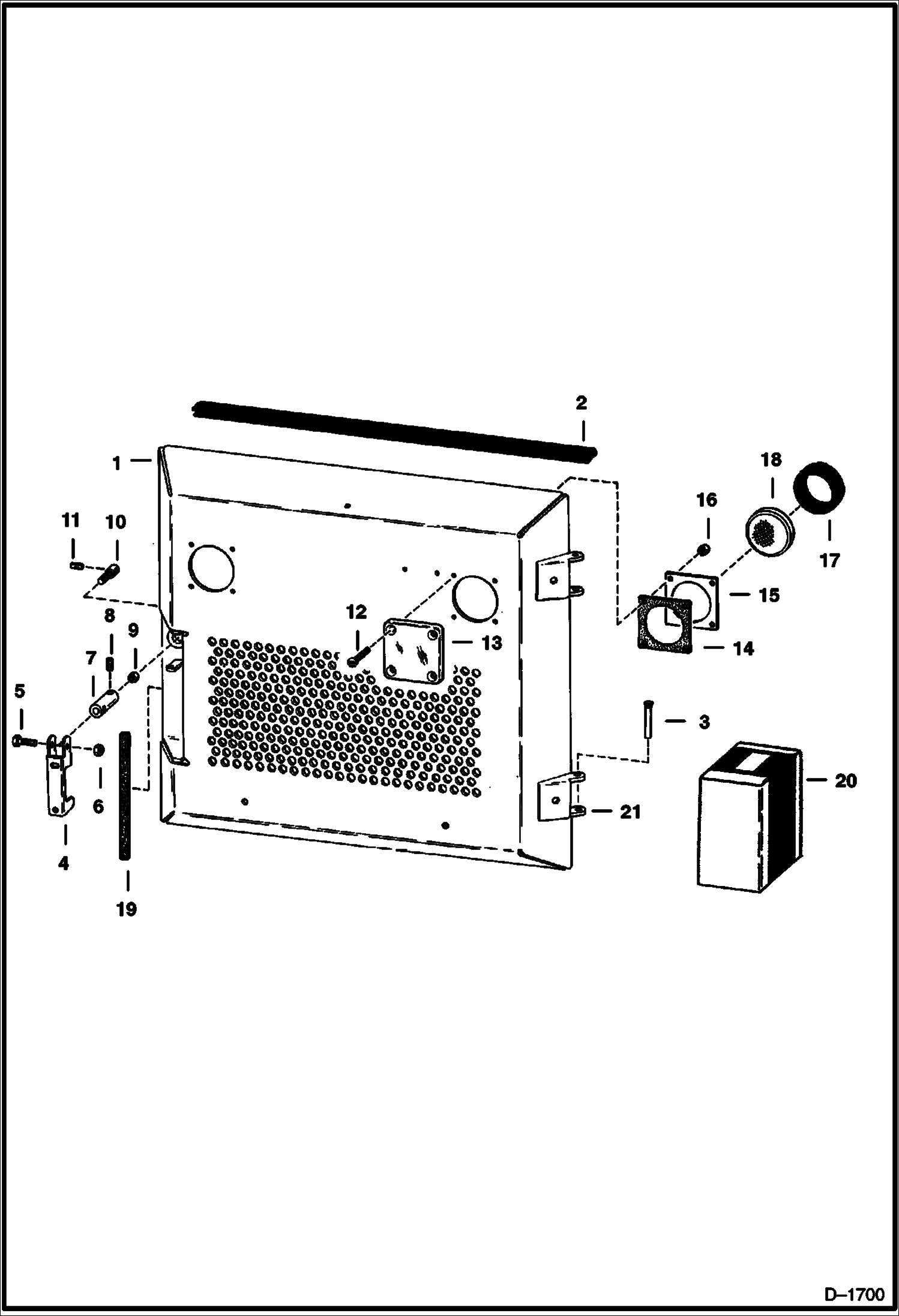

Запчасти Bobcat 900s REAR DOOR MAIN FRAME

1

REAR DOOR NLA - Order 6589808 , 6707789 (2), 6665922 (2), 6705980 (2), 6703796 (2) - Was 6567494 - A

2

6630138

MOULDING bulk - Sold Per Foot

3

6564340

PIN

4

6563681

HANDLE

5

38C624

BOLT 5 Was 6564599 - A

6

85D5

NUT 5

7

6565628

NUT

8

33G404

SET SCRW5

9

6565627

NUT

10

6565629

SCREW

11

6599361

PIN

12

89G520

SCREW Was 7G000516B - D

13

6576274

LENS shield - Was 6568517 - A

14

6568644

GASKET

15

6568645

FLANGE

16

85D5

NUT 5

17

RING NLA - Was 6630331 - A

18

LIGHT See Illustration ENGINE ELECTRICAL/ E1654

19

SEAL NLA - rear door - bulk - sold per foot - Was 6632217 - A

20

6579448

LATCH KIT Ref. 4 - 11

21

6562225

HINGE
