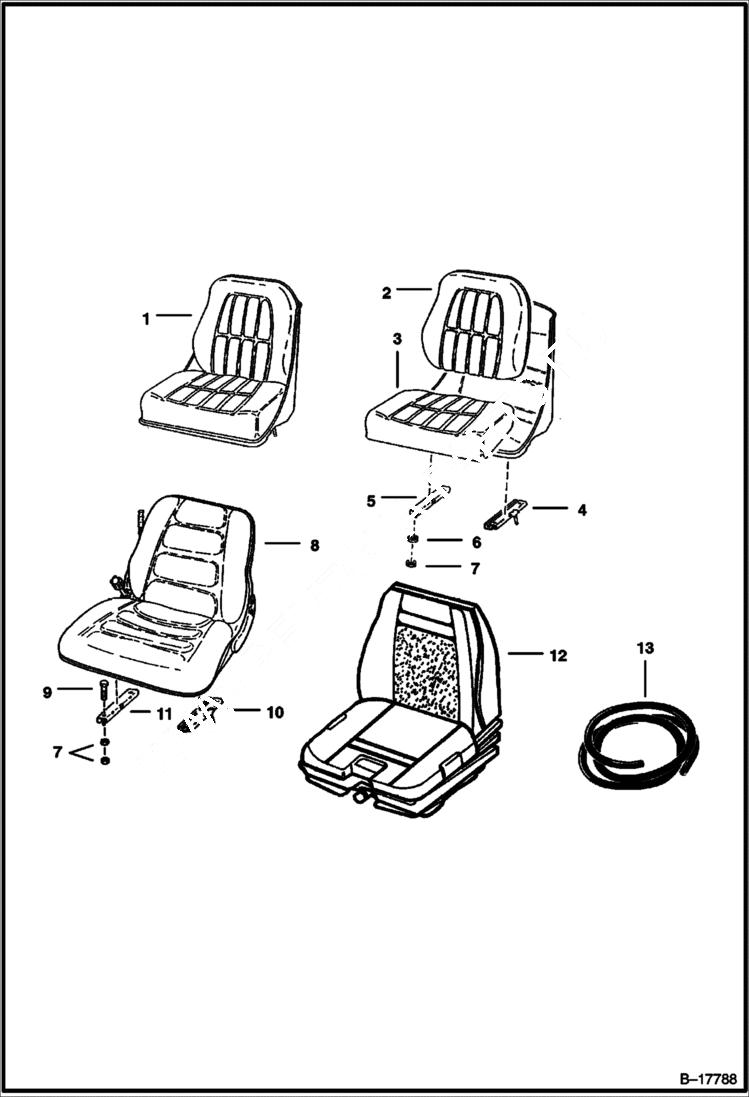

Запчасти Bobcat 900s SEAT MAIN FRAME

1

SEAT NLA - std. - W/Ref. 2 - 7 - Order 6669135 - Was 6563140 - A

2

6630465

CUSHION back

3

6630468

CUSHION seat

4

6630469

TRACK W/Latch

5

6599780

TRACK W/O Latch

6

4E5

WASHER

7

85D5

NUT 5

8

SEAT NLA - susp - W/Ref. 10 & 11 - Grammer - Order 6674019 - Was 6632388 - A

8

3737010

CUSHION, SEAT seat

8

3737081

BACKREST back

9

35C512

BOLT

10

3737000

TRACK W/Adjusting Handle

11

3737001

ADJUSTER W/O Adjusting Handle

12

6674019

SEAT See Illustration SUSPENSION SEAT/ D1897 - Milsco- Was 6647432 - A

13

6652935

EDGING 96'' (2438,4mm) - for Ref. 2 & 3

13

6665656

CLIP
