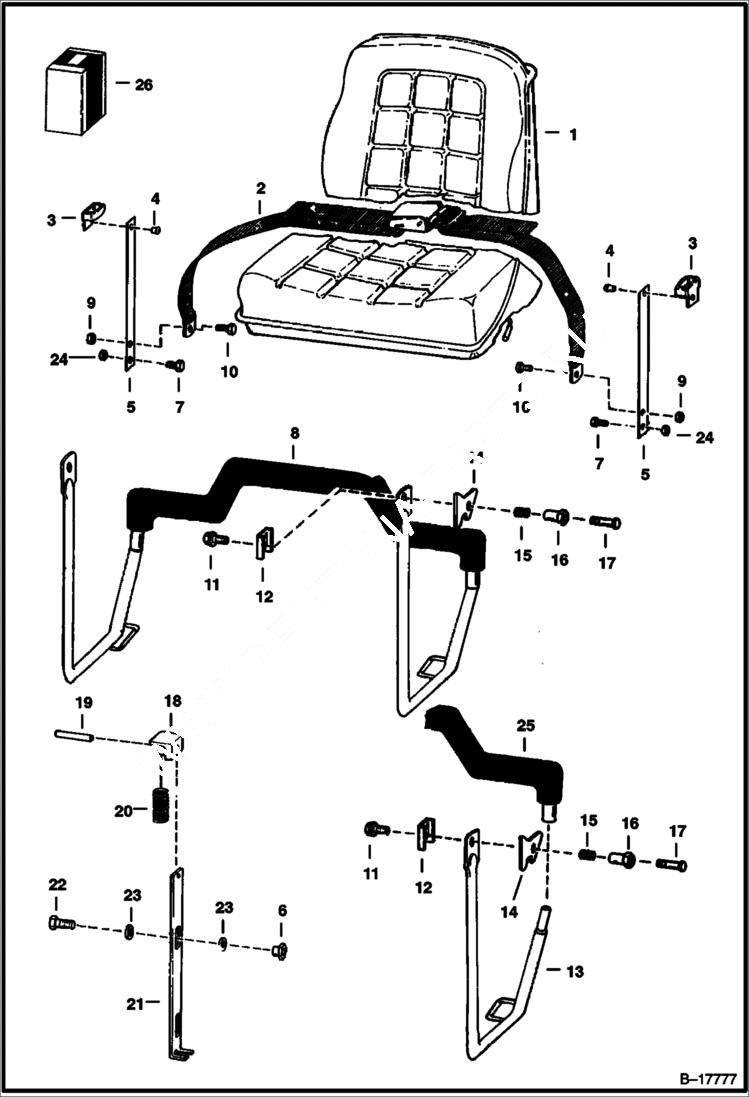

Запчасти Bobcat 900s SEAT & SEAT BAR MAIN FRAME

1

SEAT See Illustration SEAT/ B17788

2

SEAT BELT NLA - Order Ref. 26 - Was 6564774 - A

2

SEAT BELT NLA - Order 6675074 seat belt & (2) of Ref. 5 (6725373 spring plate) - Was 6667875 - A

2

SEAT BELT NLA - W/spring plates - Order 6675074 seat belt & (2) of Ref. 5 (6725373 spring plate) - Was 6725403 - A

2

6675074

SEAT BELT W/O spring plates

3

GUIDE NLA - Order 6703703 - Was 6565355

4

6630207

RIVET 5 Was 6512797 - A

5

GUIDE NLA - assy. W/Ref. 3 & 4 - 13.75'' - Used W/Ref. 2 (NLA/6564774 seat belt) - Was 6565354 - A

5

GUIDE ASSY. NLA - assy. W/Ref. 3 & 4 - 12.35'' - Used W/Ref. 2 (NLA/6667875 seat belt) - Order 6711908 spring plate, Ref. 3 & (2) of Ref. 4 - Was 6711907 - A

5

6711908

SPRING PLATE Use W/ Ref. 2 (NLA 6667875 seat belt)

5

6725373

SPRING PLATE Use W/Ref. 2 (6675074 seal belt)

6

6559479

NUT

7

17C612

BOLT 5

8

SEAT BAR See BTI298 NLA - Was 6569984 - B

9

85D7

NUT

10

17C716

BOLT

11

17C612

BOLT 5

12

6563557

WASHER

13

ARM See BTI298 NSS

14

6563313

RETAINER

15

6704453

SPRING Was 6578252 - A

16

6568742

BUSHING

17

35C608

BOLT

18

6563148

BLOCK, SPRING

19

14J2512

PIN 5

20

6702430

SPRING, COMPRESSION Was 6563149 - A

21

6567130

LOCK

22

17C612

BOLT 5

23

6700170

WASHER Nylon - Was 6563152 - A

24

85D6

NUT, 5

25

SEAT BAR See BTI298 NLA - Was 6569984 - A

26

KIT NLA - Order Ref. 2 (6675074 seat belt) & (2) of Ref. 5 (6725373 spring plate) - Was 6713061 - A
