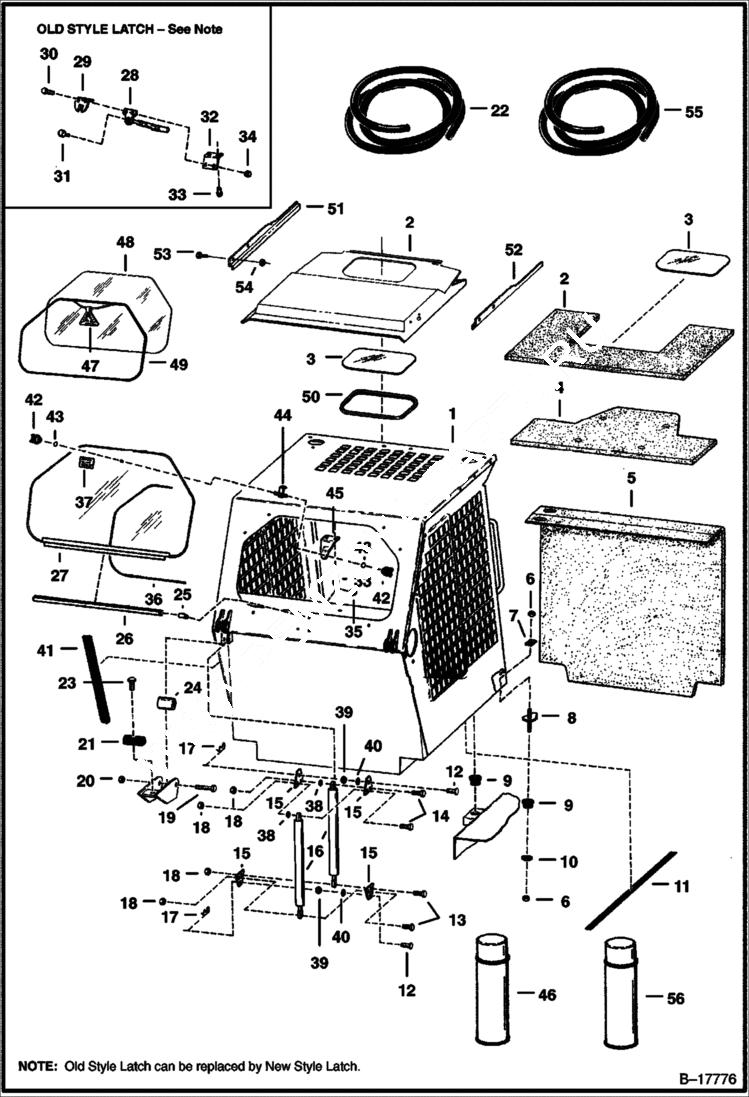

Запчасти Bobcat 900s OPERATOR CAB MAIN FRAME

1

CAB See BTI290 NLA - Was SALES

2

6565373

INSULATION

2

6706553

INSULATION

3

6701986

WINDOW Glued on W/Ref. 56 - 10.5'' x 17'' (266,7 mm x 431,8 mm) opening in Cab - Was 6563391 - A

3

6705735

WINDOW Use W/Ref. 50 - 8'' x 15'' (203,2 mm x 381 mm) opening in Cab

4

6567572

INSULATION

5

6567571

INSULATION

6

85D8

NUT, 5

7

6553709

WASHER

8

6702971

BOLT Was 6568398 - A

9

6560633

DAMPENER rubber

10

6515817

WASHER

11

SEAL NLA - LH - Was 6569948 - A

11

SEAL NLA - RH - Was 6569949 - A

12

2F8127

PIN

13

17C524

BOLT

14

17C520

BOLT 5

15

6568320

BRACKET

15

6577041

BRACKET

16

GAS SPRING NLA - Order 6700171 Spring & 25E000015B Washer - Was 6631727 - A

16

6700171

GAS SPRING w/o lock - also order 6675257, clevis - Was 6706590 - A

16

6714062

KIT heavy duty gas spring for Use W/cab enclosure kit

16

91G416

SCREW

16

6900531

INSTRUCTIONS For Kit 6714062

17

6631418

RING, RETAINING

18

85D5

NUT 5

19

17C1056

BOLT

20

83D10

NUT 5

21

6568475

STOP

22

6658352

MOULDING bulk - sold per foot

23

84G2516

BOLT Was 61G000416B - B

24

6562602

BUSHING rubber

25

6576513

BOLT Was 6630927 - A

26

6630926

HINGE

27

6630925

WINDOW

28

LATCH NLA - W/Ref. 31 - Order Ref. 42-45 - Was 6630929 - A

29

CLIP NLA - Order Ref. 42-45 - Was 6630928 - A

30

85G1014

SCREW

31

KNOB NLA - Was 6631665 - A

32

6568540

MOUNT

33

84G3112

BOLT 5

34

12D10

NUT

35

59D4

NUT 5

36

6555351

SEAL bulk - sold per foot

37

6631625

DECAL For Old Style Latch

38

25E15

WASHER Was 25E000014B - B

39

763906

BUSHING

40

25E20

WASHER

41

6632045

SEAL bulk - Sold Per Foot

42

6571529

KNOB

43

58K109

O RING 10

44

6571532

BRACKET

45

6571533

MOUNT

46

6632469

ADHESIVE

47

6731478

EXIT TAG Was 6559515 - A

48

6704891

WINDOW Was 6703021 - A

49

MOULDING NLA - 83.25'' (2114,55mm) long - Order Ref. 22 - Was 6703019 - A

49

SAFETY CORD NLA - 84'' (2133,6mm) long - Order Ref. 55 - Also Order Ref. 47 (6731478 exit tag) - Was 6703020 - A

50

6664351

SEAL Rubber

51

6703160

TRACK LH

52

6703159

TRACK RH

53

35C410

BOLT 5

54

83D4

NUT 10

55

6554149

CORD, BULK/FT bulk - sold per foot

56

6555350

ADHESIVE rubber - Use W/Ref. 3 (6701986 window)
