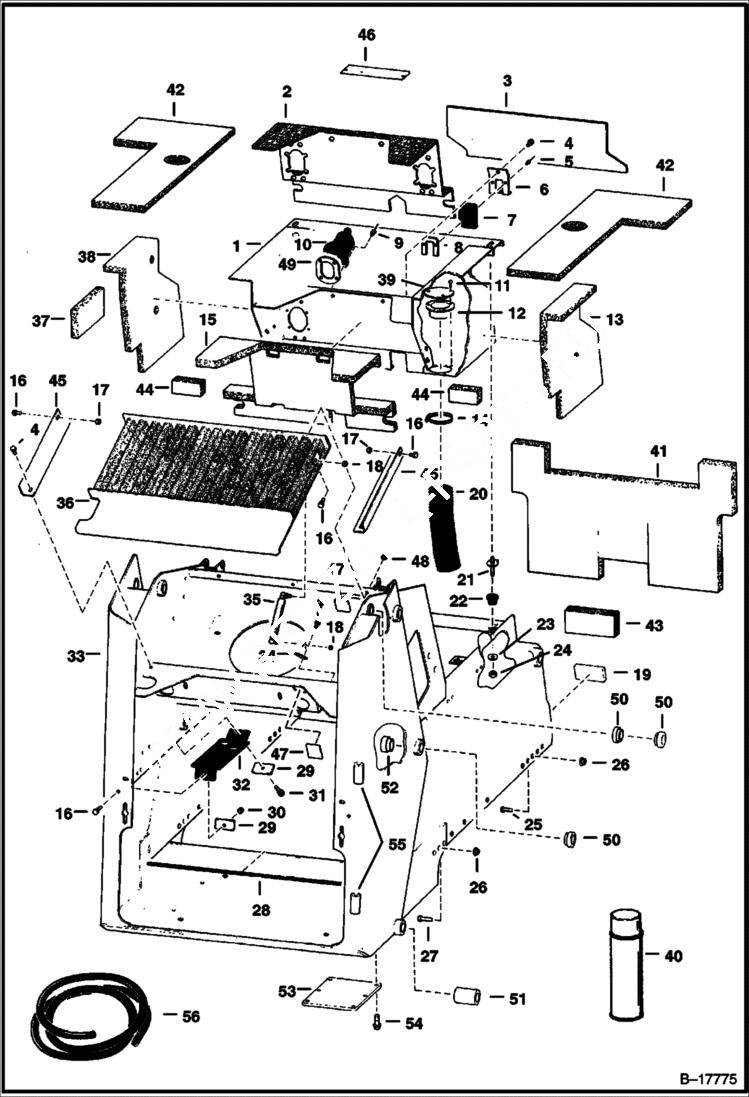

Запчасти Bobcat 900s MAIN FRAME & ATTACHING PARTS MAIN FRAME

1

6589728

MOUNT Was 6569513 - A

2

6571670

INSULATION

3

6568790

INSULATION

4

84G3712

BOLT 5

5

6630207

RIVET 5 Was 6512797 - A

6

6569520

BRACKET

7

BOOT NLA - Was 6565013 - A

8

6568318

CLAMP

9

6658691

RIVET Was 6632113 - A

10

6532127

BOOT W/Ref. 49 - Was NLA - A

11

58G1008

SCREW

12

6568057

FLANGE

13

6568792

INSULATION

14

42H64

CLAMP

15

6571671

INSULATION

16

17C616

BOLT 5

16

9G616

SCREW

17

61D6

NUT 5

18

61D5

NUT

19

6567459

BOOM STOP

20

HOSE NLA - 15.5'' (393,7 mm) long - Order Ref. 56

21

6702971

BOLT Was 6568398 - A

22

6560633

DAMPENER rubber

23

6515817

WASHER

24

85D8

NUT, 5

25

31C1228

BOLT Was 17C001228B - B

26

83D12

NUT

27

31C1232

SCREW Was 17C001232B - B

28

6511855

SEAL self adhesive - bulk - sold per foot

29

6567487

WASHER

30

85D6

NUT, 5

31

84G3716

SCREW 5

32

6567486

SEAL

33

6567437

MAIN FRAME

33

6576500

MAIN FRAME

34

6568766

BRACKET

35

6630797

GAS SPRING

36

SHIELD NLA - Was 6569328 - A

37

6568794

INSULATION

38

6568791

INSULATION

39

6569263

PLUG

40

6632469

ADHESIVE insulation - Spray Can

41

6575587

INSULATION

42

6575588

INSULATION

43

6575589

INSULATION

44

6575594

INSULATION

45

6567348

ANGLE

46

6576284

COVER

47

6577461

COVER

48

57D6

NUT 5

49

PLATE NSS - Order Ref. 10 - Was 6536392 - A

50

6565862

BUSHING weld on

51

6567442

BUSHING weld on

52

6575922

BUSHING weld on

53

6587528

PLATE Use W/Ref. 33 (6576500 main frame)

54

35C616

BOLT 5

55

6562224

BUSHING hinge - weld-on

56

6674744

HOSE Bulk - Sold Per Foot
