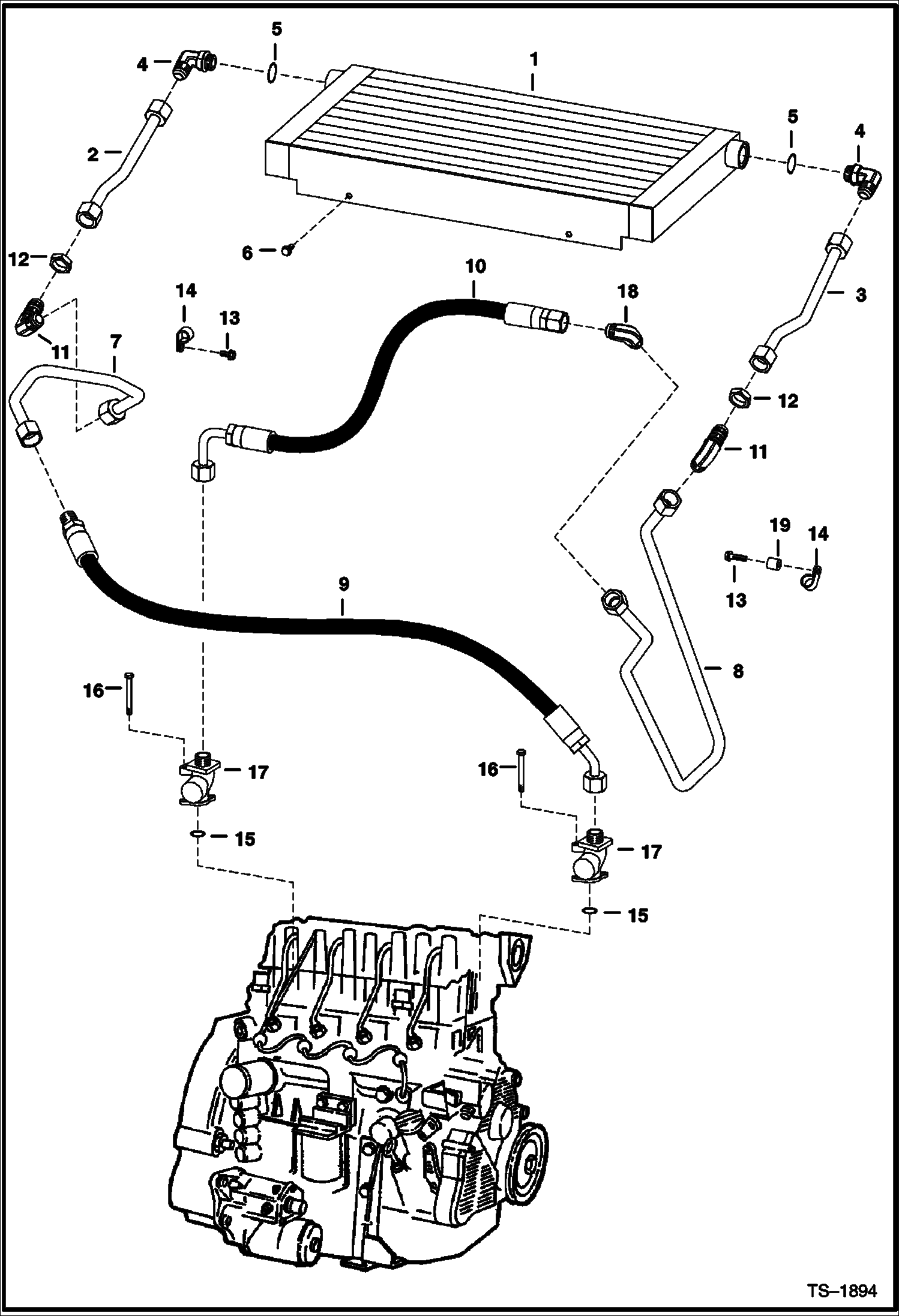

Запчасти Bobcat 800s COOLING SYSTEM POWER UNIT

1

6710791

COOLER oil

2

6719208

TUBELINE

3

6719209

TUBELINE

4

17KB1212

FITTING, HYD ELBOW tapered boss face - W/Ref. 5 - Was 17KV00008B - A

4

97K12

O'RING flared end

5

99K12

O RING tapered boss face

6

35C612

BOLT

7

6717137

TUBE

8

6719560

TUBELINE

9

6712143

HOSE

10

6712144

HOSE, HYD ASSY

11

88F8

FITTING tapered boss face - Was 88FN00008B - A

11

97K12

O'RING flared end

12

86F8

NUT 5

13

84G3124

SCREW

14

30H44

CLAMP Was 30H000042B - B

15

6666712

O-RING

16

6666696

BOLT

17

6666762

ADAPTER

18

77F8

ELBOW Was 77FN00008B - A

19

6529464

BUSHING
