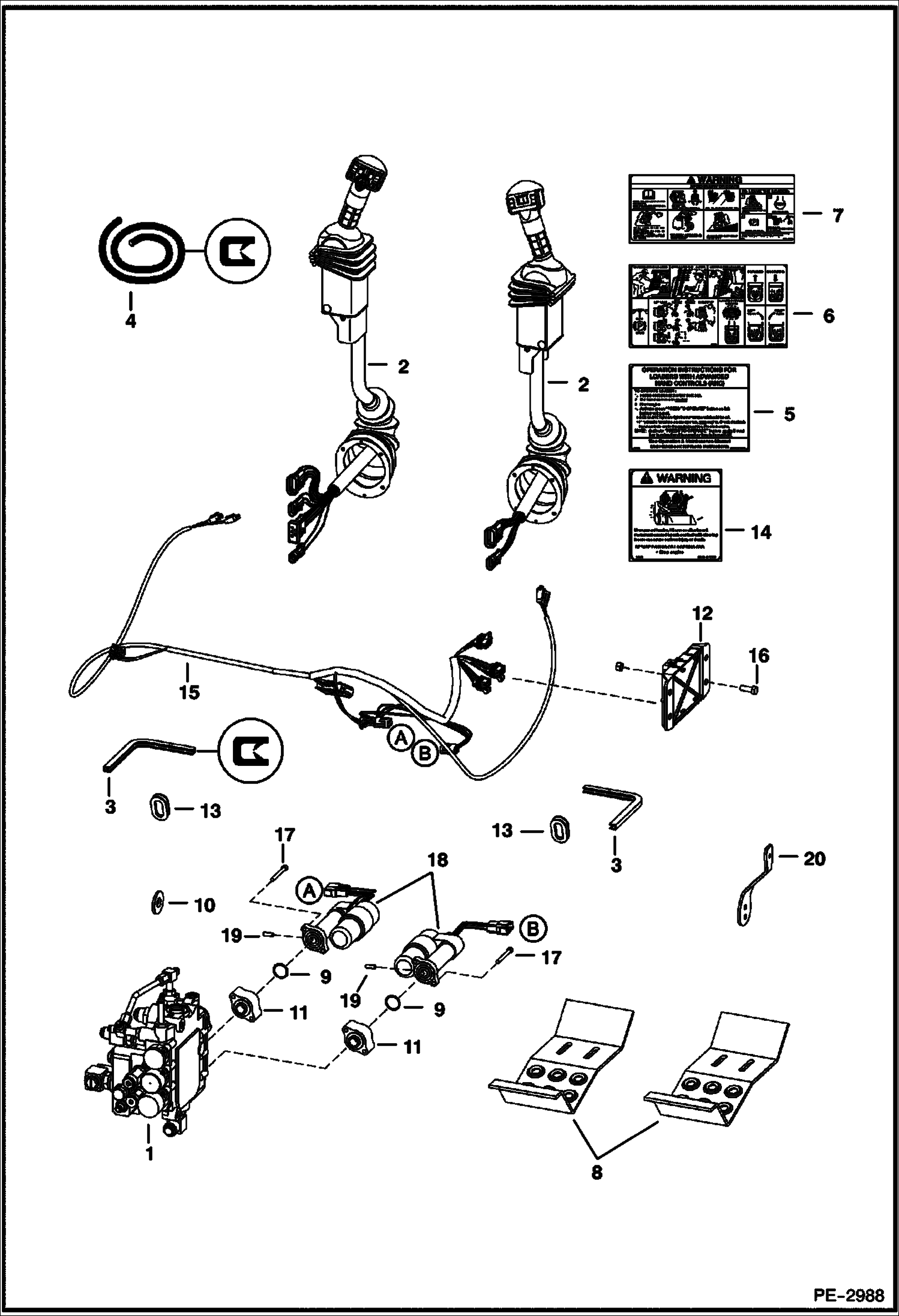

Запчасти Bobcat 800s ELECTRICAL CONTROLS (Advanced Hand Control Option) ELECTRICAL SYSTEM

1

VALVE See Illustration HYDRAULIC CONTROL VALVE/ MS1618

2

LEVER See Illustration CONTROLS ELECTRICAL/ PE2992 tilt - R.H.

2

6675750

LEVER See Illustration CONTROLS ELECTRICAL/ PE2992 lift - L.H.

3

MOULDING NLA - 10.5''(267mm) long - Order Ref. 4

4

6654139

MOULDING bulk - sold per foot

5

6718704

DECAL operation

6

6728328

DECAL operation

7

6728539

DECAL Was 6718699 - A

8

6712365

STEP

9

58K120

O-RING Use W/Ref. 18 (NLA/ 6678775 actuator & 7101672 actuator)

9

6686220

O-RING Use W/Ref. 18 (NLA/ 7103129 actuator)

10

25E22

WASHER

11

6725128

ADAPTER actuator - W/ O-ring groove - Use W/Ref. 18 (NLA/ 6678775 actuator)

11

7101705

ADAPTER, ACTUATOR W/O O-ring groove - Use W/Ref. 18 (NLA/ 7103129 actuator & 7101672 actuator)

12

6680410

CONTROLLER plastic - W/ 3-connector plug - Was 6676337 - A

13

6714726

GROMMET

14

6718706

DECAL, WARNING raising cab

15

6733292

HARNESS, ACS

16

17C616

BOLT 5

17

69G436

BOLT

18

ACTUATOR NLA - Use W/Ref. 9 (58K120 O-ring) & Ref. 11 (6725128 adapter) - Order 7101672 actuator & Ref. 11 (7101705 adapter) - Was 6678775 - A

18

ACTUATOR NLA - W/Ref. 9 (6686220 O-ring) - Use W/Ref. 11 (7101705 adapter) - Was 7103129 - A

18

7101672

ACTUATOR W/Ref. 9 (58K120 O-ring) - Use W/Ref. 11 (7101705 adapter)

19

7108236

PIN Was 6718506 - A

20

6717393

LEVER throttle
