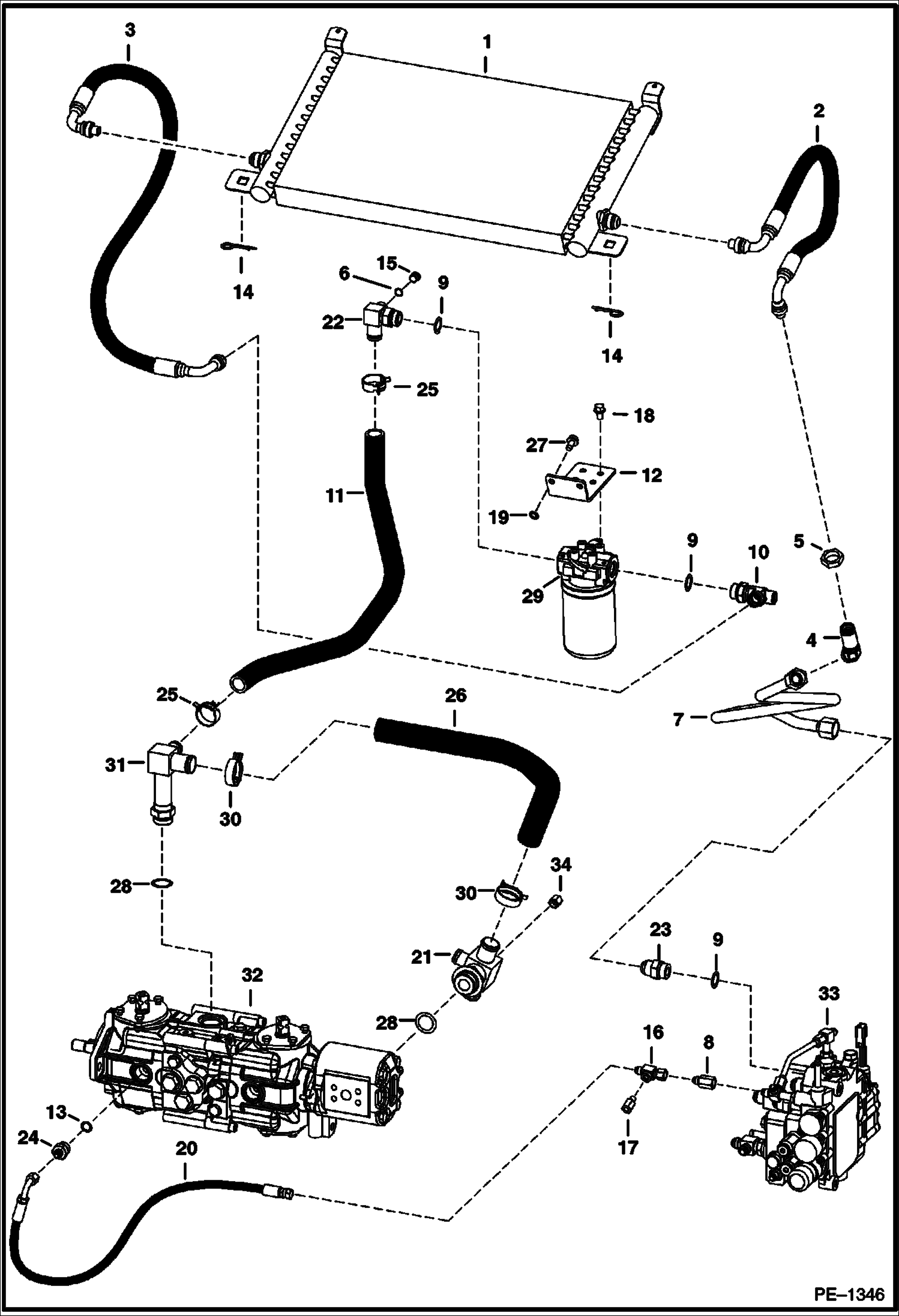

Запчасти Bobcat 800s HYDROSTATIC CIRCUITRY (W/Cooler) HYDROSTATIC SYSTEM

1

6678194

COOLER oil - Was 6675587 - A

1

6674798

REPAIR KIT Consists of Retaining Ring (1), Back-up Ring (1) & O-Ring (1)

2

6676150

HOSE

3

6675830

HOSE

4

6676025

ELBOW

4

6690949

O-RING

4

6690949

O-RING

5

86F8

NUT 5

6

95K6

O'RING tapered boss face

7

6729608

TUBELINE

8

6672766

CHECK VALVE

9

99K12

O RING tapered boss face

9

79K12

O RING 10 flat boss face

10

6675778

TEE W/Ref. 9

10

6690949

O-RING

10

6690949

O-RING

11

6719319

HOSE

12

6719446

MOUNT

13

99K10

O'RING tapered boss face

14

1318565

COTTER PIN

15

90KV5

PLUG W/Ref. 6

16

6718660

TEE

17

6563922

SNUBBER

18

35C612

BOLT

19

6E6

WASHER

20

6725090

HOSE

21

6718882

TEE W/Ref. 28

21

97K6

O RING flared end

22

6725032

ELBOW W/Ref. 9

23

15KB1212

FITTING, HYD CONNECTOR W/Ref. 9 - tapered boss face - Was 15KN00008B - A

23

97K12

O'RING flared end

23

15KB1212

FITTING, HYD CONNECTOR W/Ref. 34 - flat boss face

24

ADAPTER NLA - W/Ref. 13- tapered boss face - Was 6717173 - A

24

97K6

O RING flared end

24

15KB0610

FITTING, HYD CONNECTOR W/Ref. 13 - tapered boss face

25

5HM35

HOSECLAMP constant tension

26

6729484

HOSE

27

84G3712

BOLT 5

28

99K16

O-RING

29

6661247

FILTER See Illustration HYDROSTATIC OIL FILTER/ C2818

29

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long

30

5HM42

HOSECLAMP

31

6717186

CROSS W/Ref. 28

32

PUMP See Illustration HYDROSTATIC PUMP/ D2427 See Illustration HYDROSTATIC PUMP/ B17765

33

VALVE See Illustration HYDRAULIC CONTROL VALVE/ MS1617

34

36K5

CAP 9/16 ''
