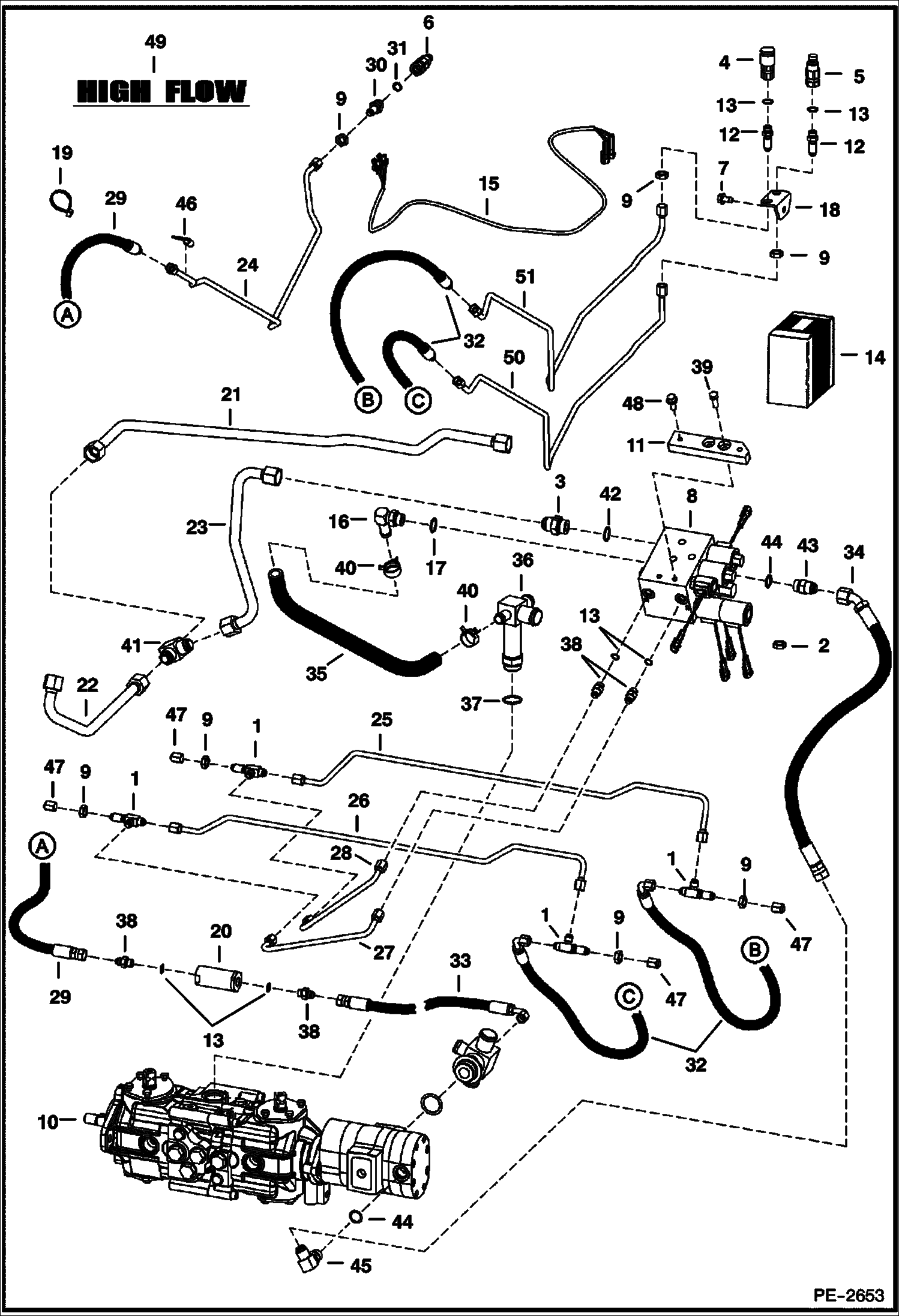

Запчасти Bobcat 800s HIGH HORSEPOWER HYDRAULICS HIGH FLOW HYDRAULICS

1

TEE NLA - Was 6719298 - A

1

97K6

O RING flared end

1

91K5

TEE

2

59D8

NUT 5

3

6659459

CHECK VALVE W/Ref. 42

4

6667803

COUPLER, FF FEMALE

5

6667804

COUPLER, FF MALE

6

6667806

COUPLER male

7

84G3712

BOLT 5

8

6669203

VALVE See Illustration HIGH HORSEPOWER HYDRAULICS/ TS1434R - select

9

86F5

NUT

10

PUMP See Illustration HYDROSTATIC PUMP/ D2427 See Illustration HYDROSTATIC PUMP/ B17765

11

6705471

MOUNT valve

12

6716089

CONNECTOR bulkhead - W/Ref. 13

12

97K6

O RING flared end

13

99K6

O RING tapered boss face

14

6727739

KIT See Illustration ELECTRICAL CONTROLS KIT/ TS2118 ATTACHMENT CONTROLS - Was 6719431 - A

15

6718645

HARNESS

16

6717885

ELBOW W/Ref. 17

17

79K10

O RING 10

18

6725959

BRACKET

19

6610510

TIE

20

6661022

FILTER, OIL HYD IN-LINE

21

6718384

TUBELINE

22

6718385

TUBELINE

23

6718386

TUBELINE

24

6718436

TUBELINE

25

6718552

TUBELINE

26

6718553

TUBELINE

27

6718554

TUBELINE

28

6718555

TUBELINE

29

6725435

HOSE

30

6726479

ADAPTER bulkhead - W/Ref. 31 - Was 6711628 - A

30

97K6

O RING flared end

31

99K8

O-RING tapered boss face

32

6718853

HOSE

33

6737648

HOSE Was 6725436 - A

34

6718856

HOSE

35

6718857

HOSE

36

6719133

TEE W/Ref. 37

37

97K16

O-RING

38

15KB0606

FITTING, HYD CONNECTOR W/Ref. 13

38

97K6

O RING flared end

39

17C616

BOLT 5

40

5HM29

HOSECLAMP Was 5HM00027B - A

41

10K8

TEE W/Ref. 42 - Was 10KN00008B - A

41

97K12

O'RING flared end

42

99K12

O RING tapered boss face

43

15KB1010

FITTING, HYD CONNECTOR W/Ref. 44 - Was 15KN00007B - A

43

97K10

O-RING 10 flared end

44

99K10

O'RING tapered boss face

45

17KB1010

FITTING, HYD ELBOW W/Ref. 44 - Was 17KV-7 - A

45

97K10

O-RING 10 flared end

46

30H62

CLIP insulated

47

36K5

CAP

48

35C614

BOLT

49

6727913

DECAL high flow

50

6725962

TUBELINE

51

6725963

TUBELINE
