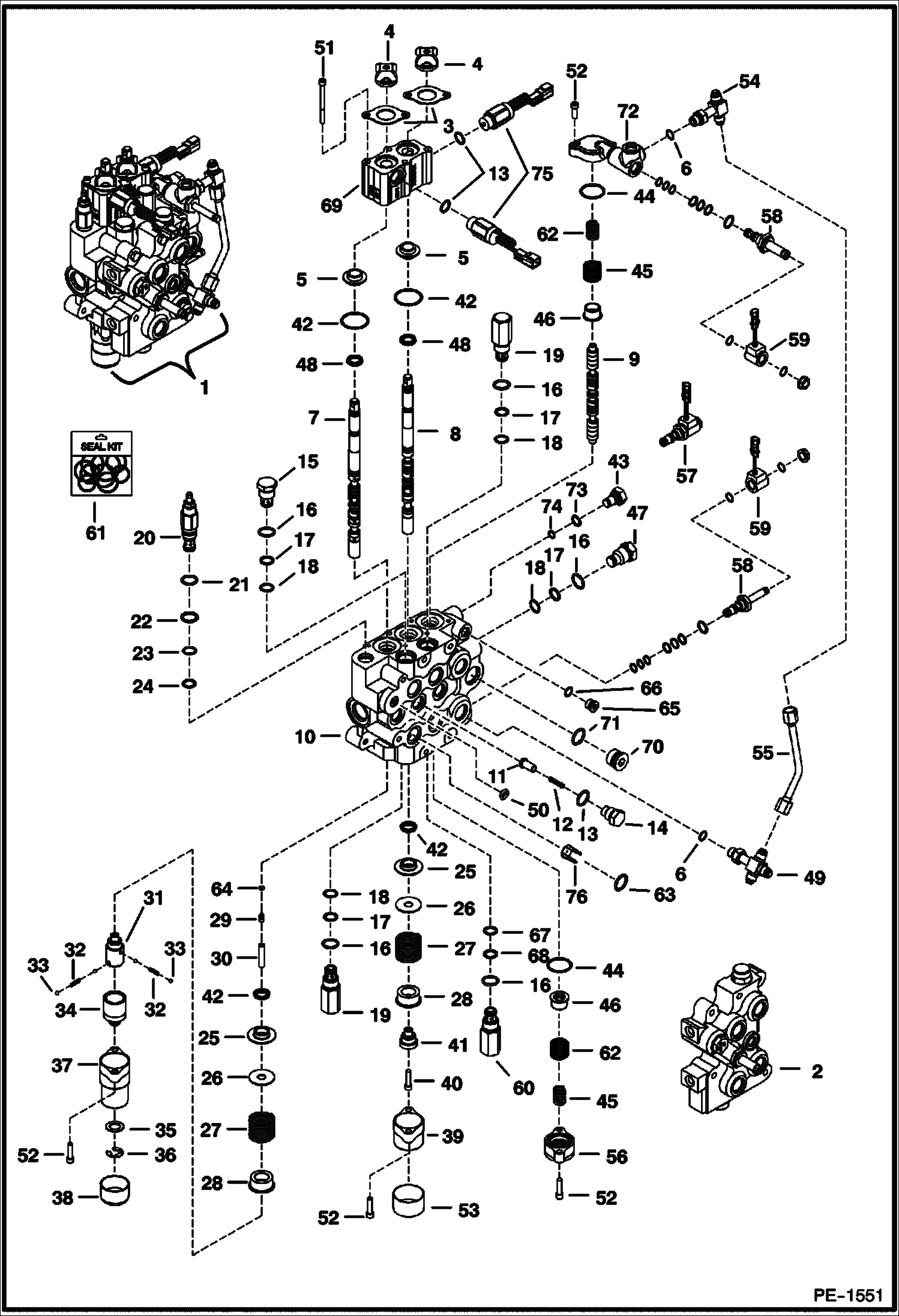

Запчасти Bobcat 800s HYDRAULIC CONTROL VALVE (Spool Lock)(W/BICS Control Valve) HYDRAULIC SYSTEM

1

VALVE See BTI336 - NLA - valve is minus all fittings, relief valves, anti-cavitation valves, solenoid coils & solenoid spools - remove & use existing parts from old valve or order new parts as needed

2

6628571

VALVE ASSY See Illustration BICS CONTROL VALVE/ TS1365

3

6589564

RETAINER

4

6587763

BOOT

5

7202038

BUSHING, ALIGNMENT Also Order 82K019 alignment O-ring - Was 6805102 - A

6

99K6

O RING

7

6814511

SPOOL, LIFT

8

6815152

SPOOL, TILT

9

6588074

SPOOL auxiliary - SEE NOTE

10

BODY NSS

11

6592115

SEAT load check

12

6592117

SPRING, LOAD CHECK

13

79K8

O RING 10

14

6592116

NUT load check

15

6667549

VALVE anti-cavity check - W/Ref. 16-18

16

79K10

O RING 10

17

80K14

BACK-UP WASHER Was 73K000014B - B

18

6677106

O-RING

19

6679757

VALVE port relief - W/Ref. 16-18 - 4000 PSI

20

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A

21

58K017

O-RING 10

22

6665569

WASHER back-up

23

25K20016

O RING 10

24

6665570

RING glide

25

6595663

BUSHING

26

7211397

WASHER, SPRING Was 6587523 - A

27

6587580

SPRING

28

6592100

COLLAR

29

6596807

PLUG plastic - 0.46'' long

30

6586918

SCREW

31

6587575

ADAPTER

32

6592107

SPRING

33

6592105

BALL

34

6531270

SLEEVE, DETENT

35

6592098

WASHER

36

799119

RING

37

6589226

COVER, END 0.63'' flange

38

6660644

CAP

39

7101345

BONNET, DETENT HYD VALVE

40

30G416

BOLT

41

6592109

ADAPTER

42

6683274

SEAL, SPOOL 10

43

6805651

BLOCK W/Ref. 73 & 74

44

58K124

O RING 10

45

6596332

SPRING

46

7108780

SLEEVE Was 6595951 - A

47

6592720

PLUG W/Ref. 16-18

48

1K127

O-RING 10 Was 93K127 - A

49

6727931

TEE W/Ref. 6

50

55K204

O RING 10

51

29G444

BOLT

52

29G416

BOLT 1'' long

53

6662848

CAP

54

6805696

TEE W/Ref. 6 - tapered boss face

54

97K6

O RING flare end

55

6806496

TUBELINE

56

6588781

END CAP

57

SOLENOID NLA - Order Ref. 58 & 59

58

6676249

STEM, VALVE SOLENOID Was 6666616 - B

58

6679961

NUT coil

58

6586459

SEAL KIT

59

6717706

COIL, 10 VOLT pwm - 10 volt - w/nut

59

6676566

NUT

60

6678552

VALVE port relief & anti-cav.-W/Ref. 16 - 3500 PSI - use in tilt cylinder base end port

60

6673904

SEAL KIT W/Ref. 16, 67, 68

61

6816252

SEAL KIT two spool - Ref. 4, 29, 42, 48, 51 & 64

61

6816253

KIT, SEAL complete - Ref. 4, 13, 16-18, 21-24, 42, 44, 48 & 50-52 - also Order 6816252 seal kit

61

6632279

KIT, SEAL main relief - Ref. 21-24

61

6809425

SEAL KIT Ref. 13 & 16-18 - Was 6586461 - A

62

6595131

SPRING .72'' OD

63

55K212

O RING 10

64

54K20002

O'RING 10

65

90KV5

PLUG W/Ref. 66

66

95K6

O'RING

67

O-RING NSS - Order Ref. 60 kit

68

O-RING NSS - Order Ref. 60 kit

69

6812031

BLOCK lift an tilt lock

70

90K8

PLUG W/Ref. 71 - Was 90KV00008B - A

71

95K12

O-RING

72

6806561

PLUG aux lock - W/Ref. 73 & 74

73

79K7

O RING 10

74

25K20012

O RING 10

75

6676029

SOLENOID, LOCK SPOOL 127 mm (5'') wire - W/Ref. 13 - Was 6677383 - B,D

76

6800124

ORIFICE
