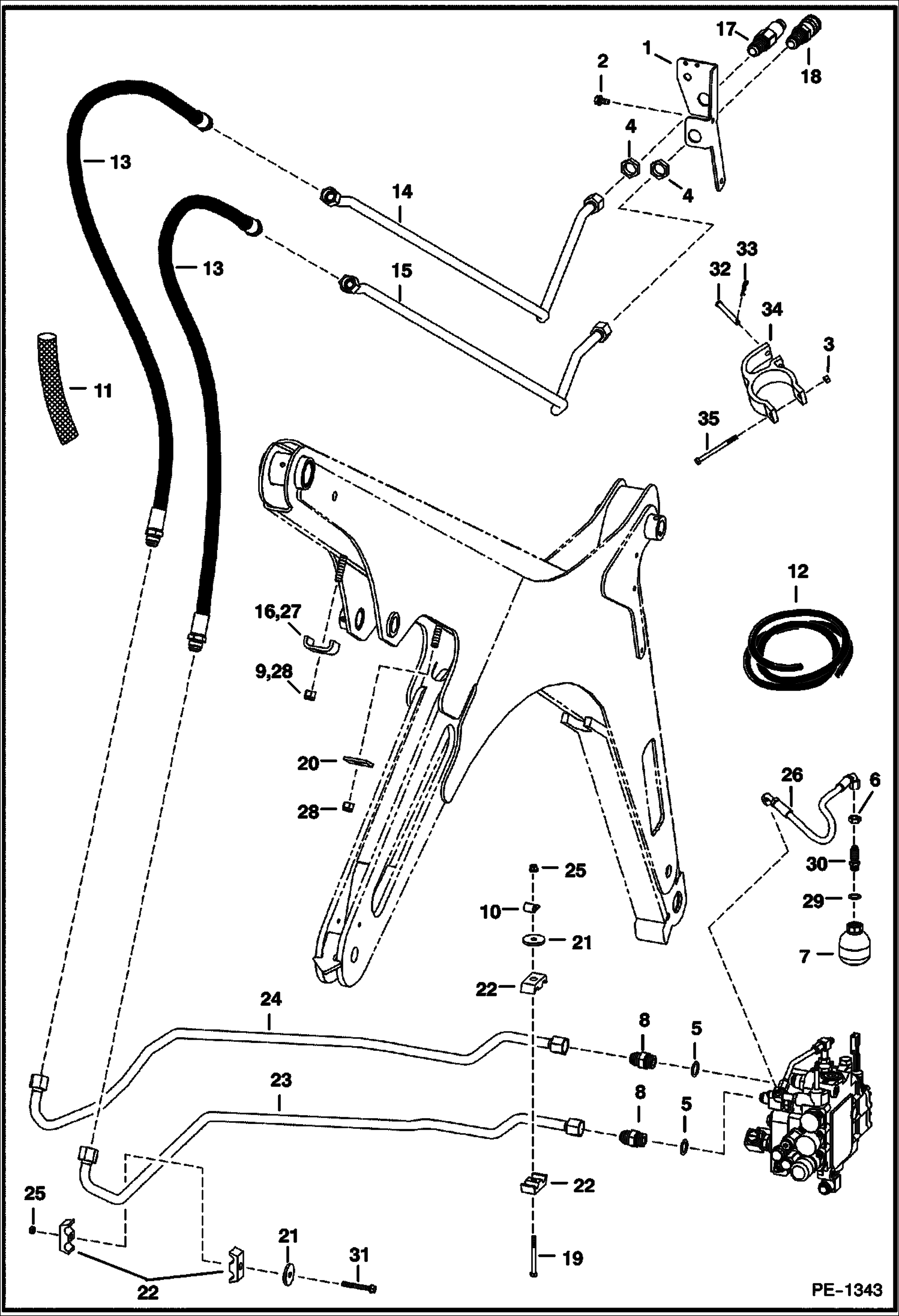

Запчасти Bobcat 800s AUXILIARY HYDRAULICS S/N & BEL. HYDRAULIC SYSTEM

1

6716808

BRACKET

2

84G3712

BOLT 5

3

95D5

NUT

4

86F8

NUT 5

5

99K12

O RING tapered boss face

5

79K12

O RING 10 flat boss face

6

86F5

NUT

7

6676923

ACCUMULATOR

8

ADAPTER NLA - W/Ref. 5 - Order 6812646 - tapered boss face - Was 15KN00008B - A

8

97K12

O'RING flared end

8

15KB1212

FITTING, HYD CONNECTOR W/Ref. 5 - Flat boss face

9

95D6

NUT

10

30H31

CLAMP 10

11

SHIELD NLA - 70.75'' (1797,1 mm) long - Order Ref. 12

12

6651436

HOSE COVER bulk - 2.38'' (60,5 mm) ID - Sold Per Foot

13

6729163

HOSE

14

6718056

TUBELINE

15

6718057

TUBELINE

16

6718754

CLAMP

17

6676445

COUPLER male

17

6679841

SEAL Was 6672026 - A

18

6676447

COUPLER female

19

17C552

BOLT

20

6553709

WASHER rectangular

21

872229

WASHER

22

6592506

CLAMP

23

6718687

TUBELINE

24

6718688

TUBELINE

25

85D5

NUT 5

26

6727971

HOSE

27

6800262

CLAMP

28

59D8

NUT 5

29

99K6

O RING tapered boss face

30

6716089

CONNECTOR W/Ref. 29

30

97K6

O RING flared end

31

35C540

BOLT

32

6541981

PIN clevis

33

1306637

CLIP

34

6731008

CLAMP Was 6713937 - A

35

17C560

BOLT
